Home > All Collections > Others > Power Splitter > 5~300MHz SMA Female 3 Way Power Divider 50 Ohm Wide-Band Signal Splitter
  • 5~300MHz SMA Female 3 Way Power Divider 50 Ohm Wide-Band Signal Splitter
  • 5~300MHz SMA Female 3 Way Power Divider 50 Ohm Wide-Band Signal Splitter

5~300MHz SMA Female 3 Way Power Divider 50 Ohm Wide-Band Signal Splitter

No.MPD-5/300-3S

CONTACT US
  • 5~300MHz SMA Female 3 Way Power Divider 50 Ohm Wide-Band Signal Splitter
Description

Specifications

Frequency Range:5～300 MHz

Insertion Loss ≤ 9.5 dB

Input Port VSWR:Typ.1.11 / Max.1.2

Output Port VSWR:Typ.1.11 / Max.1.2

Isolation: Min.8.9dB

Amplitude Balance:± 0.2dB

Phase Balance :±2°

Impedance:50 Ohms

Input/Output Connectors:SMA-Female

Power Rating:2W

Operation Temperature: -35℃ ~ +75℃

Surface Finishing

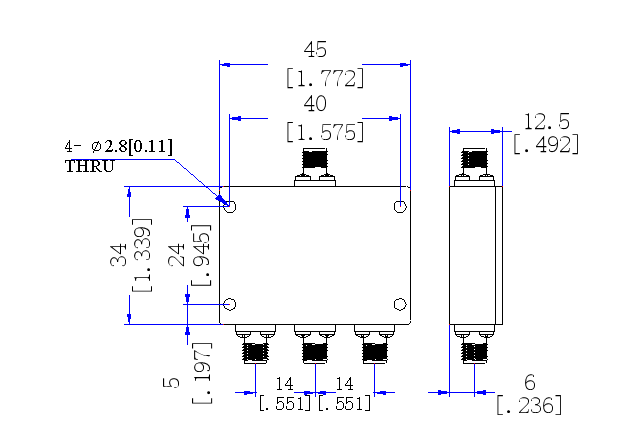

Outline Dimensions:34*45*12.5（mm）

Weight:50（g）
