Specifications
Frequency Range:5～500 MHz
Insertion Loss ≤ 3.0dB（Excluding theoretical loss:12.0dB）
Input Port VSWR:Typ.1.18 / Max.1.40
Output Port VSWR :Typ.1.14 / Max.1.40
Isolation Typ.:26dB / Min.18dB
Amplitude Balance :±0.4dB
Phase Balance :±5°
Impedance:50 Ohms
Input/Output Connectors :SMA-Female
Power Rating Splitter:1W; Combiner:0.5W
Operation Temperature: -35℃ ~ +75℃
Surface Finishing:Sandblasting natural color conductive oxide

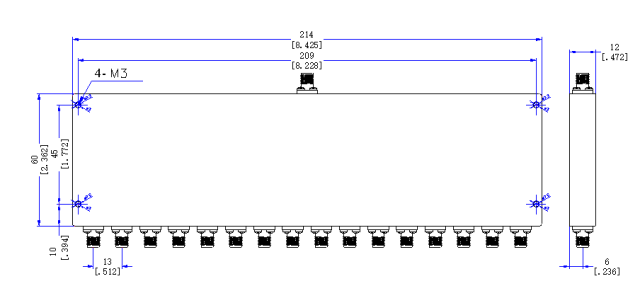

Outline Dimensions:60*214*12（mm）
Weight:（g）
