Specifications
Frequency Range:5～500 MHz
Insertion Loss ≤ 2.0 dB（Excluding theoretical loss:9.0 dB）
Input Port VSWR ≤ 1. 35: 1
Output Port VSWR ≤ 1. 25: 1
Isolation:Typ.26dB / Min.20dB
Amplitude Balance :± 0.5dB
Phase Balance:±5°
Impedance:50 Ohms
Input/Output Connectors:SMA-Female
Power Rating Splitter:1W; Combiner:0.5W
Operation Temperature :-35℃ ~ +75℃
Surface Finishing

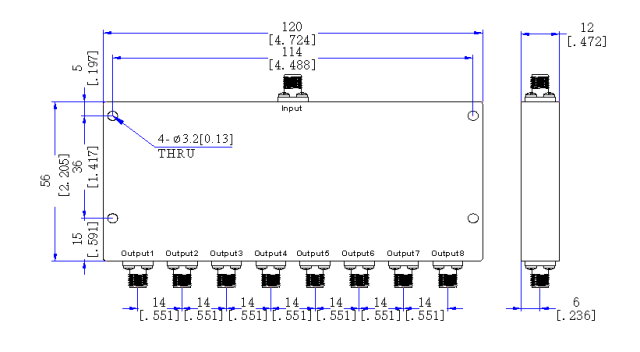

Outline Dimensions:56*120*12（mm）
Weight:260（g）
