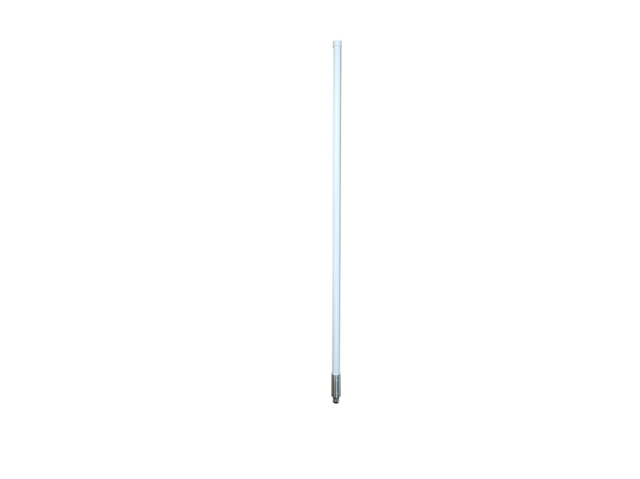

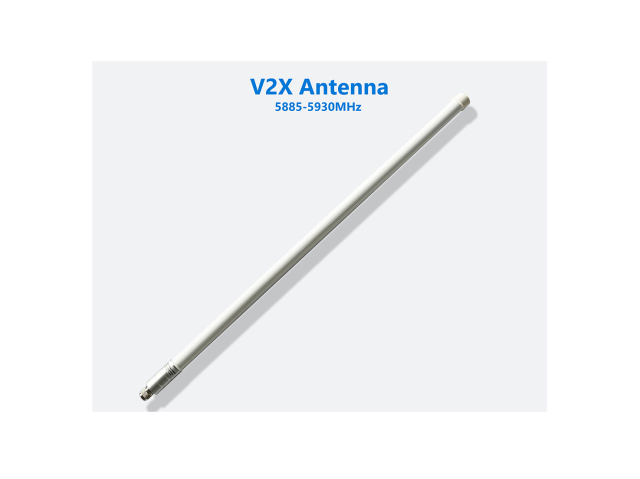

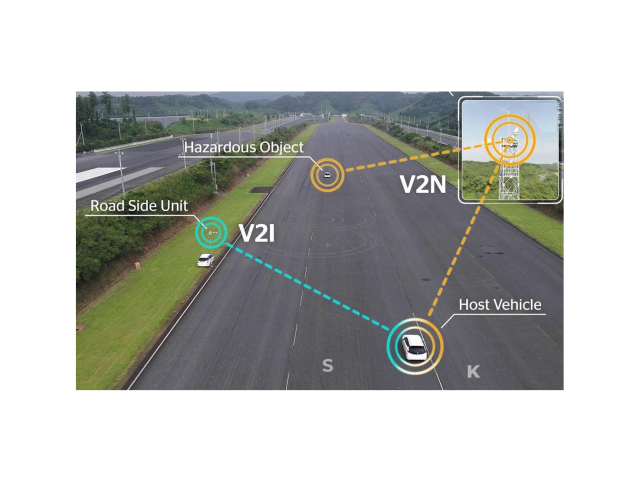

V2X fiberglass product is a type of fiberglass product that uses V2X technology. V2X refers to the exchange of information between vehicles and the outside world. By integrating information obtained from sensors such as global positioning systems, cameras, and radars, V2X provides real-time data on road conditions, traffic signals, pedestrian positions, etc., thereby improving driving safety and traffic efficiency.
• Protective performance
In order to adapt to outdoor environments, fiberglass V2X antennas usually have certain protective properties, such as waterproof, dustproof, anti-corrosion, etc., to ensure their long-term stable operation.
• High mechanical strength
Due to the need to be installed on the outside of the vehicle, fiberglass V2X antennas usually have high mechanical strength and durability, and can withstand vibrations and environmental impacts during vehicle operation.
• Easy installation
Generally, it is installed on the top, side or other suitable positions of the vehicle through mounting brackets or fixing devices to ensure good signal reception and radiation.
| Parameter | |
| Frequency |
5885-5930MHz |
| Impedance | 50Ω |
| VSWR | ≤2.0 |
| Max. Efficiency | 88％ |
| Beamwidth | 360° |
| Radiation pattern | Omni-directional |
| Connector | N-J |
| Mechanical Parameter | |
| Length | 580±10mm |
| Salt Spray Test | 96H |
| Environment Parameter | |
| Operation Temperature | -20℃~65℃ |
| Storage Temperature | -20℃~75℃ |
Installation suggestion
we recommend that you install the antenna in an open place, and keep it as vertical as possible. Install the antenna in the highest place outdoors would help you to get a better signal. However, if used indoors, it is recommend to place them near a window.
 |
 |

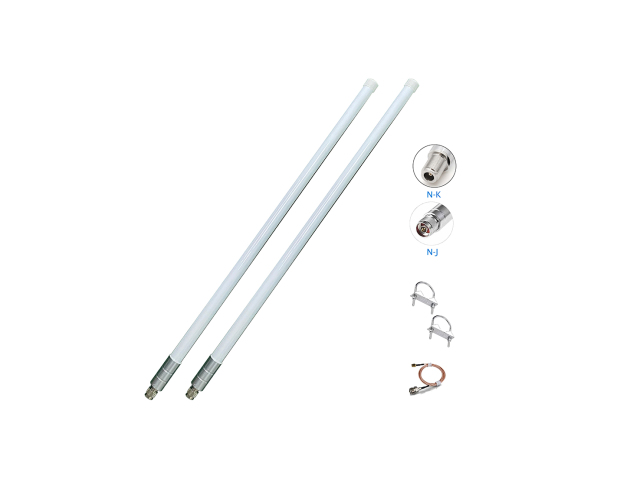

| Optional connector and accessories are availiable. Please share your requirement with us to get the best offer. | The fiberglass antenna are speciall suitable for outdoor installation. It can work well with your Helium miner hotsport, internet gateway and any long range communication systems and euiqpments. |
VLG glass antenna series
| Model | 2dB-2.4 | 4dB-2.4 | 6dB-2.4 | 4dB-5.8 | 6dB-5.8 | 6dB-2.4/5.8 |
| Frequency Range | 2400-2500MHz | 2400-2500MHz | 2400-2500MHz | 5150-5850MHz | 5150-5850MHz | 2400-2500/5150-5850MHz |
| Gain | 2dBi | 4±1dBi | 6.0±1 dBi | 4±1dBi | 5.0±1 dBi | 4.0dBi /6.0dBi |
| VSWR | ≤1.5 | ≤2.0 | ≤2.0 | ≤2.0 | ≤2.0 | ≤3.0 |
| ovality(dB) | ≤±2 | ≤±2 | ≤±2 | ≤±2 | ≤±2 | ≤±2 |
| Impedance | 50Ω | 50Ω | 50Ω | 50Ω | 50Ω | 50Ω |
| Max input power | 50W | 50W | 50W | 50W | 50W | 50W |
| Dimensions（mm） | ɸ20*215 | ɸ20*220 | ɸ20*350 | ɸ20*185 | ɸ20*185 | ɸ20*270 |
| Connector type | N-K/J | N-K/J | N-K/J | N-K/J | N-K/J | N-K/J |
| Radome material | Fiberglass | Fiberglass | Fiberglass | Fiberglass | Fiberglass | Fiberglass |
