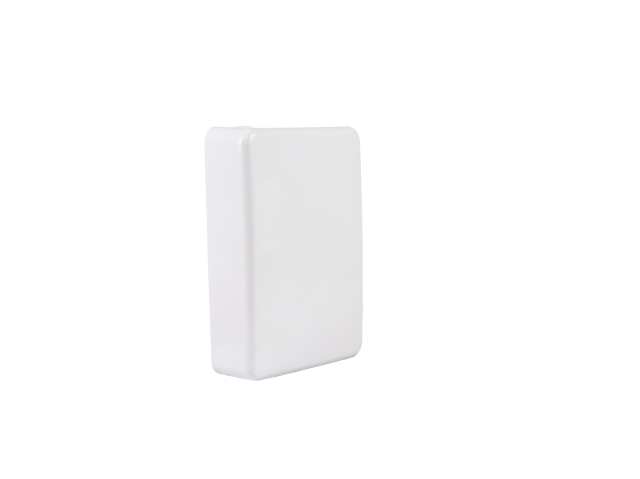

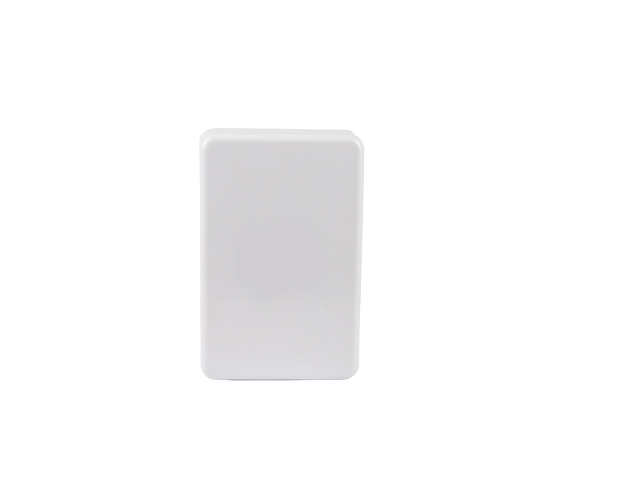

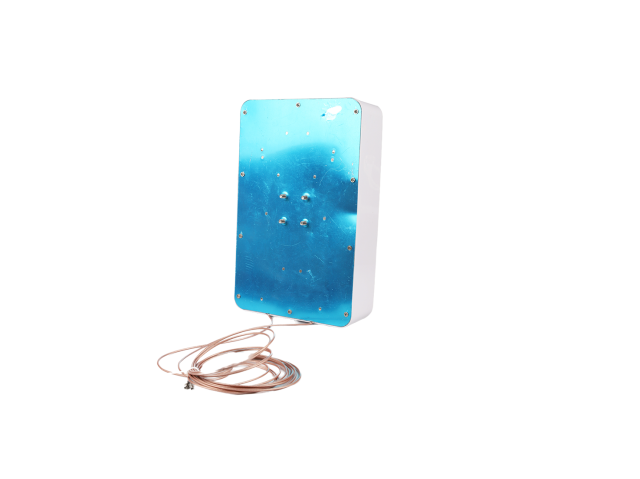

The VLG 600-4200MHz Panel Antenna is a high-gain, wideband solution designed to enhance cellular connectivity for 4G and 5G networks. This weatherproof antenna operates across multiple frequency bands (600-960MHz, 1400-2700MHz, and 3300-4200MHz) to support a variety of cellular applications. Its directional panel design offers increased signal strength in the desired direction, ideal for applications requiring long-range communication or overcoming signal weaknesses.
• Wide Frequency Range (600-4200MHz)
This antenna operates across a broad spectrum of frequencies, ensuring compatibility with most major carriers' current 4G networks and future 5G deployments. No need to worry about upgrading your antenna as technology evolves.
• Extended Coverage and Improved Reception
Compared to omnidirectional antennas, the VLG panel antenna boasts a significantly higher gain (8 dBi). This translates to a stronger signal, extending cellular coverage and improving reception, especially in areas with weak signal strength.
• Increased Flexibility and Potential Speed Boost
The antenna features two TS-9 connector ports. This allows you to connect two separate cellular devices simultaneously or leverage MIMO technology for potentially faster data transfer speeds, depending on your network and device capabilities.
| Feature | Specification |
| Brand | VLG |
| Frequency Range (MHz) | 600-4200 |
| VSWR | ≤ 2.0 |
| Impedance (Ω) | 50 |
| Gain (dBi) |
8 (Overall) 3 (600-960 MHz) 6 (1400-2700 MHz) 8 (3300-4200 MHz) |
| Beamwidth (°) | Horizontal > 60°, Vertical > 30° |
| Polarization | ±45° Cross Polarization |
| Lightning Protection | DC Ground |
| Dimensions (mm) | 320 x 210 x 80 |
| Number of Inputs | 2 |
| Connector Type | TS-9 |
| Mount Included | Yes (Wall/Pole) |
| Waterproof Rate | IP65 |
| Radome Material | UV-protected Plastic |
| Operating Temperature (°C) | -40 to +55 |
