Specifications
Frequency Range:6000～26500 MHz
Insertion Loss ≤ 0.6 dB（Excluding theoretical loss:3.0 dB）
Input Port VSWR:Typ.1.28 / Max.1.65
Output Port VSWR :Typ.1.26 / Max.1.50
Isolation:Typ.22dB / Min.16dB
Amplitude Balance :±0.3dB
Phase Balance :±3°
Impedance:50 Ohms
Input/Output Connectors :SMA-Female
Power Rating Splitter:20W; Combiner:1W
Operation Temperature:-45℃ ~ +85℃
Surface Finishing:Black paint

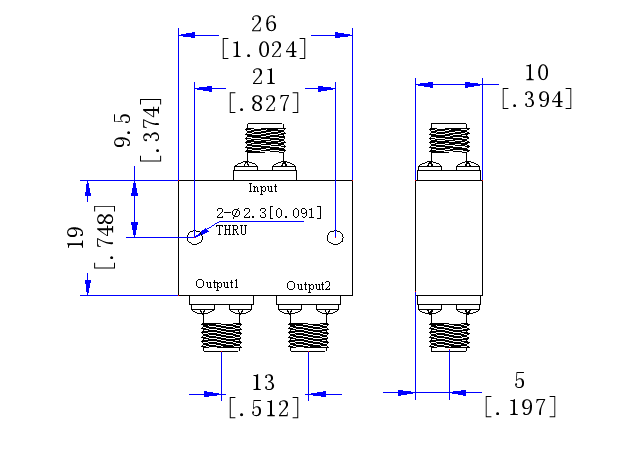

Outline Dimensions:26*19*10（mm）
Weight:21（g）
