Specifications
Frequency Range:600～12000 MHz
Insertion Loss ≤ 1.0dB（Excluding theoretical loss:3.0 dB）
Input Port VSWR:Typ.1.26 / Max.1.4
Output Port VSWR:Typ.1.18 / Max.1.3
Isolation:Typ.24dB / Min.20dB
Amplitude Balance:±0.3dB
Phase Balance:±4°
Impedance:50 Ohms
Input/Output Connectors :SMA-Female
Power Rating:Splitter:20W; Combiner:1W
Operation Temperature:-45℃ ~ +85℃
Surface Finishing:Black paint

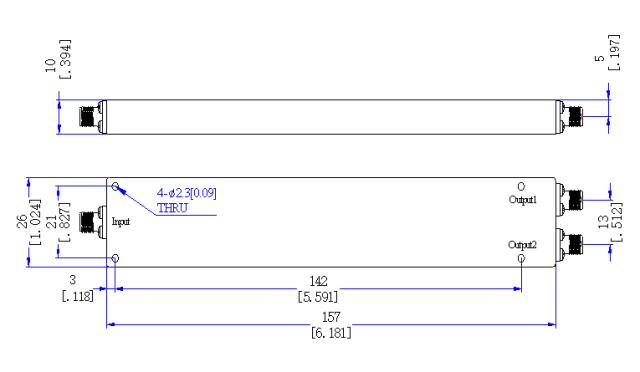

Outline Dimensions:157*26*10（mm）
Weight:120（g）
