Specifications
Frequency Range:600～40000 MHz
Insertion Loss ≤ 5.0dB（Excluding theoretical loss:6.0 dB）
Input Port VSWR:Typ.1.28 / Max.1.70
Output Port VSWR:Typ.1.26 / Max.1.60
Isolation ≥16dB
Amplitude Balance:±0.5dB
Phase Balance:±7°
Impedance:50 Ohms
Input/Output Connectors:2.92mm-Female
Power Rating:Splitter:20W; Combiner:1W
Operation Temperature:-45℃ ~ +85℃
Surface Finishing:Black paint

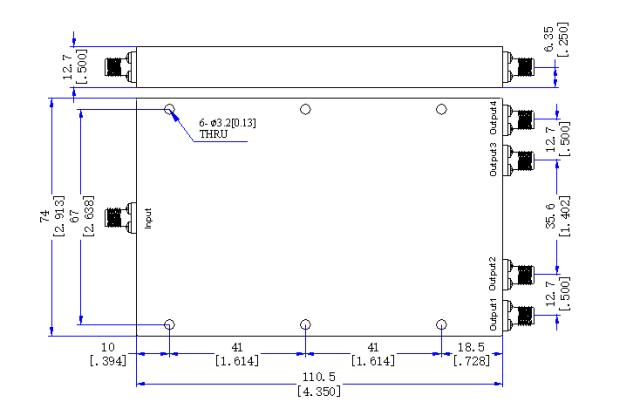

Outline Dimensions:110.5*74*12.7（mm）
Weight:330（g）
