FrequencyRange: 600-6000MHz
Max Gain(dBi): ≤6.4dBi
VSWR: ≤3.0
Polarization: Linear
Horizontal Beamwidth(0°): 360°
Input Impedance（Ω）: 50Ω
Input connector type: N-Male （Customizable）

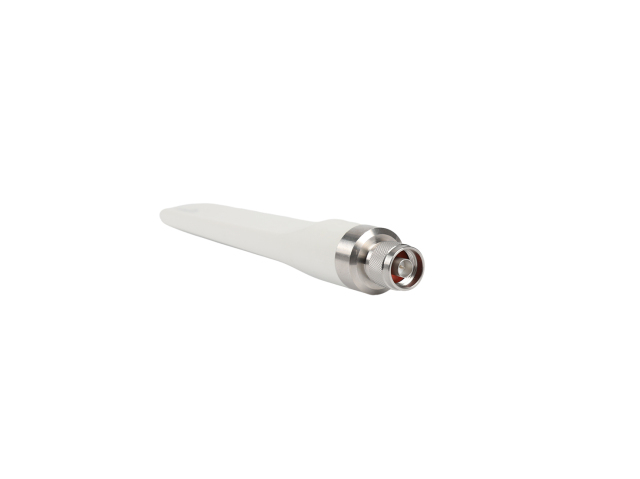

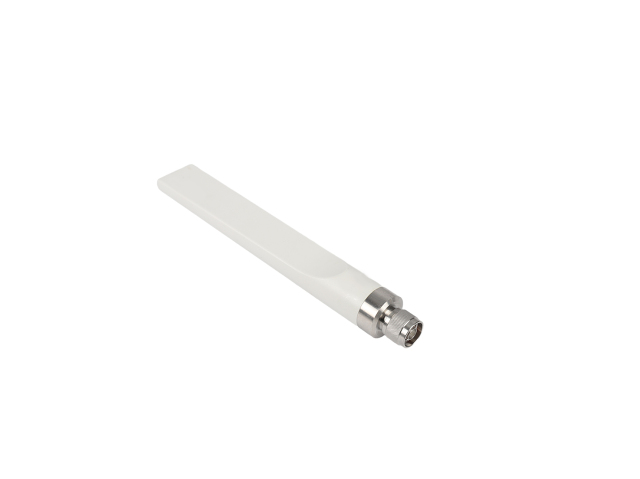

The 6dBi 5G Outdoor Omni Antenna is designed to provide robust and reliable connectivity across a wide frequency range of 600-6000MHz. Engineered for outdoor use, this antenna offers a linear polarization with a 360° horizontal beamwidth, ensuring comprehensive coverage in all directions. Its high durability and secure connection features make it an ideal solution for enhancing cellular signal strength in various environments.
• Durability
N-Male connectors are known for their ability to withstand harsh outdoor environments. Their weatherproof design makes them ideal for outdoor antenna applications like
• Secure Connection
The threaded coupling mechanism ensures a tight and secure connection between the antenna and the device it's connected to. This minimizes signal loss due to poor connections.
• Impedance Matching
N-Male connectors are designed to provide a good impedance match between the antenna and the cable. This minimizes signal loss and ensures efficient signal transmission.
| Features | Specification |
| Frequency Range | 600-6000MHz |
| Max Gain | ≤ 6.4 dBi |
| VSWR | ≤ 3.0 |
| Polarization | Linear |
| Horizontal Beamwidth (0º) | 360° |
| Input Impedance (Ω) | 50Ω |
| Input Connector Type | N-Male (Customizable) |
| Dimensions | φ29.6 x 221.1mm |
| Casing | PC |
| Temperature Range | -40 ~ 85℃ |
