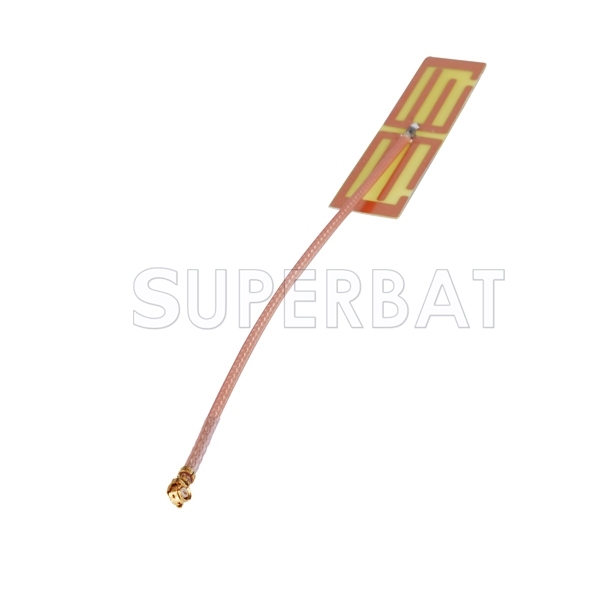

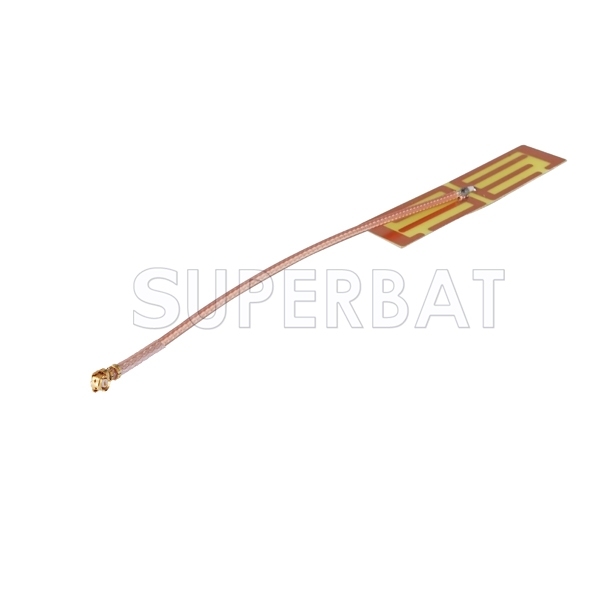

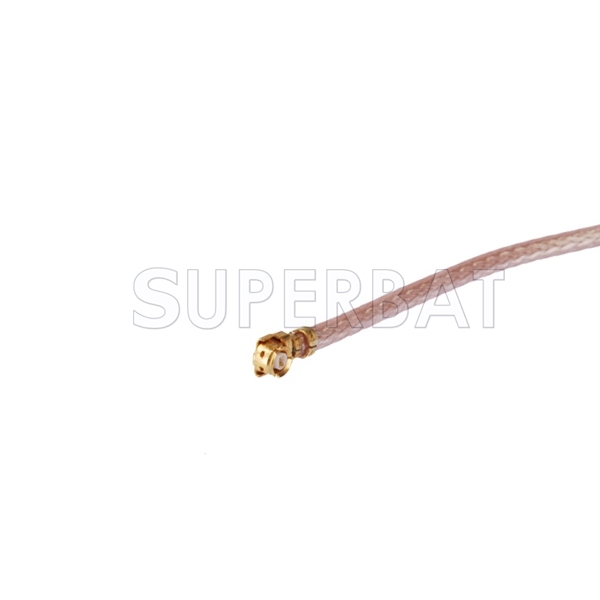

700-2600Mhz 5dbi Multiband PCB Module 3G 4G LTE internal Antenna with U.FL RG178 10cm extended cable

No.4A3-2711-U04RJ-050-10
Antenna Type：Built InNetwork：4G/LTE AntennaFrequency：700-2600MhzConnector Series：IPX/U.flConnector Polarity：StandardConnector Gender：PlugGain：5dbiRadiation：OmnidirectionalV.S.W.R：≤1.5Cable Type：RG178Cable Length：10cmWeight：3g
CONTACT US
  • 700-2600Mhz 5dbi Multiband PCB Module 3G 4G LTE internal Antenna with U.FL RG178 10cm extended cable
  • 700-2600Mhz 5dbi Multiband PCB Module 3G 4G LTE internal Antenna with U.FL RG178 10cm extended cable
  • 700-2600Mhz 5dbi Multiband PCB Module 3G 4G LTE internal Antenna with U.FL RG178 10cm extended cable
Description

Frequency(MHz): 700-2600Mhz
VSWR ≤ 2.0
Gain(dBi): 5dbi
Max Input power(W):50
Input Impedance(Ω):50
Polarization:Vertical
Cable Length: 100mm
Cable Type: RG178

Antenna dimension (L*W)=89.5*18mm

Net Weight:3g
Connector: U.FL (default),

Optional conector: SMA/SSMB/SMB/N/TS9/CRC9/MS147/MCX/MMCX/FME/BNC/TNC/MC-Card..and so on.,please give us notes if you need other connectors!

Storage Temperature:-30°C to+75°C
Operating Temperature:-30°C to+75°C
