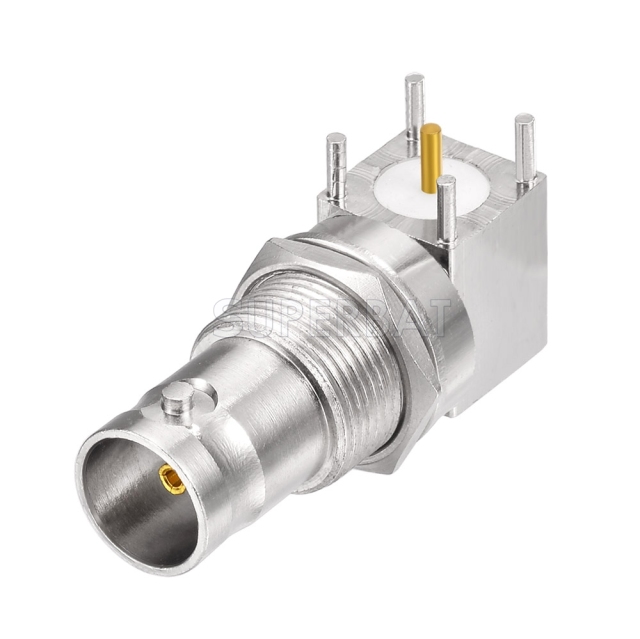

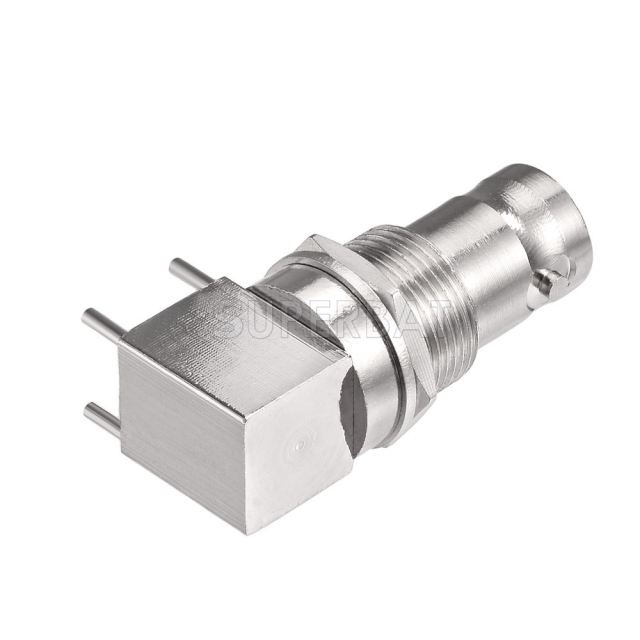

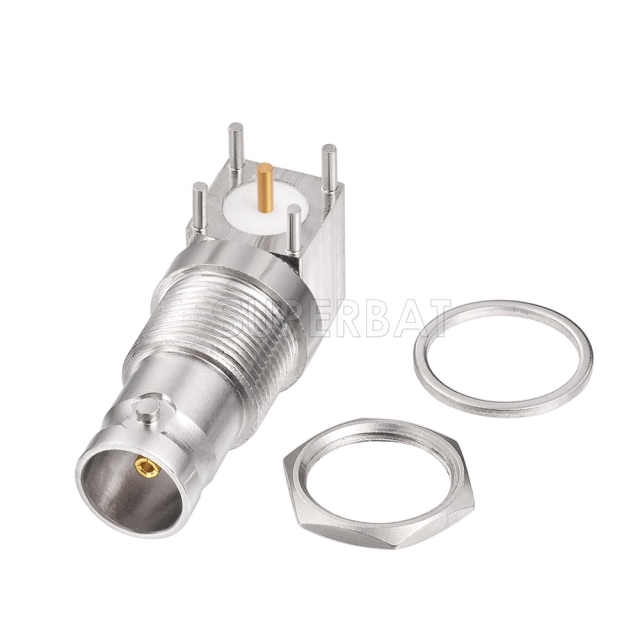

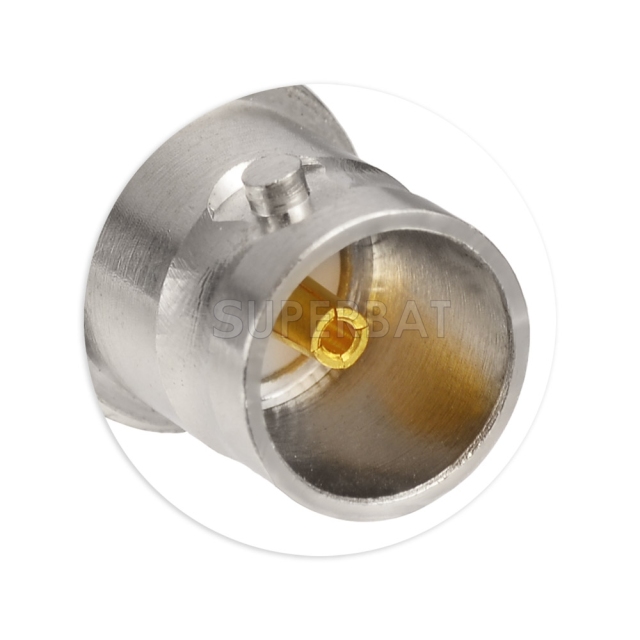

The BNC is a bayonet style connector allowing for quick connect and disconnect with a positive locking mechanism. Mating is achieved with just a quarter turn of the coupling nut. With a classic, dependable design, BNCs are suited to accommodate a large variety of RG and industry standard cables, in a variety of termination styles.
Specification
Impedance: 75 Ohm
Frequency Range: Up to 3 GHz
Gender: Jack Female
Mounting Type: PCB Mount
Termination Method: Through Hole
Body Orientation: Right Angle
Operating Temperature -55 to +155 Deg C
Applications :broadcast, including Ultra High Definition (4K), telecom, instrumentation, security, mil/aero and many others.
