Specifications
Frequency Range:7500～8500 MHz
Insertion Loss ≤ 0.8dB（Excluding theoretical loss:6.0 dB）
Input Port VSWR :Typ.1.16 / Max.1.3
Output Port VSWR :Typ.1.14 / Max.1.2
Isolation:Typ.26dB / Min.18dB
Amplitude Balance:±0.3dB
Phase Balance :±3°
Impedance:50 Ohms
Input/Output Connectors:SMA-Female
Power Rating Splitter:30W; Combiner:2W
Operation Temperature:-45℃ ~ +85℃
Surface Finishing:Black paint

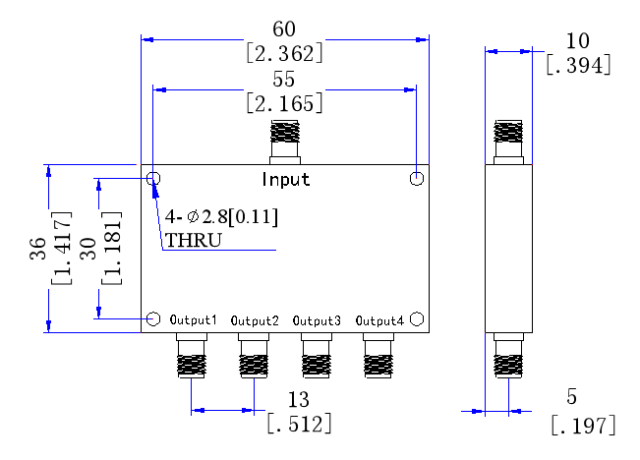

Outline Dimensions:60*36*10（mm）
Weight:58（g）
