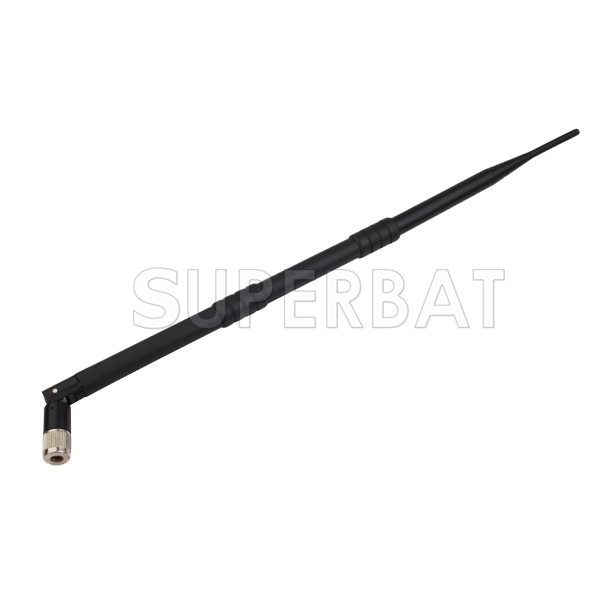

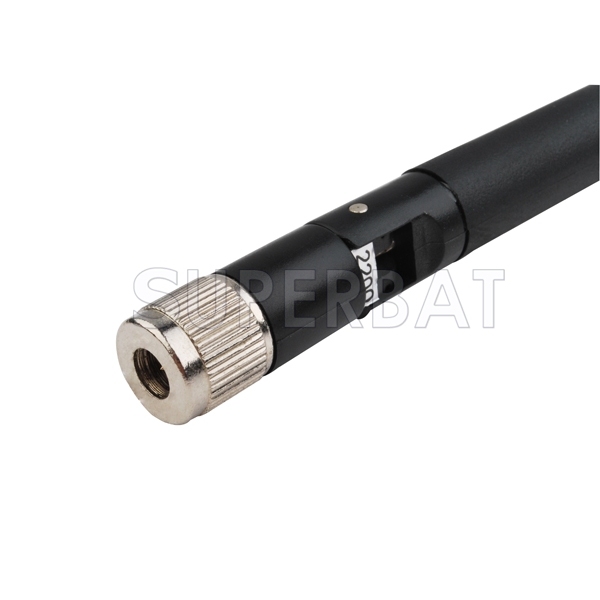

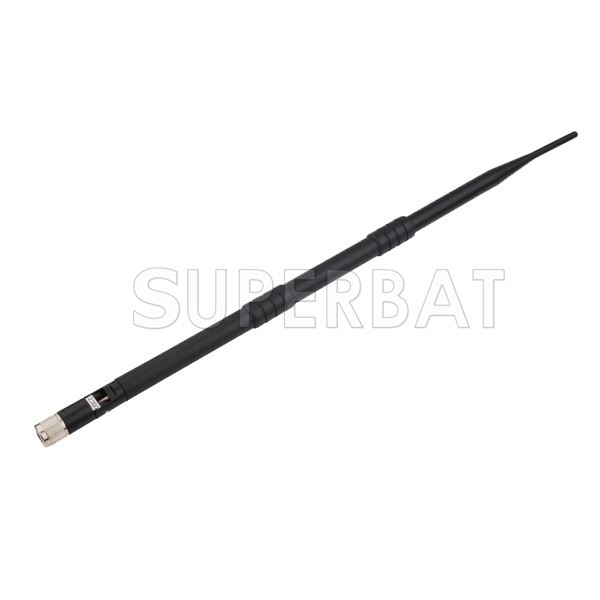

7DBi 3G Omni antenna SMA male for 3G HuaWei Broadband Router &Ericcson W21/W25

No.3A2-1083-S01SP4-070
Antenna Type：Rubber DuckNetwork：3G/UMTS/CDMA2000 AntennaFrequency：1990-2170 MHzConnector Series：SMAConnector Polarity：StandardConnector Gender：PlugGain：7dBiRadiation：OmnidirectionalV.S.W.R：≤1.5Weight：49g
CONTACT US
  • 7DBi 3G Omni antenna SMA male for 3G HuaWei Broadband Router &Ericcson W21/W25
  • 7DBi 3G Omni antenna SMA male for 3G HuaWei Broadband Router &Ericcson W21/W25
  • 7DBi 3G Omni antenna SMA male for 3G HuaWei Broadband Router &Ericcson W21/W25
Description

Frequency Range(MHz) 1990-2170 MHz
VSWR< 1.5 : 1 max
Gain: 7dbi
Impedance 50 Ohm
Polarization:     Vertical
Radiation:     omnidirectional
Diameter: 13.5mm
End connector: SMA plug (male pin)
Colour: black
Working Temperature : -20~+55 deg C
