Using microstrip structures, in-band flatness is good, high isolation, insertion loss is small, standing wave good performance, easy installation, for cellular mobile communications and spread spectrum communications in indoor distribution system.
ELECTRICAL SPECIFICATIONS:

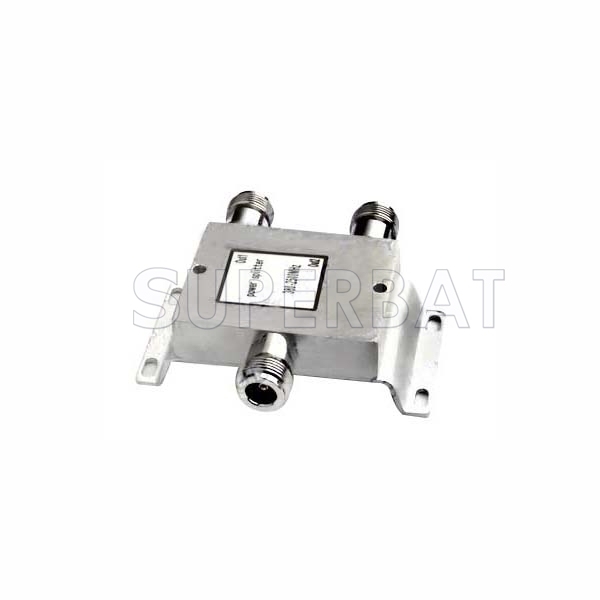

type: 2-way Power Divider
Frequency: 800 ~ 2500MHz
Insertion loss(distribution ratio)-db: ≤3.3
Isolation(dB): ≤27
Nominal Impedance(Ω): 50
VSWR :≤1.3
Max. Power(MAX)(W) :50
connector :N female
Mechanical Characteristics:
Environment temperature -℃ :-30+60
Relative humidity -% :5~95
Size -mm ：95—65—20
Weight：150g
PS. Power splitter box body surface polishing
