Home > All Collections > 800/900/1800/1900 MHz GSM Omni 1.5dbi Antenna SMA Plug straight connector new
  • 800/900/1800/1900 MHz GSM Omni 1.5dbi Antenna SMA Plug straight connector new
  • 800/900/1800/1900 MHz GSM Omni 1.5dbi Antenna SMA Plug straight connector new
  • 800/900/1800/1900 MHz GSM Omni 1.5dbi Antenna SMA Plug straight connector new
  • 800/900/1800/1900 MHz GSM Omni 1.5dbi Antenna SMA Plug straight connector new
  • 800/900/1800/1900 MHz GSM Omni 1.5dbi Antenna SMA Plug straight connector new
  • 800/900/1800/1900 MHz GSM Omni 1.5dbi Antenna SMA Plug straight connector new

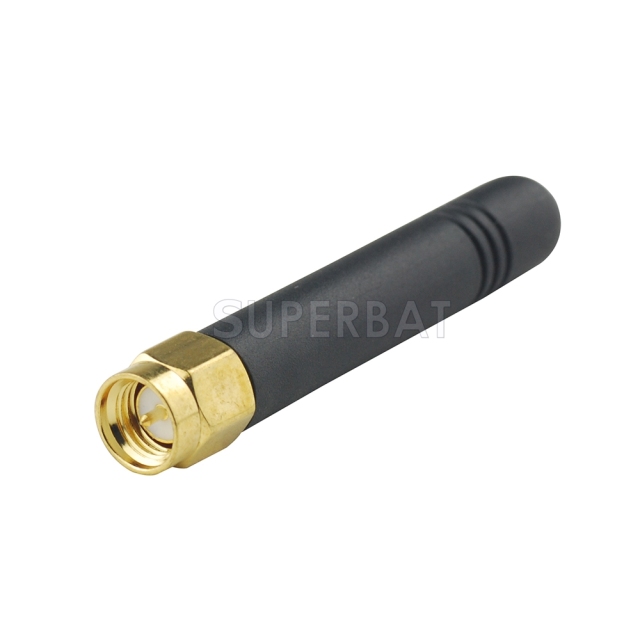

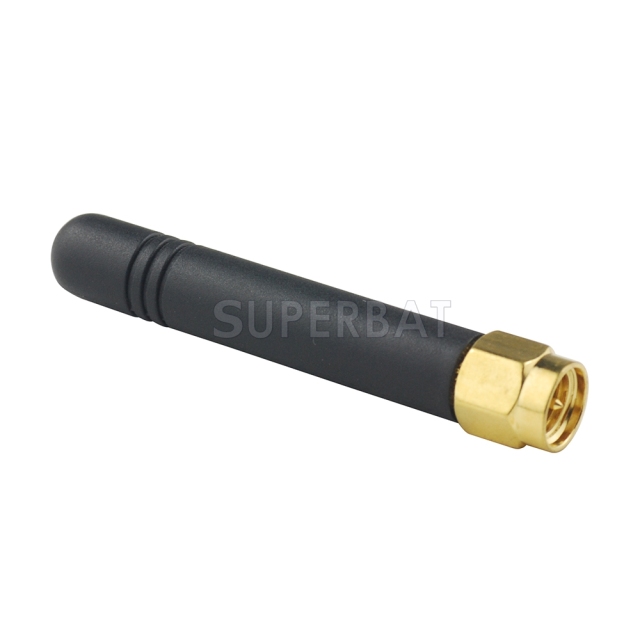

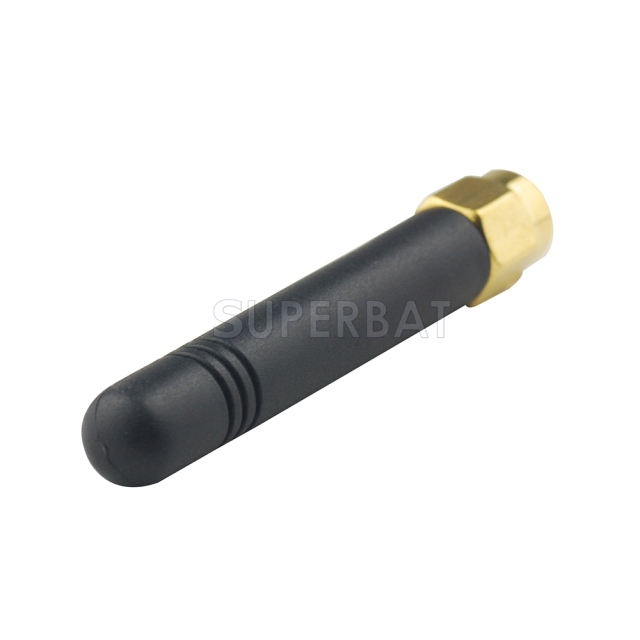

800/900/1800/1900 MHz GSM Omni 1.5dbi Antenna SMA Plug straight connector new

No.GM2-827-S01SP1-015
Antenna Type：Rubber DuckNetwork：GSM/GPRS/EDGE/CDMA AntennaFrequency：824-960Mhz ，1710-1990MhzConnector Series：SMAConnector Polarity：StandardConnector Gender：PlugGain：1.5dbiRadiation：OmnidirectionalV.S.W.R：≤1.5Weight：6g
CONTACT US
  • 800/900/1800/1900 MHz GSM Omni 1.5dbi Antenna SMA Plug straight connector new
  • 800/900/1800/1900 MHz GSM Omni 1.5dbi Antenna SMA Plug straight connector new
  • 800/900/1800/1900 MHz GSM Omni 1.5dbi Antenna SMA Plug straight connector new
Description

Frequency Range(MHz): 824-960Mhz ，1710-1990Mhz
GSM 850/ 900: 824 - 960 MHz
GSM 1800: 1710 - 1880 MHz
GSM 1900: 1850 - 1990 MHz
VSWR: ≤2
Gain: 1.5 dbi
Antenna Length(mm):50mm
Connector: SMA Plug Straight
Housing: Black
Weight:6 g
Application:
GSM/GPRS antennas are mainly applied to the follows
Indoor signal coverage system,
Security system,
Wireless data collection system,
Wireless electric power communication
Wireless public payphone system, etc.
