Product Description：

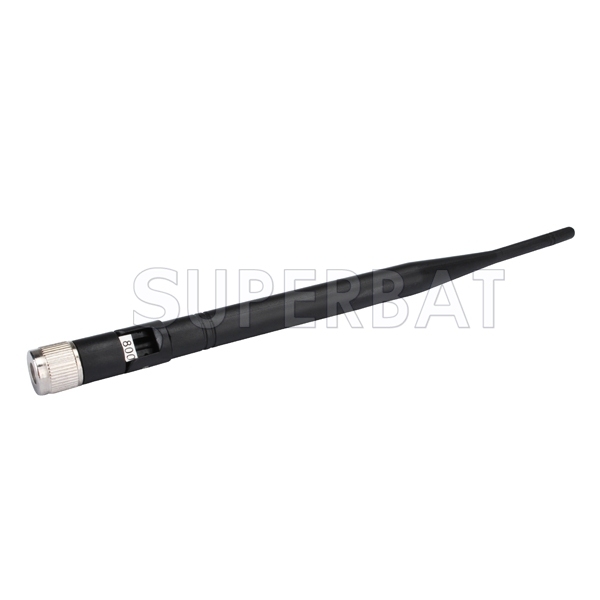

This compact GSM800 omnidirectional "rubber-duck" GSM antenna provides broad coverage and 3dBi gain.
It is a coaxial sleeve design with an omni-directional pattern.
This antenna was also designed to transmit on the 900mhz frequencies with a top end transmission not to exceed 25 watts.Works for the current digital MOBIL systems.

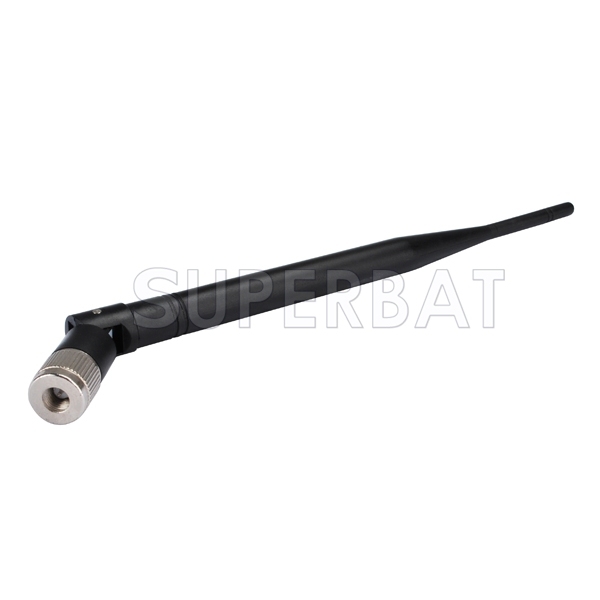

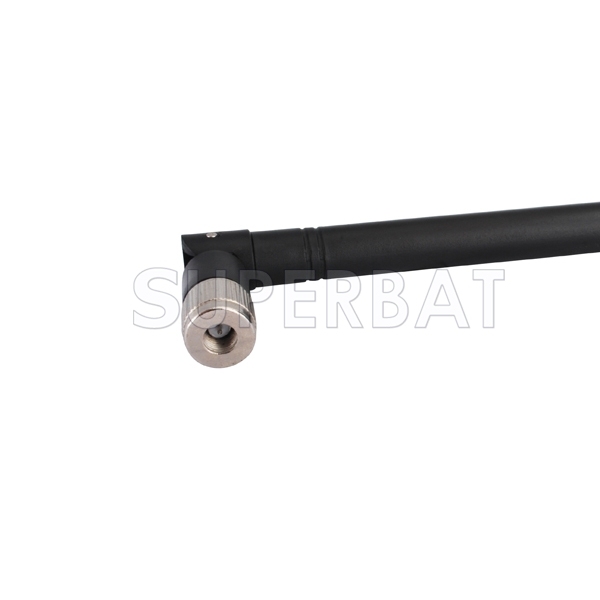

This flexible antenna features a tilt-and-swivel SMA male connector, allowing them to be used vertically,at a right angle, or any angle in-between. It is suitable as a replacement RF antenna for many access points and radios that are equipped with SMA male connectors including mobile, wireless pay phone, fixed commercial phone, PCMCIA card, navigation device, vehicle wireless device, etc.
Specifications:
Frequency Range:824-894MHz
V.S.W.R.:≤1.5
Gain:3dBi
input impedance:50Ω
Polarization:Vertical
Directionality:omnidirectional
Horizontal Beam Width:360°
vertical panel Beam Width:90°
power:50W
bandwidth:64MHz
Color:Black
connector: SMA plug Tilt and swivel design
size:237 mm
Diameter:12mm
weight: 29g
