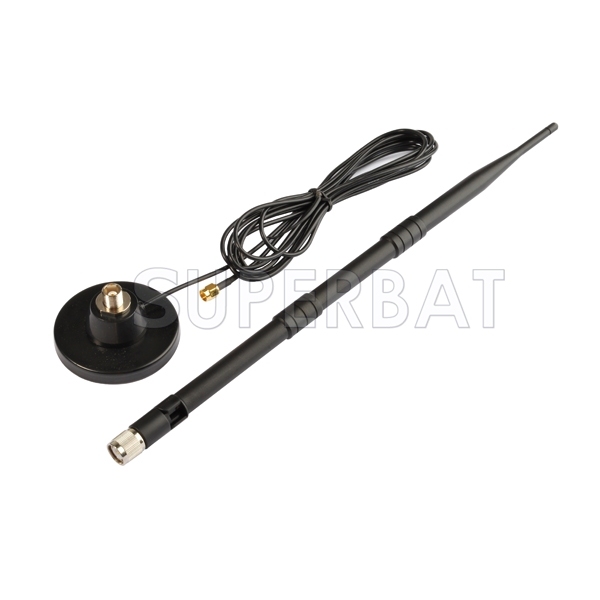

824-960/1710-2200MHz 9dB GSM/3G/UMTS/CDMA antenna strong magneti with SMA male

No.3A1-1621-S01SP-090-300
Antenna Type：Magnetic MountNetwork：3G/UMTS/CDMA2000 AntennaFrequency：824-960/1710-2200MHzConnector Series：SMAConnector Polarity：StandardConnector Gender：PlugGain：9dbiRadiation：OmnidirectionalV.S.W.R：≤1.5Cable Type：RG174Cable Length：3mWeight：230g
CONTACT US
  • 824-960/1710-2200MHz 9dB GSM/3G/UMTS/CDMA antenna strong magneti with SMA male
  • 824-960/1710-2200MHz 9dB GSM/3G/UMTS/CDMA antenna strong magneti with SMA male
  • 824-960/1710-2200MHz 9dB GSM/3G/UMTS/CDMA antenna strong magneti with SMA male
  • 824-960/1710-2200MHz 9dB GSM/3G/UMTS/CDMA antenna strong magneti with SMA male
Description

Gain:9dBi
Frequency range : 824-960/1710-2200 MHz
VSWR< 1.5 : 1 max
Impedance :50 Ohm
Polarization:     Vertical
Radiation:     omnidirectional
Diameter: 13.5mm
cable length: 3m or others
Antenna Connector: SMA male straight default
Optional conector: SMA/SSMB/SMB/N/TS9/CRC9/MS147/MCX/MMCX/FME/BNC/TNC/MC-Card..and so on.,please give us notes if you need other connectors!

Colour: black
Mounting:Magnetic Base
Cable:RG174
Working Temperature : -20~+55 deg C
