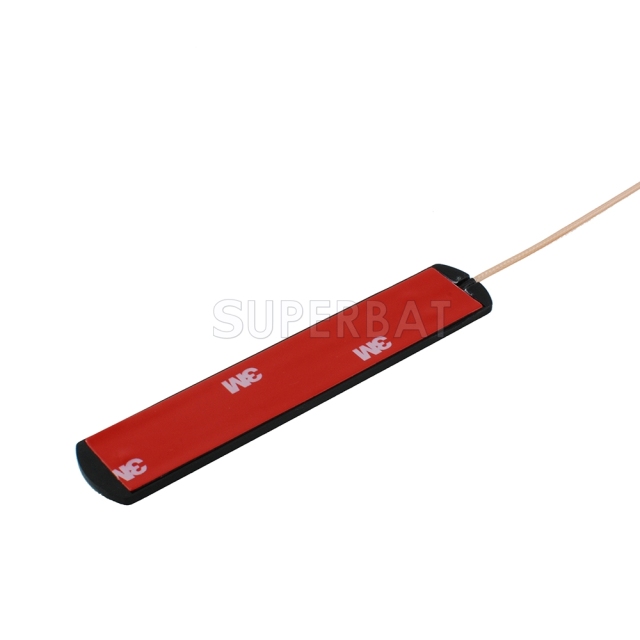

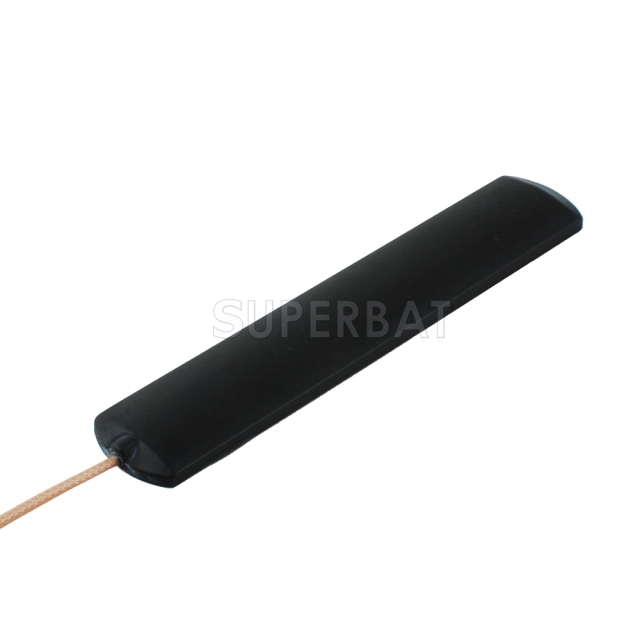

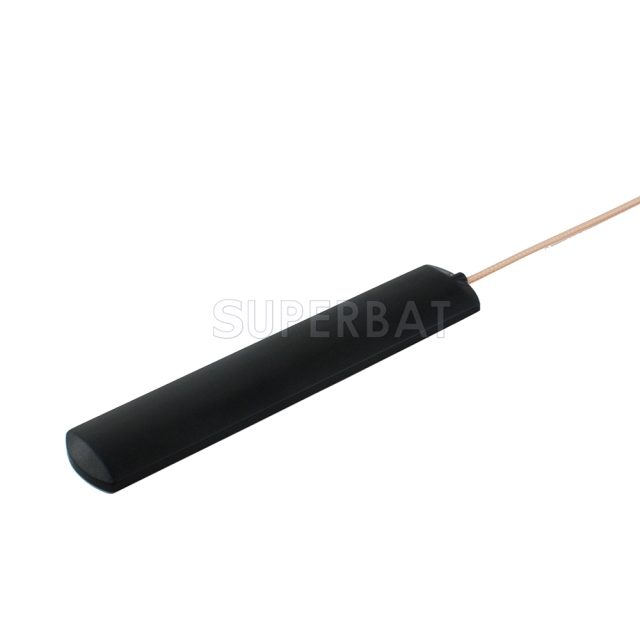

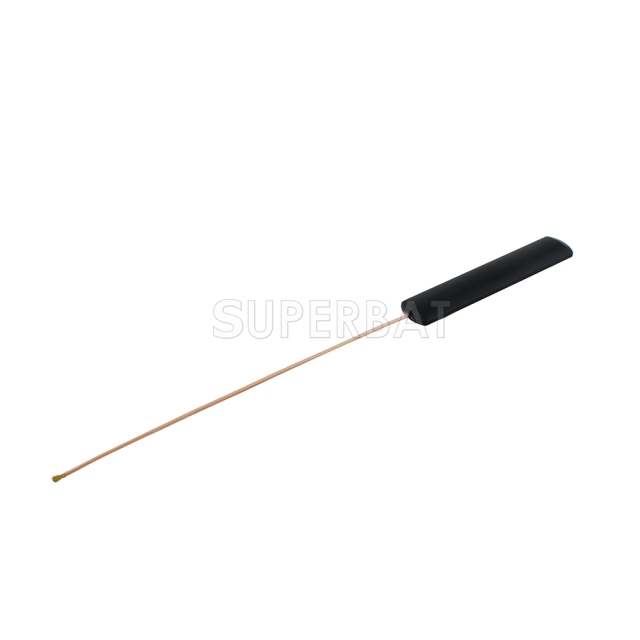

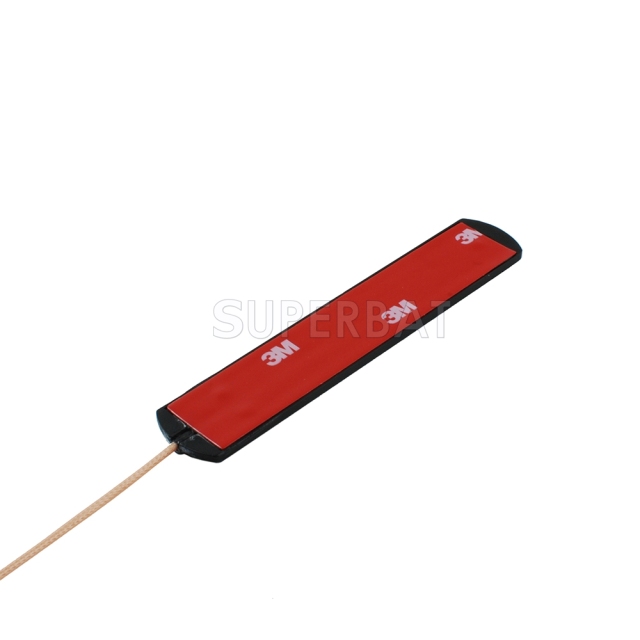

824-960MHz/1710-1990MHz GSM/UMTS/HSPA/CDMA Antenna 2.5dbi U.FL connector

No.GM3-560-U04RJ1-025-20
Antenna Type：Glass MountNetwork：GSM/GPRS/EDGE/CDMA AntennaFrequency：824-960MHz/1710-1990MHzConnector Series：IPX/U.flConnector Polarity：StandardConnector Gender：JackGain：2.5dbiRadiation：OmnidirectionalV.S.W.R：≤1.5Cable Type：RG178Cable Length：20cmWeight：45g
CONTACT US
  • 824-960MHz/1710-1990MHz GSM/UMTS/HSPA/CDMA Antenna 2.5dbi U.FL connector
  • 824-960MHz/1710-1990MHz GSM/UMTS/HSPA/CDMA Antenna 2.5dbi U.FL connector
  • 824-960MHz/1710-1990MHz GSM/UMTS/HSPA/CDMA Antenna 2.5dbi U.FL connector
  • 824-960MHz/1710-1990MHz GSM/UMTS/HSPA/CDMA Antenna 2.5dbi U.FL connector
  • 824-960MHz/1710-1990MHz GSM/UMTS/HSPA/CDMA Antenna 2.5dbi U.FL connector
Description

Frequency Range(MHz): 824-960/1710-1990Mhz
Bandwidth(MHz): 136/280
VSWR≤1.5
Gain(dBi): 2.5
Max Input power(W): 60
Input Impedance(Ω): 50
Polarization Type Vertical
Cable Type RG178

End connector: IPX / U.FL female right angle

Mounting Adhesive

Weight: 45g
