Specification:
Frequency Range(MHz)850-960/1710-2170
GSM/GPRS/EDGE 850/900/1800/1900MHz/2170MHz
HSUPA/HSDPA/UMTS 2100MHz/900MHz
CDMA 1900 MHz
VSWR ≤1.5
Gain: 9dbi
Max Input power(W): 50
Input Impedance(??): 50
Polarization Type: Vertical
Radiation: omnidirectional
Max diameter :70mm
Min diameter :2.5mm
Antenna Length(mm): 670
Cable Length(mm): 3M
Cable Type RG58 U/RG 174 default
Cable Connector: SMA or customized, optional conector:SMA/SSMB/CRC9/TS9/MS147/MCX/MMCX/FME/BNC/TNC/SMB/MC-Card..and so on.,please give us notes if the connector is chosen !
Mounting: Magnetic
Housing: Black
Weight:310g
Storage Temperature: -45'c to +75'c
Operating Temperature: -45'c to+75'c

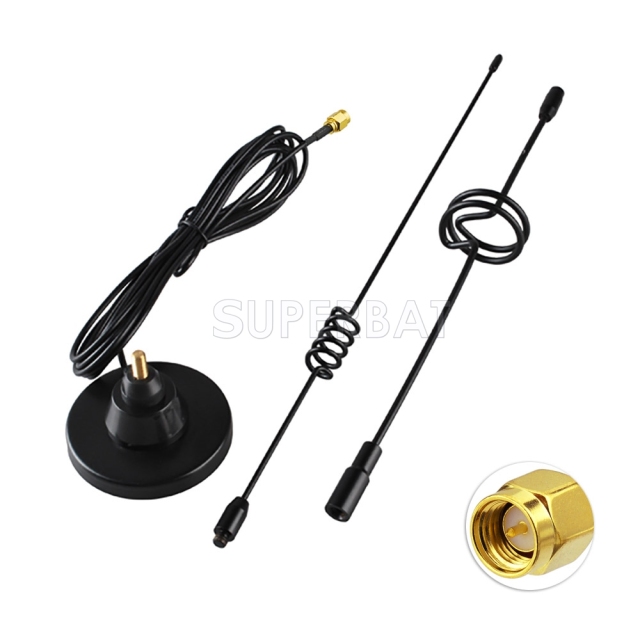

This magnetic antenna is perfect for people on the move who require a 3G connection. It is designed to sit on the roof of a car, mounted on a magnetic ground plate.
