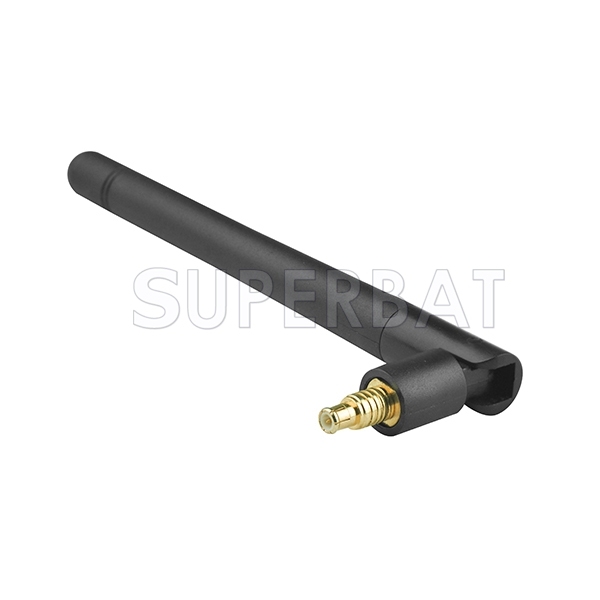

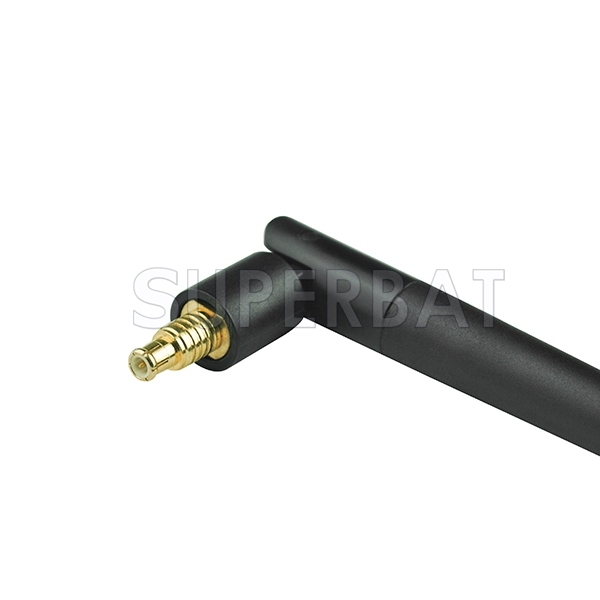

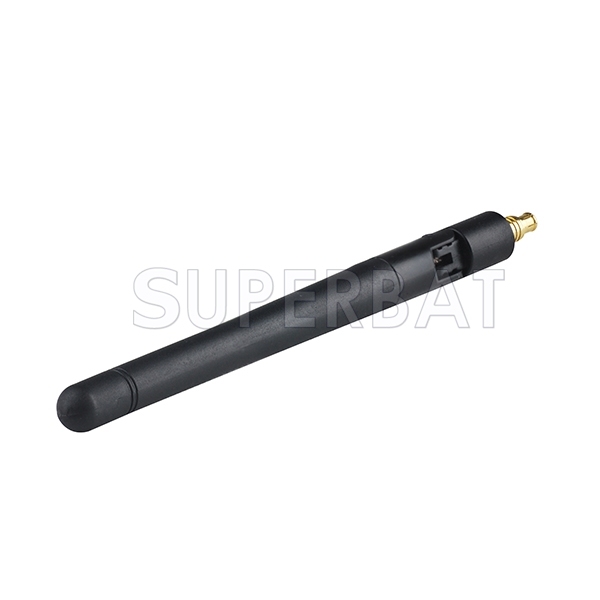

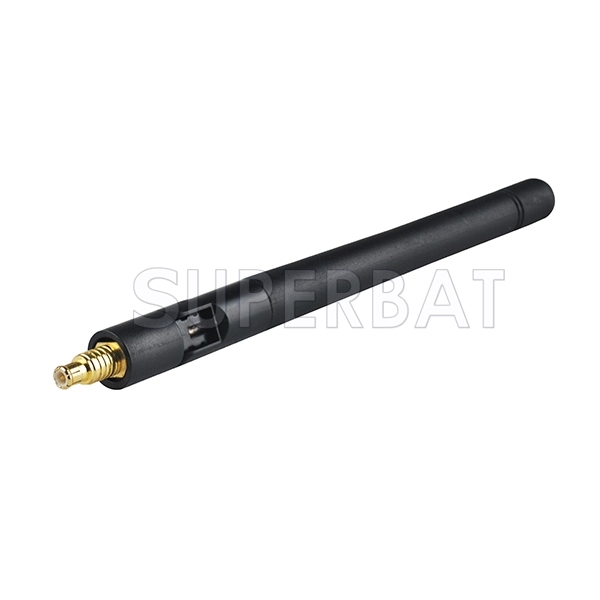

890-960MHz/1710-1880MHz GSM/UMTS/HSPA Antenna 3dBi MCX Plug

No.GM2-2804-M03SP-030
Antenna Type：Rubber DuckNetwork：GSM/GPRS/EDGE/CDMA AntennaFrequency：890-960MHz/1710-1880MHzConnector Series：MCXConnector Polarity：StandardConnector Gender：PlugGain：3dBiRadiation：OmnidirectionalV.S.W.R：≤1.5Weight：9g
CONTACT US
  • 890-960MHz/1710-1880MHz GSM/UMTS/HSPA Antenna 3dBi MCX Plug
  • 890-960MHz/1710-1880MHz GSM/UMTS/HSPA Antenna 3dBi MCX Plug
  • 890-960MHz/1710-1880MHz GSM/UMTS/HSPA Antenna 3dBi MCX Plug
  • 890-960MHz/1710-1880MHz GSM/UMTS/HSPA Antenna 3dBi MCX Plug
Description

Frequency: 1710~1880MHz,890~960MHz
VSWR: ≤1.8
Gain: 3dBi
Max Input power: 50w
Input Impedance: 50Ω
Antenna Length: 115mm
Polarization：Vertical
Directionality: Omni-directional
Operating Temperature: -45℃ to +75℃
Housing: Black
Connector: MCX plug straight
Weight: 9g
