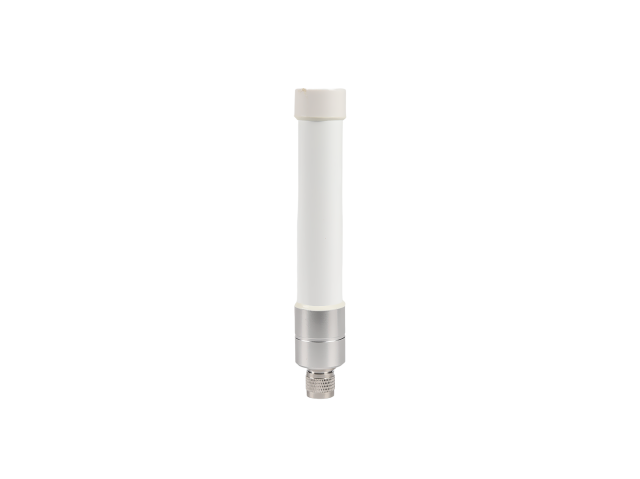

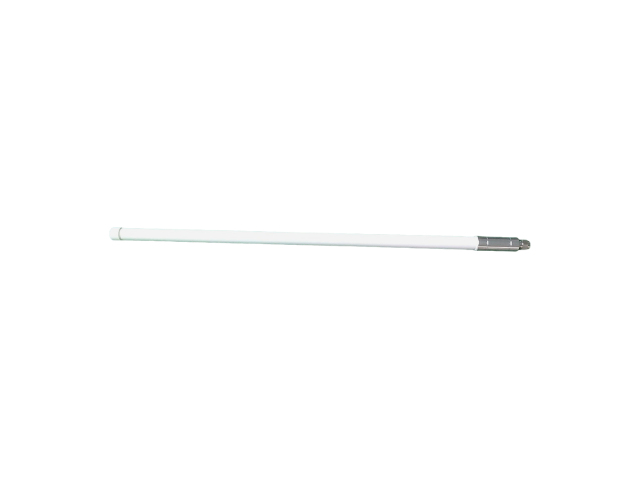

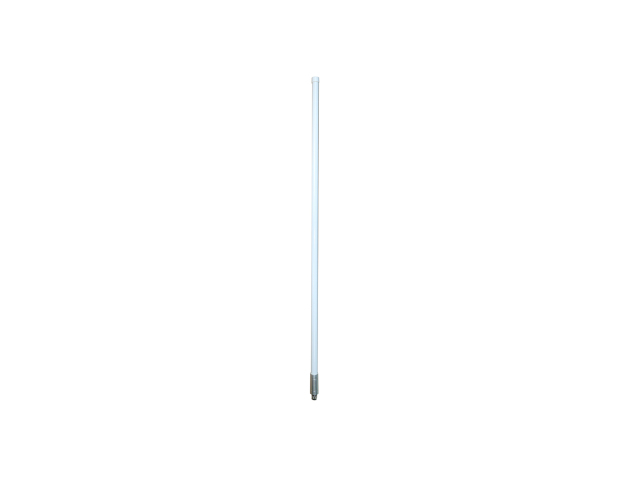

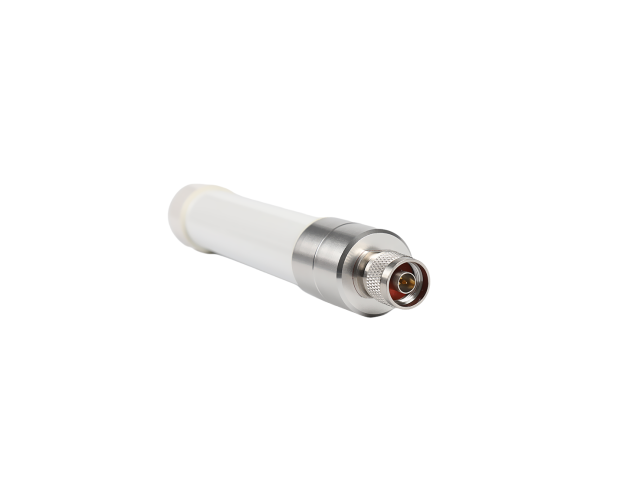

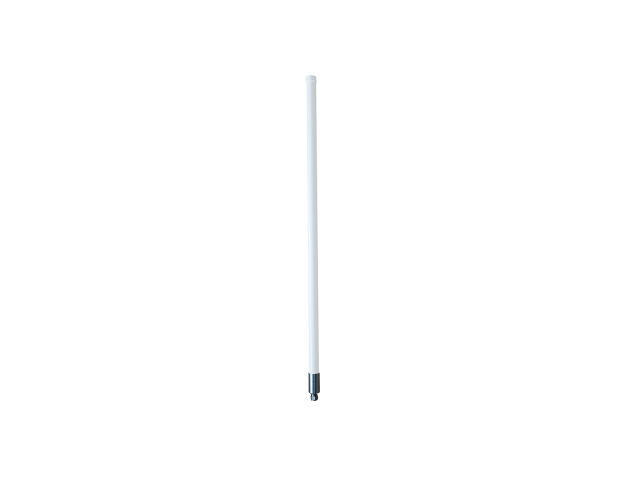

Helium miner/HNT hotspot 915MHz fiberglass Lora antenna 8dBi
Frequency: 863-870MHz
Gain: 8dBi±1.0dBi
Length: 1300±20mm
Mode: V1799-030-A-02
Impedance: 50Ω
VSWR: ≤2.0
Beamwidth: 360°
Connector: NJ dual tooth connector
Structure: Fiberglass
Application: 863-870MHZ Band LORA Communications/ Wireless Data transmission system/ Wireless Paging System
Low VSWR, guranteen the good performance of antenan and good coverage.Fiberglass structure, good water proof for Outdoor Installation.Special suitable for Urban area (Not suggest for Rural area which far away from Urban area.Wide Beamwidth, radiation distance can reach up to 3km.
• No induction eddy current
This reduces signal interference and improves the stability of communication.
• Compact structure
FRP antenna design is more compact, occupy a small space, suitable for installation in a limited space.
• Light and high strength
The high strength and lightweight characteristics of FRP make the antenna structure strong but light weight, easy to install and transport, reducing the burden on the support structure.
• Good electrical performance
Fiberglass antennas have excellent electrical insulation and wave permeability (transmittance of more than , which means that there is almost no loss in signal transmission, ensuring the quality of communication.
| Frequency | 863-870MHz |
| Impedance | 50Ω |
| VSW | ＜2.0 |
| Gain | 8.0dBi±1.0dBi |
| Max. Efficienc | >75% |
| Polarization | Linear polarization/Vertical |
| Radiation pattern | Omni-directional |
| Connector | N-J |
| Length | 1300±20mm |
| Salt Spray Test | 48H |
| Operation Temperature | -30℃~65℃ |
| Storage Temperatur | -30℃~75℃ |
Installation suggestion
we recommend that you install the antenna in an open place, and keep it as vertical as possible. Install the antenna in the highest place outdoors would help you to get a better signal. However, if used indoors, it is recommend to place them near a window.
 |
 |

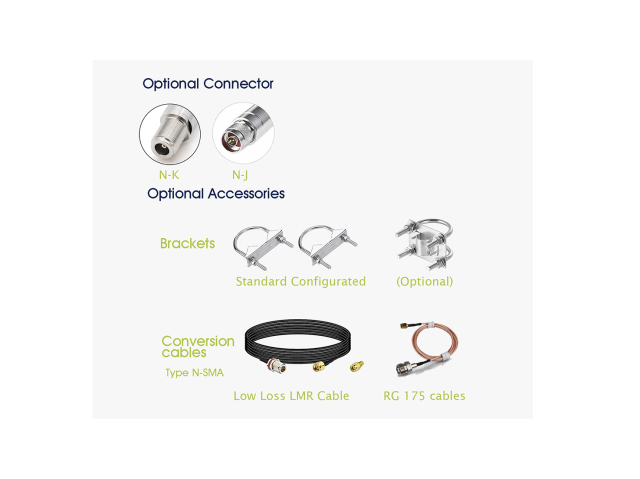

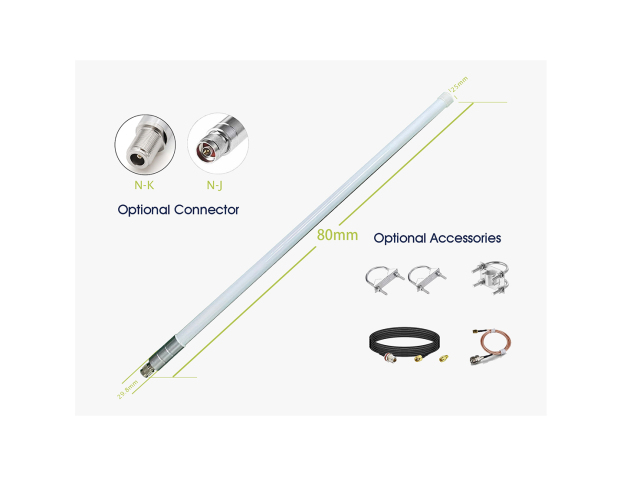

| Optional connector and accessories are availiable. Please share your requirement with us to get the best offer. | The fiberglass antenna are speciall suitable for outdoor installation. It can work well with your Helium miner hotsport, internet gateway and any long range communication systems and euiqpments. |
