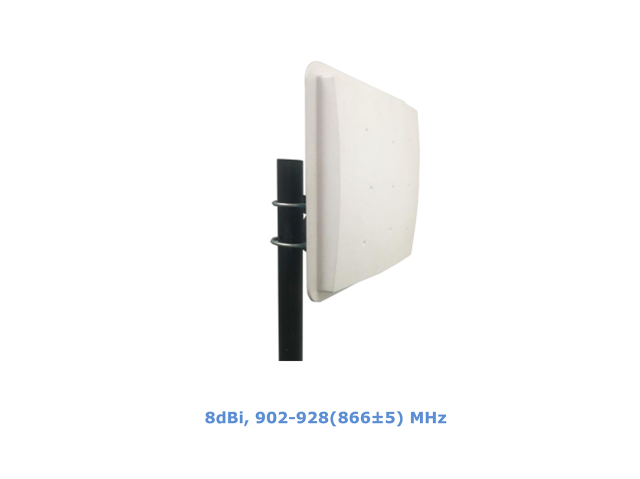

The 8dBi RFID Directional Panel Antenna excels in focused tag reading (902-928 MHz). Its 8dBi gain and narrow 80° x 70° beam ensure strong, targeted signals for applications like warehouse management, access control, and asset tracking. The compact, weatherproof design (IP65) makes it ideal for diverse environments.
• Exceptional Signal Focus

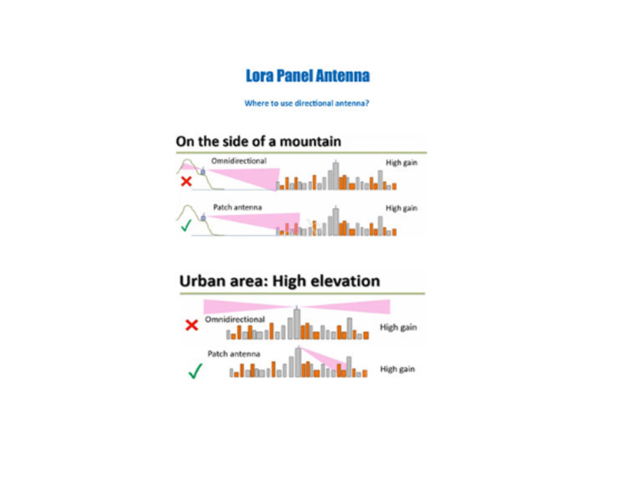

This high-gain (8 dBi) directional antenna offers superior focus for RFID tag reading. Unlike omnidirectional antennas, it directs a powerful signal in a specific zone (80° x 70°), enhancing accuracy and reliability in applications like access control or asset tracking within warehouses and storage facilities
• Efficient Signal Transmission
This high-gain (8 dBi) directional antenna offers superior focus for RFID tag reading. Its efficient signal transmission ensures strong readings across the targeted zone, ideal for access control or asset tracking in warehouses.
• Durable Design for Diverse Environments

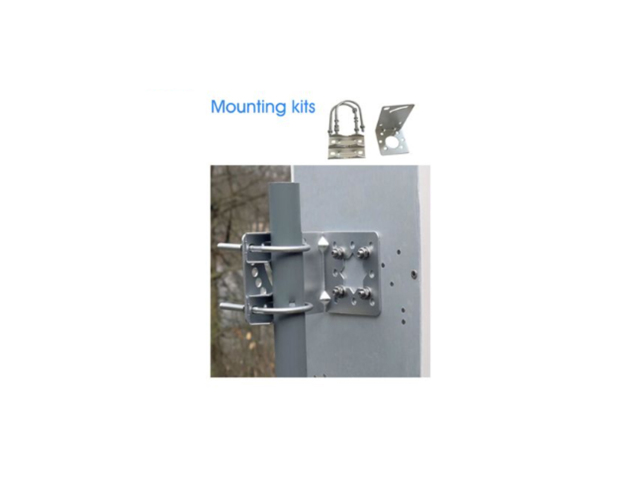

This durable antenna (IP65) thrives in any environment, indoors or outdoors. Its compact size (190x190x25mm) ensures easy installation for diverse applications
• Improved Tag Readability
This antenna tackles challenges of tag orientation with circular polarization. Unlike standard antennas, it guarantees reliable tag reading regardless of tag position, ideal for tracking moving objects or situations with imprecise tag placement.
| Frequency Range | 902-928 MHZ |
| Gain | 8 dBi |
| Beamwidth (Horizontal) | 80° |
| Beamwidth (Vertical) | 70° |
| Polarization | Circular |
| VSWR | ≤ 1.4 |
| Impedance | 50Ω |
| Maximum Power | 100W |
| Connector | N-Female |
| Dimensions | 190 x 190 x 25 mm |
| Net Weight | 0.4 kg |
| Operating Temperature | -20°C to 60°C |
| Waterproof Rate | IP65 |
| Radome Material | ABS |
| Pole Diameter | Φ30-50 mm |
