9300~9500MHz 64 Way Power Divider 50 Ohm Wide-Band Signal Splitter

No.MPD-9.3/9.5-64S
CONTACT US
  • 9300~9500MHz 64 Way Power Divider 50 Ohm Wide-Band Signal Splitter
Description

Frequency Range：9300～9500 MHz

Insertion Loss ≤ 2.0 dB（Excluding theoretical loss：18.0 dB）

Input Port VSWR：Typ.1.22 / Max.1.35

Output Port VSWR ：Typ.1.18 / Max.1.35

Isolation：Typ. 22dB / Min. 15dB

Amplitude Balance ：±0.8dB

Phase Balance ：±10°

Impedance：50 Ohms

Power Rating Splitter：10W; Combiner：1W

Operation Temperature ：-40℃ ~ +70℃

Surface Finishing：Black paint

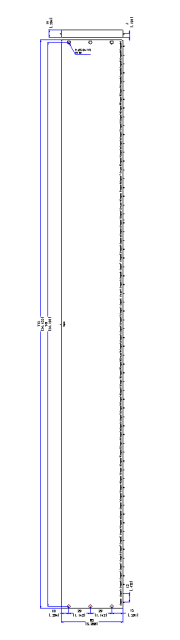

Outline Dimensions：83*773*10（mm）
