Frequency Range(MHz): 850-960/1710-2170
GSM/GPRS/EDGE 850/900/1800/1900MHz
HSUPA/HSDPA/UMTS 2100MHz/900MHz
CDMA 1900 MHz
VSWR< 1.5 : 1 max
Gain: 9dbi
Impedance :50 Ohm
Polarization: Vertical
Radiation: omnidirectional
Diameter: 13.5mm
With 2.5 meter pigtail
Cable Type RG 174 default

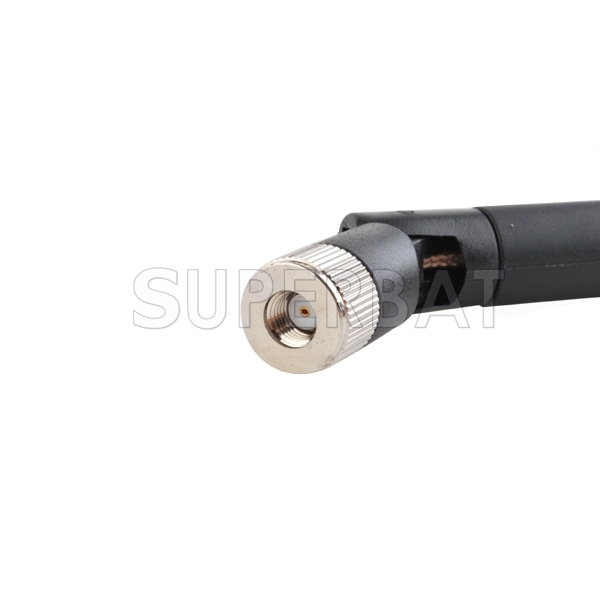

Antenna connector :SMA or customized
Optional conector: SMA/SSMB/SMB/N/TS9/CRC9/MS147/MCX/MMCX/FME/BNC/TNC/MC-Card..and so on.,please give us notes if you need other connectors!
Colour: black
Mounting: Base with RP-SMA connector
Working Temperature : -20~+55 deg C
Weight: 122g
