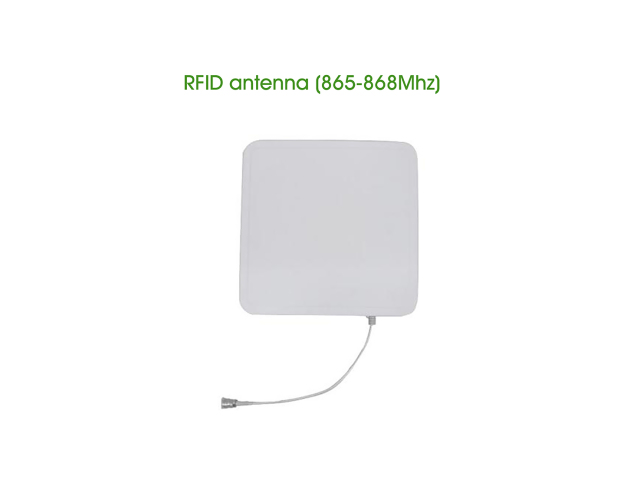

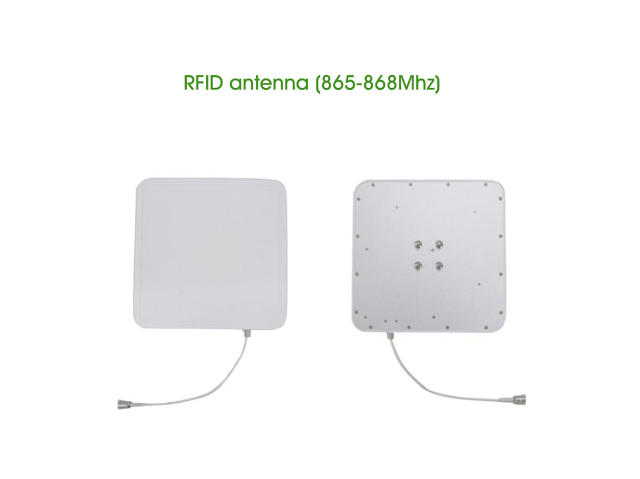

This high-gain (9 dBi) directional antenna offers superior focus for UHF RFID tag reading in the 865-868 MHz frequency range. Its narrow beamwidth (Hor: 70° Ver: 60°) ensures strong, targeted signals for applications like access control, warehouse management, asset tracking, and more. The compact and weatherproof design (IP67) makes it ideal for diverse environments, both indoors and outdoors.
• Enhanced Performance
Boasting a powerful 9 dBi gain, this antenna delivers increased reading distance and stronger signals compared to previous models. Optimized for the global 865-868 MHz UHF band, it offers wider compatibility. Additionally, a superior front-to-back ratio minimizes signal interference for reliable tag reads.
• Durable Construction
Built to withstand harsh environments, this antenna features a rugged IP67 waterproof rating. It protects against dust, rain, and even temporary submersion, making it ideal for outdoor use. Furthermore, it boasts exceptional wind resistance (up to 50 m/s) for reliable operation in windy conditions. Despite its durability, the antenna remains compact (260 x 260 x 30 mm) for easy installation.
• Additional Features

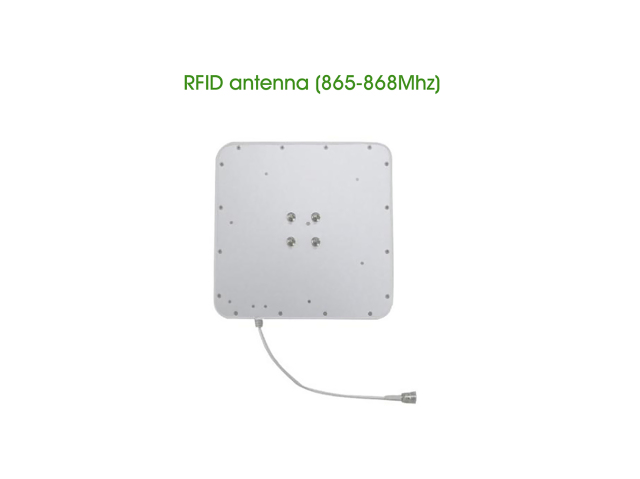

The antenna offers additional features for enhanced usability. Circular polarization ensures reliable tag reads regardless of tag orientation, perfect for tracking moving objects or situations with imprecise tag placement. An N-Type female connector provides a secure and reliable connection to UHF RFID readers. Finally, the antenna offers versatile mounting options, accommodating poles from Φ30 to Φ50 mm in diameter
| Frequency: | 865-868MHz |
| Gain: | 9dBi |
| Beam Width: | Hor: 70° Ver: 60° |
| Polarization: | Circular |
| VSWR: | ≤1.4 |
| F/B Ratio: | ≥20 |
| Impedance: | 50Ω |
| Maximum Power: | 100W |
| Lightning Protection: | DC Ground |
| Connector: | N-Female |
| Dimension: | 260 x 260 x 30 mm |
| Net Weight: | 1.1 kg |
| Packing Size: | 29 x 29 x 8 cm |
| Gross Weight: | 1.68 kg |
| Radome Material: | ABS |
| Radome Color: | White |
| Pole Diameter: | Φ30-50 mm |
| Rated Wind Velocity: | 50 m/s |
| Operating Temperature: | -20°C to 60°C |
| Waterproof Rate: | IP67 |
