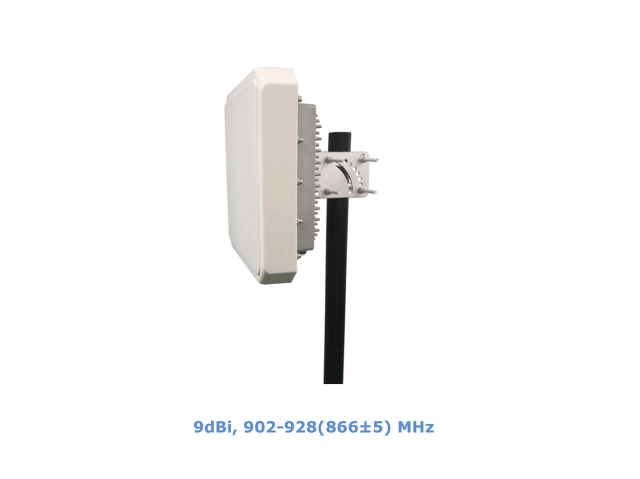

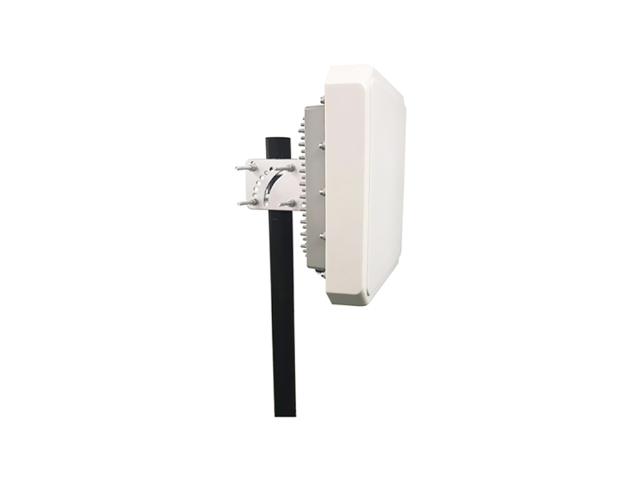

This high-performance 9 dBi RFID antenna delivers reliable tag reading within the 902-928 MHz frequency range (including 866 ± 5 MHz). Its omnidirectional radiation pattern (70° horizontal and 70° vertical beamwidth) offers broad coverage, ideal for applications requiring consistent reading in designated areas. The antenna features a durable weatherproof design (IP65/IP67) for both indoor and outdoor environments
• Extended Read Range and Efficient Tag Reads
This antenna boasts a high gain of 9 dBi, transmitting a powerful signal that ensures efficient tag detection and extends the read range. This is ideal for applications requiring reliable tag identification across a designated area.
• Broad Coverage and Consistent Performance
The omnidirectional radiation pattern with a 70° horizontal and 70° vertical beamwidth eliminates the need for precise antenna placement. This guarantees consistent tag reads throughout the coverage zone.
• Optimized Signal Transmission and Durability
The linear polarization offers efficient signal transmission and reception, suitable for most RFID applications. Additionally, the low VSWR (≤ 1.3) minimizes signal loss for accurate tag communication. The rugged construction with an IP65/IP67 rating safeguards the antenna against dust, rain, and harsh weather conditions, guaranteeing reliable operation in any environment
| Frequency | 902-928 MHz (866±5 MHz) |
| Gain | 9 dBi |
| Beam Width | Hor: 70° Ver: 70° |
| Polarization | Linear |
| VSWR | ≤ 1.3 |
| F/B Ratio | ≥ 20 dB |
| Impedance | 50Ω |
| Lightning Protection | DC Ground |
| Connector | N-Female/Male, TNC |
| Dimension | 260 x 260 x 95 mm |
| Radome Material | ABS |
| Radome Color | White |
| Operating Temperature | -20°C to 60°C |
| Waterproof Rate | IP65/IP67 |
