Frequency: AM 520KHz～1710KHz、FM 87MHz～108MHz
Voltage: 9V∽16V
Current: <60mA@12V
LNA Gain FM:11±3dB; AM: 5±3dB
Noise Figure ≤4.0dB
V.S.W.R: < 2.0 @FM
Impedance: 50±3Ω
size: 124*73*82mm
Protection Level IP67
Application: Various Car, Caravan, Bus, and etc

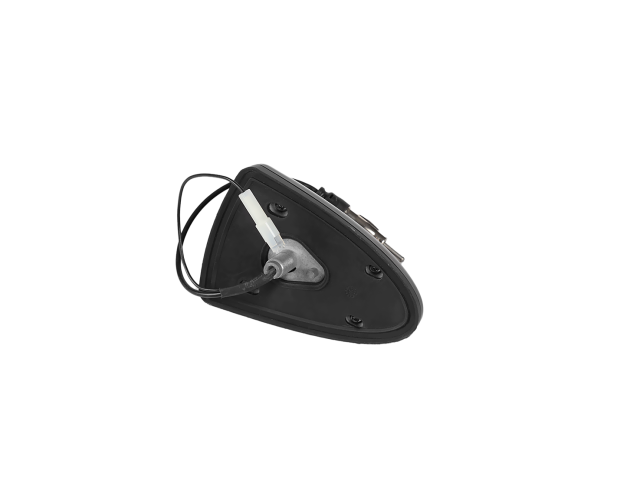

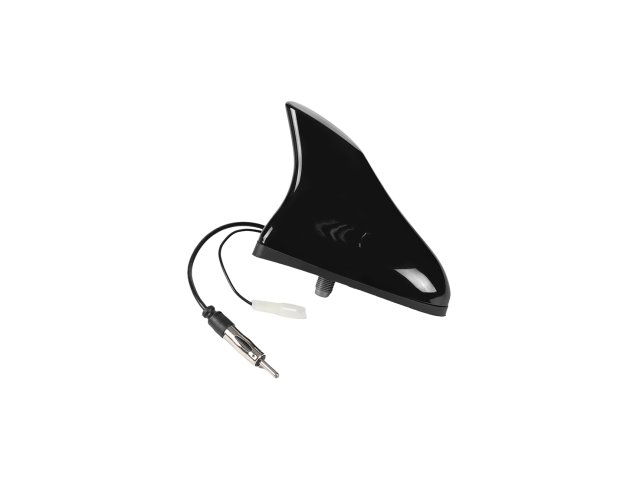

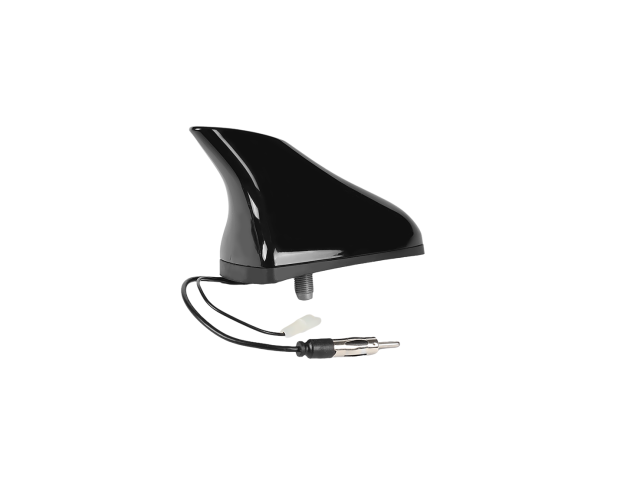

This is a AM/FM sharkin antenna reserve space also for a GNSS antenna, customer can choose single AM/FM antenna, GPS antenna or AM/FM+GPS 2-in-1 antenna according to the function of car host devices. This antenna can be supply to various Car, Bus and caravans.
• Mounting Method
Hole drilling on car roof or fender.
• Lower wind resistance
Not like the traditional whip antenna, user can go through the car wash without removing it. And the sharkfin share design provides not only the good looking, but also the help of lower the wind resistance of the vehicle.
• Customize
With same casing, other frequency i.e. 4G/5G, wifi, V2X, and etc are also customizable. Welcome to contact VLG for more details.
| Function | AM/FM | GPS |
| Frequency Range | AM 520-1710KHz, FM 87.5-108MHz | 1559-1577MHz |
| V.S.W.R | < 2.0 @FM | ≤2.0:1 |
| lmpedance | 50±3Ω | 50Ω |
| Polarization | Linear | RHCP |
| Low noise amplifier characteristics | ||
| Working voltage | 9V∽16V，Nominal Voltage：12V | 3V∽5V |
| Working current | <60mA@12V | 10±3mA@3.3V |
| Output gain | FM:11±3dB; AM: 5±3dB | 28±3dB |
| Output impedance | 50±3Ω | 50±3Ω |
| Output standing wave ratio | < 2.0 @FM | ≤2.0:1 |
| Noise factor | ≤4.0dB | ≤2dB |
| Environmental Requirements | |
| (1) Operating temperature | -40℃ ~ +90℃ |
| (2) Storage temperature | -40℃ ~ +105℃ |
| (3) Protection grade | IP67 (after vehicle assembly) |
