Specifications:
Bar Length: Approx. 23 cm
Base: 58 x 45x 270 mm
Antenna Angle: Approximately 75 °
Supply Voltage：12V DC
Current Consumption：40mA

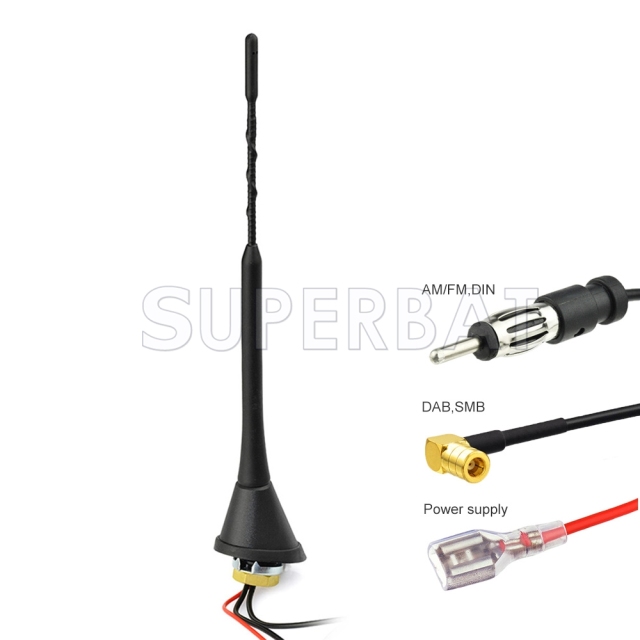

Aerial connector: SMB
FM /AM connector:DIN
Mechanical Cable: RG174
Cable Length:5M
Mounting Method:Screw
Adapter connector: Fakra to DIN & SMA to SMB with RG174 Cable 15CM
Impedance: 50 ohm
Working Frequency: 170MHz～240MHz (Band III)
1452MHz～1492MHz (L-Band)

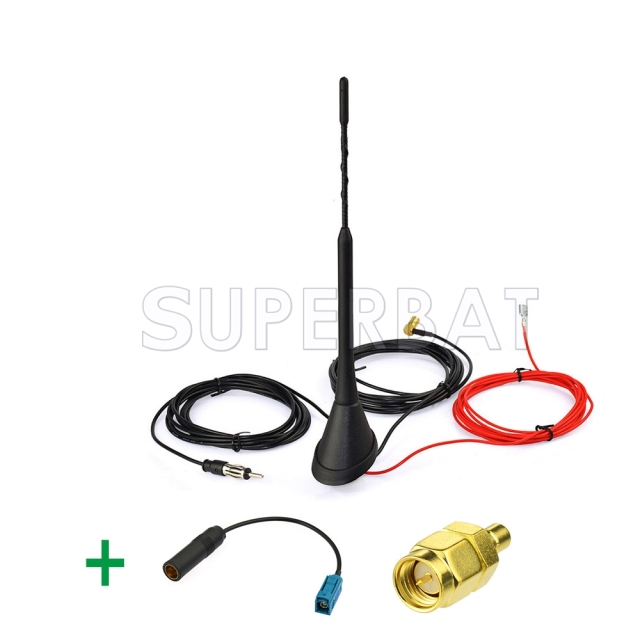

Package included:
1pcs DAB car Aerial （DB1-2415-D02SP-S05RA-500）

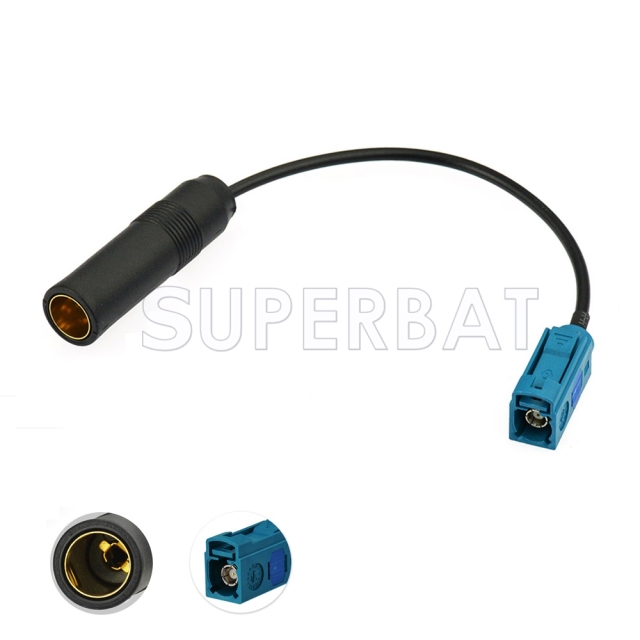

1pcs Fakra to DIN Adapter （AC-D02SJ-F03ZSJ-174-15）

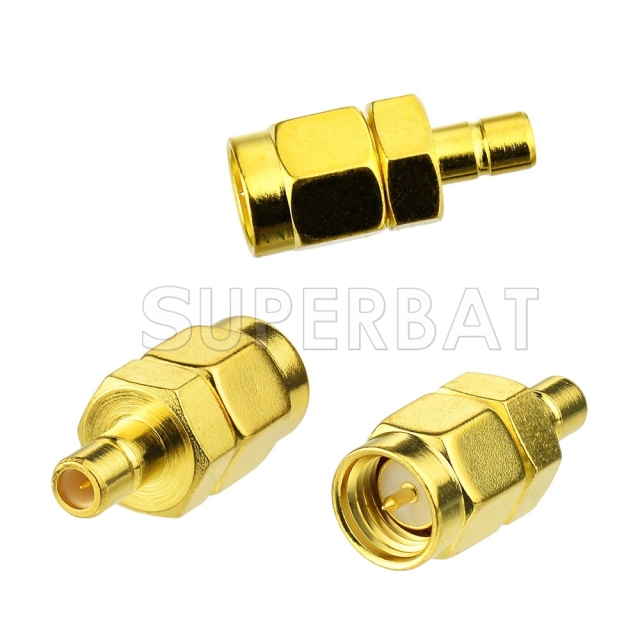

1pcs SMA to SMB Adapter （AD-S01SP-S05SJ-11BS00）
Advantages:
High quality, top performance, roof mount, amplified DAB/FM/AM car aerial.

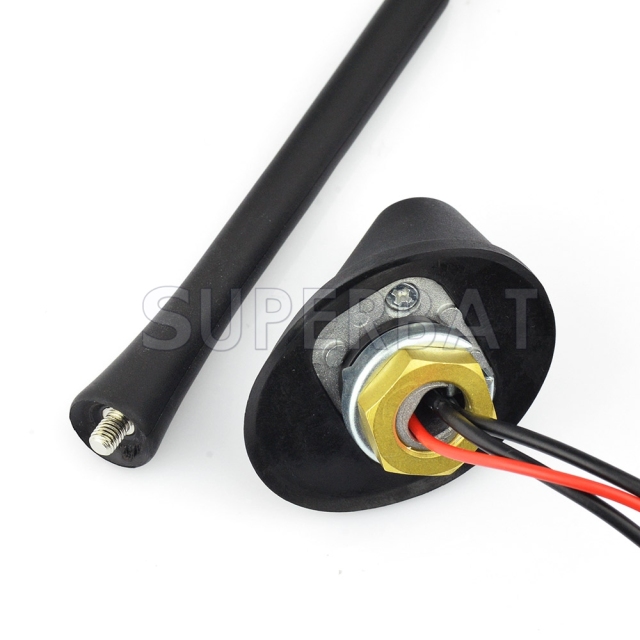

Mast easily unscrews for carwash, etc.
Can also be fitted to wing, boot lid etc. (at slight expense of performance).
If your vehicle currently has a built-in-the glass or similar FM/AM aerial, installing the 'DAB/FM/AM bundle will probably improve your FM/AM reception as well.
Listing Suitable for the following DAB radios：
Alpine All in-car DAB except Ezi-DAB
Beat ALL in-car DAB
Blaupunkt All in-car DAB
Caliber Caliber ALL in-car DAB except PMT-700D
C-KO All in-car DAB
Clarion Clarion ALL in-car DAB
Clarity CCE203-DAB
Grundig All in-car DAB
JVC All in- car DAB
Kenwood All in- car DAB
Kinetic All in-Car DAB
pioneer All in-car DAB except GEX-P900DAB
philips CEM.....series
pure Highway H240Di H260D
Sonichi SB50-DAB
Sony All in-car DAB
AutoDAB All models
Connects 2 CTDAB-2
Dual DAB CAR1
Goodmans GFMTDBA10
In-Phase All in- car DAB except ProDAB
Cautions:
UNSUITABLE for replacement of bee-sting aerials incorporating GSM, GPS or rear-screen washer jet (some Vauxhalls etc).
Must not be mounted on a panel whose underside is exposed to the elements.
5m DAB cable is captive, i.e. permanently attached.
Max panel thickness: 2.5mm.
