Home > All Collections > Antenna 433Mhz,3dbi RP-SMA Plug Straight with Magnetic base for Ham

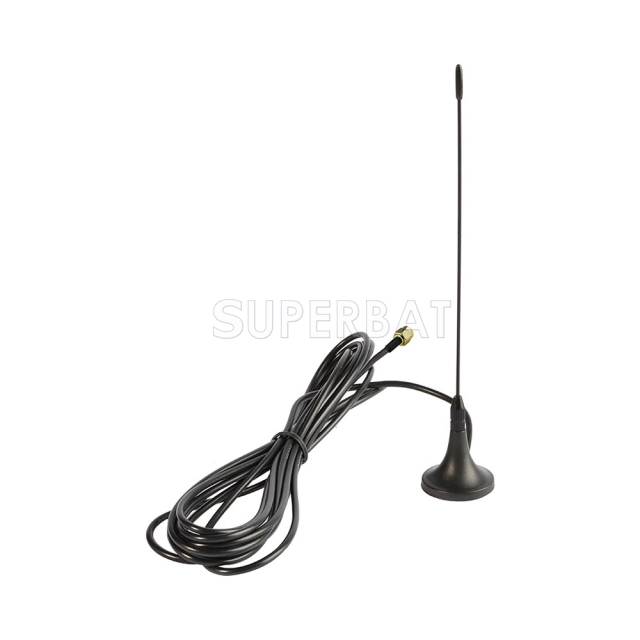

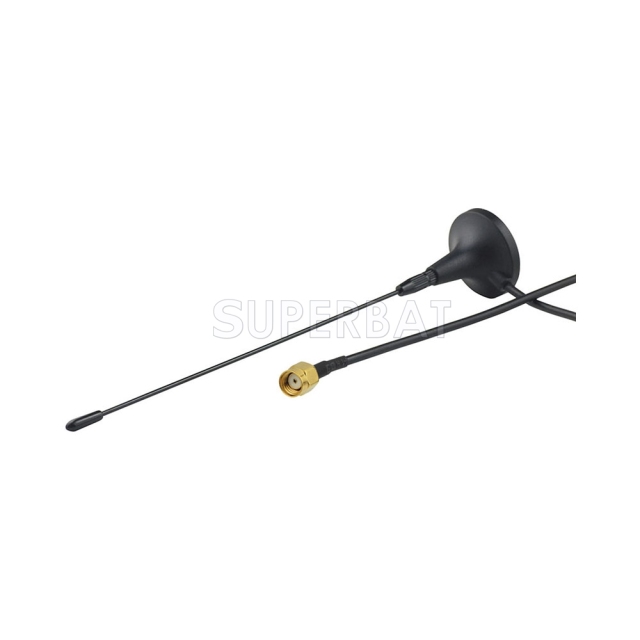

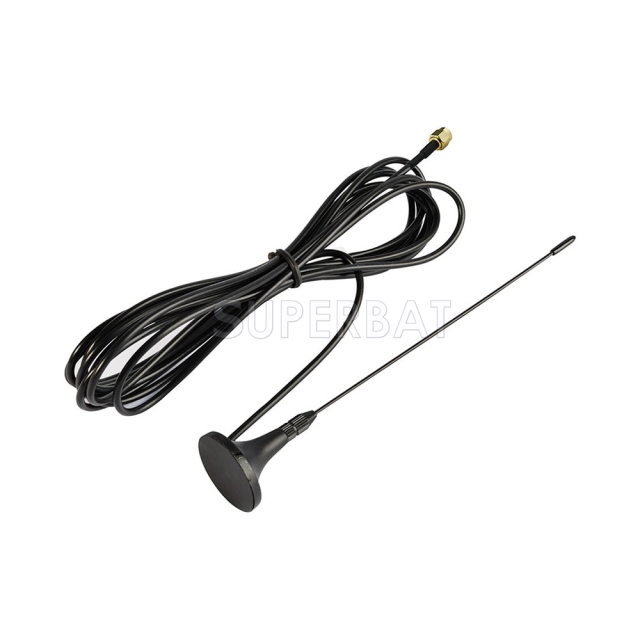

  • Antenna 433Mhz,3dbi RP-SMA Plug Straight with Magnetic base for Ham
  • Antenna 433Mhz,3dbi RP-SMA Plug Straight with Magnetic base for Ham
  • Antenna 433Mhz,3dbi RP-SMA Plug Straight with Magnetic base for Ham
  • Antenna 433Mhz,3dbi RP-SMA Plug Straight with Magnetic base for Ham
  • Antenna 433Mhz,3dbi RP-SMA Plug Straight with Magnetic base for Ham
  • Antenna 433Mhz,3dbi RP-SMA Plug Straight with Magnetic base for Ham

Antenna 433Mhz,3dbi RP-SMA Plug Straight with Magnetic base for Ham

No.EA1-1626-S02SP-030-300
Type：433Mhz AntennaCenter Frequency：433MhzConnector Series：SMAConnector Polarity：Reverse PolarityConnector Gender：Plug StraightImpedance：50 OhmNominal Gain：3 dBiV.S.W.R：≤1.5Cable Length：3m or others
CONTACT US
  • Antenna 433Mhz,3dbi RP-SMA Plug Straight with Magnetic base for Ham
  • Antenna 433Mhz,3dbi RP-SMA Plug Straight with Magnetic base for Ham
  • Antenna 433Mhz,3dbi RP-SMA Plug Straight with Magnetic base for Ham
Description

Frequency Range（MHz） 433+/-15
Bandwidth（MHz） 30
VSWR ≤1.5
Gain（dBi） 3
Max Input power（W）50
Input Impedance（Ω） 50
Polarization Type :Vertical
Antenna High（mm） 170
Cable Length﹙mm﹚ 2000,3000,5000 or other
Cable Type RG174
Connector Type RP-SMA Plug connector (Default )/SMB/SMC/BNC/FME/TNC/MCX /MMCX or other
Mounting Magnetic
Radiation :Omni-direction
Max Diameter :30mm
Min Diameter :1.5mm
Max wind speed :200km/h
