Home > All Collections > Antenna 433Mhz,3dbi with Magnetic base for Ham 5M
  • Antenna 433Mhz,3dbi with Magnetic base for Ham 5M
  • Antenna 433Mhz,3dbi with Magnetic base for Ham 5M
  • Antenna 433Mhz,3dbi with Magnetic base for Ham 5M
  • Antenna 433Mhz,3dbi with Magnetic base for Ham 5M
  • Antenna 433Mhz,3dbi with Magnetic base for Ham 5M
  • Antenna 433Mhz,3dbi with Magnetic base for Ham 5M

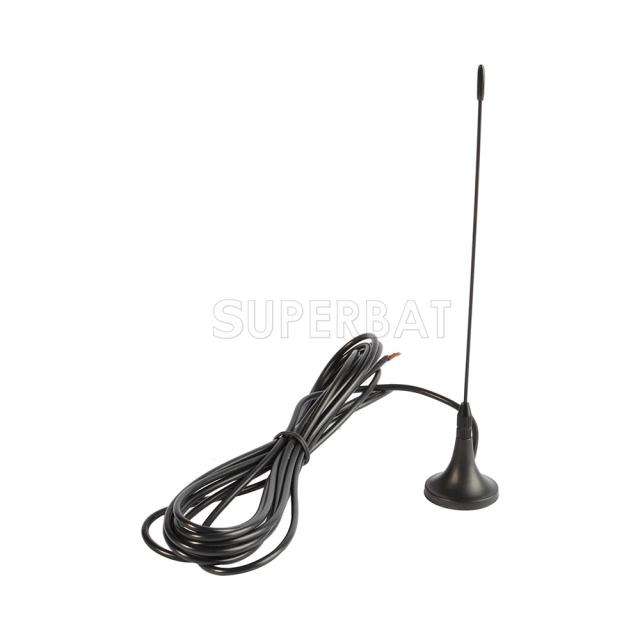

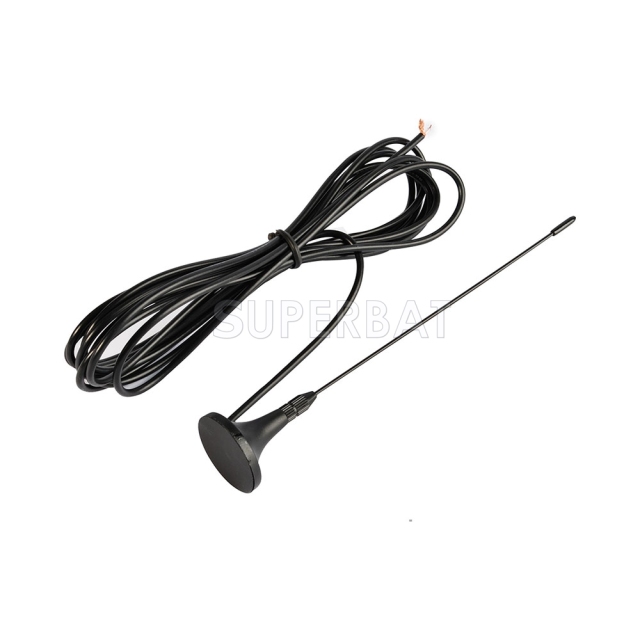

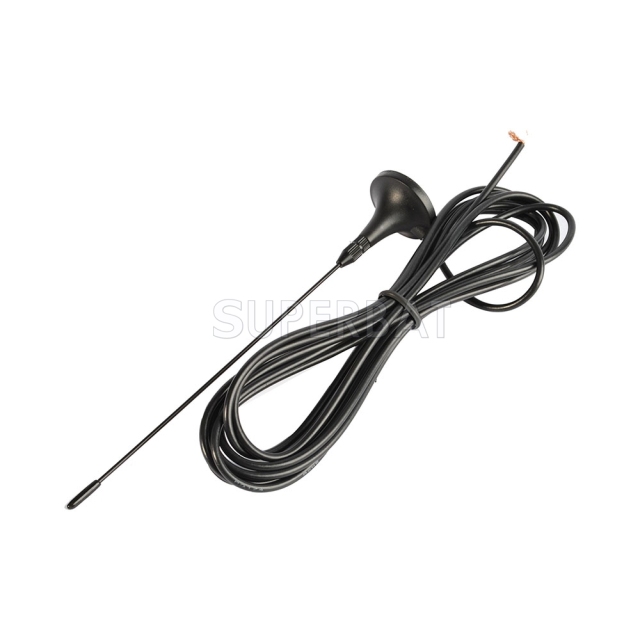

Antenna 433Mhz,3dbi with Magnetic base for Ham 5M

No.EA1-1626-030-500
Type：433Mhz AntennaCenter Frequency：433MhzImpedance：50 OhmNominal Gain：3 dBiV.S.W.R：≤1.5Cable Length：5m or others
CONTACT US
  • Antenna 433Mhz,3dbi with Magnetic base for Ham 5M
  • Antenna 433Mhz,3dbi with Magnetic base for Ham 5M
  • Antenna 433Mhz,3dbi with Magnetic base for Ham 5M
Description


Frequency Range（MHz） 433+/-15

Bandwidth（MHz） 30
VSWR ≤1.5
Gain（dBi） 3
Max Input power（W）50
Input Impedance（Ω） 50
Polarization Type :Vertical
Antenna High（mm） 170
Cable Length(mm) 5000mm or others
Cable Type RG174
Connector Type :SMA /SMB/SMC/BNC/FME/TNC/MCX /MMCX or other
Mounting Magnetic
Radiation :Omni-direction
Max Diameter :30mm
Min Diameter :1.5mm
Max wind speed :200km/h
