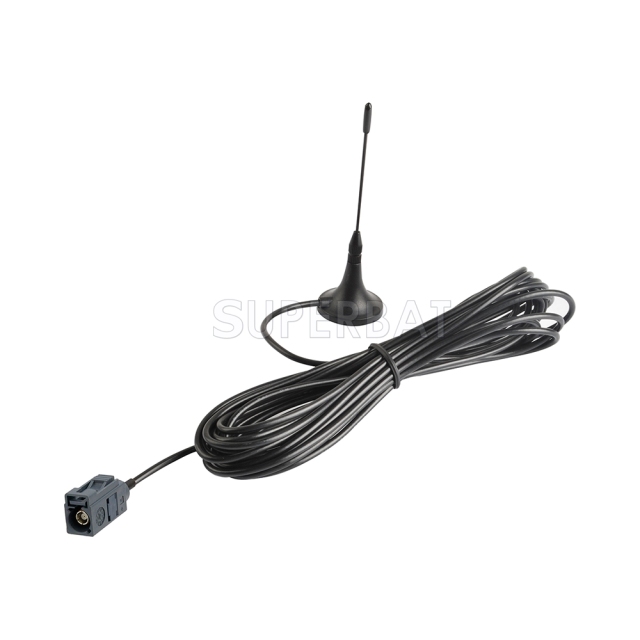

Antenna 868Mhz,3dbi fakra G jack straight 5M with Magnetic base for Ham radio

No.EA1-1829-F03GSJ-030-500
Type：868Mhz AntennaCenter Frequency：868MhzConnector Series：FakraConnector Polarity：StandardConnector Gender：Jack StraightImpedance：50 OhmNominal Gain：3 dBiV.S.W.R：≤1.5Cable Length：5m or others
CONTACT US
  • Antenna 868Mhz,3dbi fakra G jack straight 5M with Magnetic base for Ham radio
  • Antenna 868Mhz,3dbi fakra G jack straight 5M with Magnetic base for Ham radio
Description

Features:
Frequency Range（MHz）: 868
Bandwidth（MHz） 30
VSWR ≤1.5
Gain（dBi） 3
Max Input power（W） 60
Input Impedance（Ω） 50
Polarization Type Vertical
Antenna High（mm） 70
Total antenna height :95mm
Cable Length﹙mm﹚: 5000mm or others
Cable Type RG174

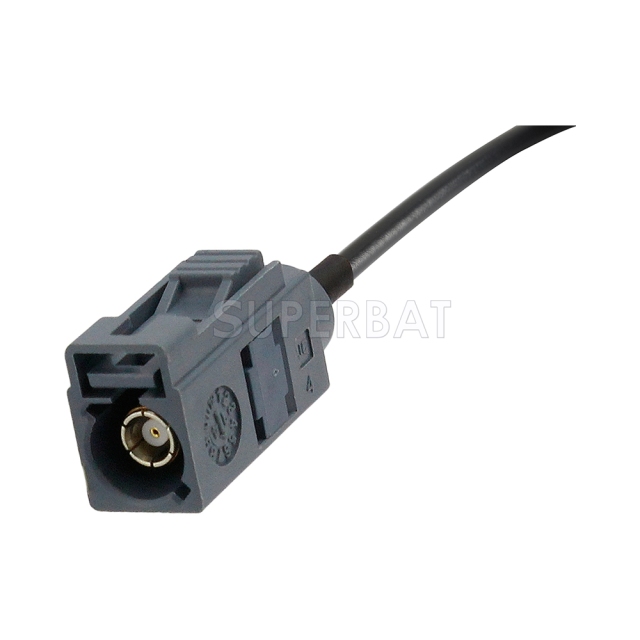

Connector Type: fakra "G" jack Grey connector (Default )/SMB/SMC/BNC/FME/TNC/MCX /MMCX or other
Weight: 0.080KG
Mounting Magnetic
