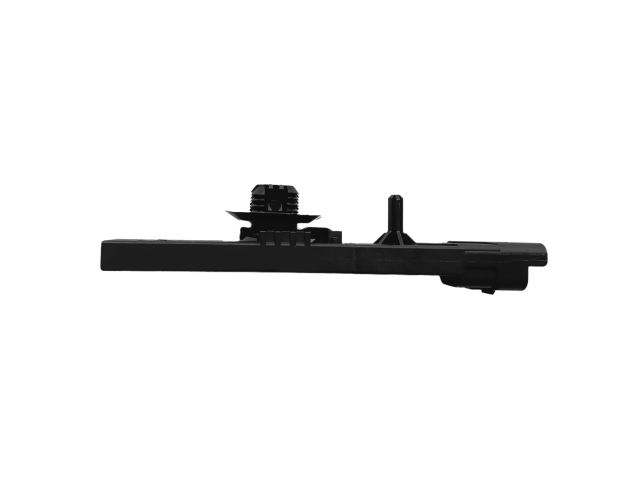

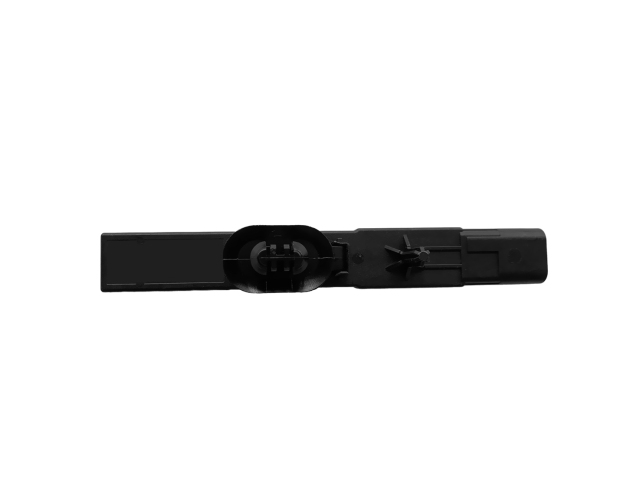

This is a car NFC antenna, it adopts hot channel flow low pressure injection molding, modular design, plug and play port design; In order to achieve keyless entry function, the built-in NFC, Bluetooth antenna is widely used, the user can put the key in the pocket or bag, and then walk up to the car, the car will automatically unlock.
• High Q
Internal use of high Q value magnetic rod, with all copper wire winding of inductor coil.
• High sensitivity
The internal use of high Q value magnetic rod inductance and a car gauge high voltage capacitor combination, accurate measurement of each inductance, capacitor parts, after passing the full inspection into the next process.
• Frequency precision
The internal use of high Q value magnetic rod inductor and a car gauge high voltage capacitor combination, after winding, welding, assembly, debugging, injection molding and other nearly 20 processes, 5 tests, sealed molding under specific conditions.
| Function | NFC |
| Resonant Frequency | 125KHz |
| V.S.W.R | < 2.0 |
| lmpedance | 50±3Ω |
| Polarization | Linear |
| Environmental Requirements | |
| Operating temperature | -40℃ ~ +85℃ |
| Protection grade | IP52 |
| Connector pulling force | ≥80N |
