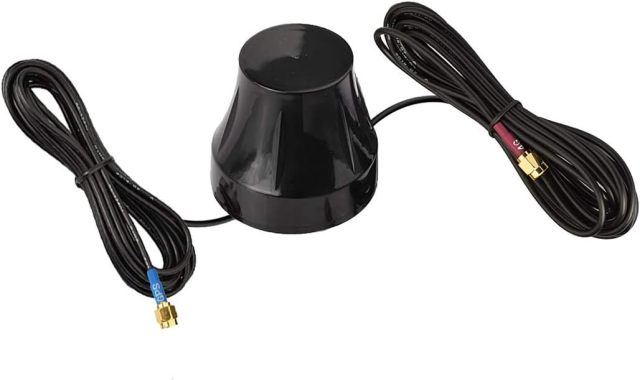

Specifications:
4G LTE Cellular Antenna Specification:
Frequency Range: 698-960 MHz, 1710-2170 MHz, 2300-2700 MHz
V.S.W.R: <2.0
Polarization: Linear
Gain: 5dBi
Impendance: 50Ω
GPS Antenna Specification:
Center Frequency: L1:1575.42MHz±1.023 MHz
Band Width： >9MHz
Polarization: RHCP
Gain: 2dBic（Zenith）
V.S.W.R: <1.5
Impendance: 50Ω
Axial Ratio: 3dB（max）
LNA Gain: 28±2dB
LNA Noise Figure: <1.5
LNA V.S.W.R: <2.0
LNA Supply Voltage: 2.2~5V DC
LNA Current Consumption: 5~15mA

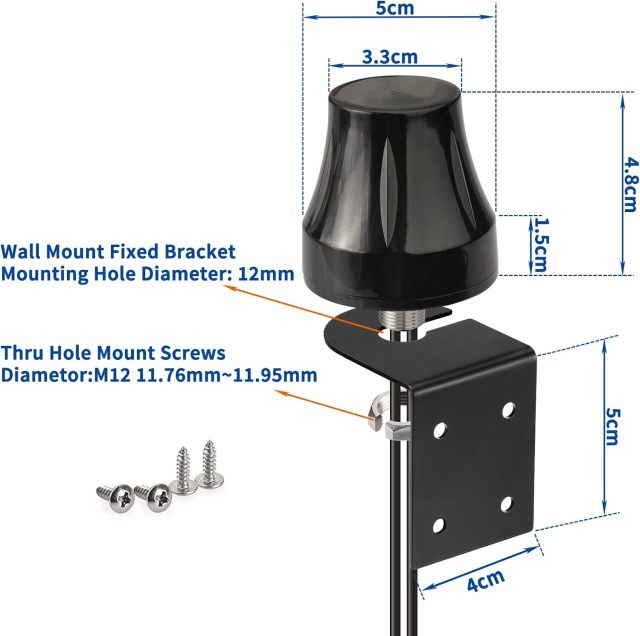

Mechanical:
Cable: RG174
Cable Length: 3 Meters

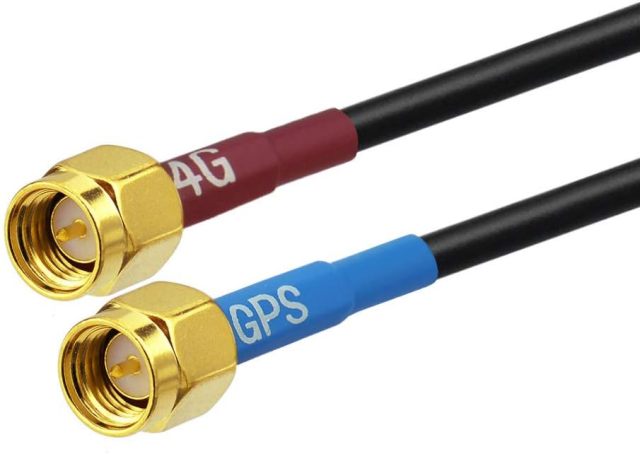

Connector: Dual SMA Male Connector
Material: ABS
Mounting Method: Adhesive Magnetic Mounting

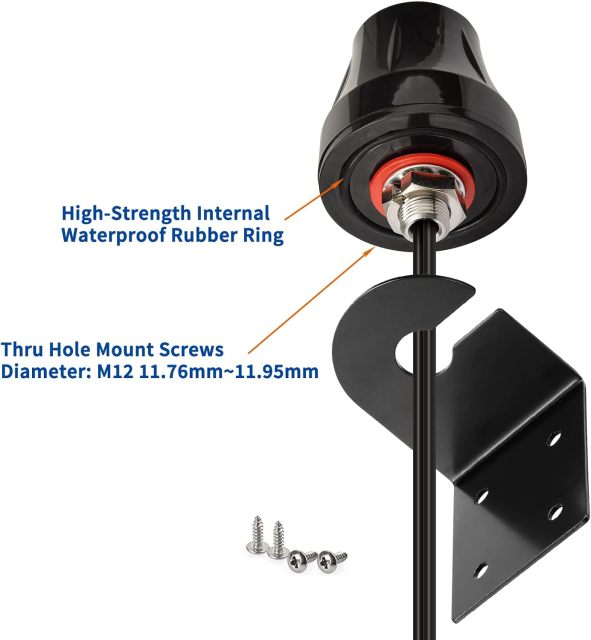

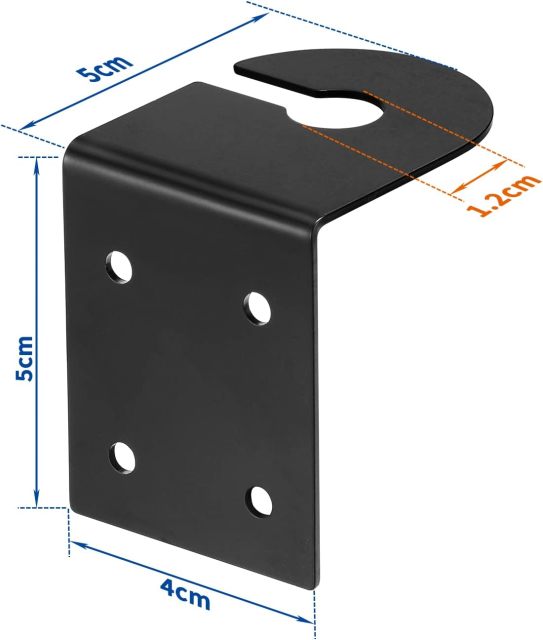

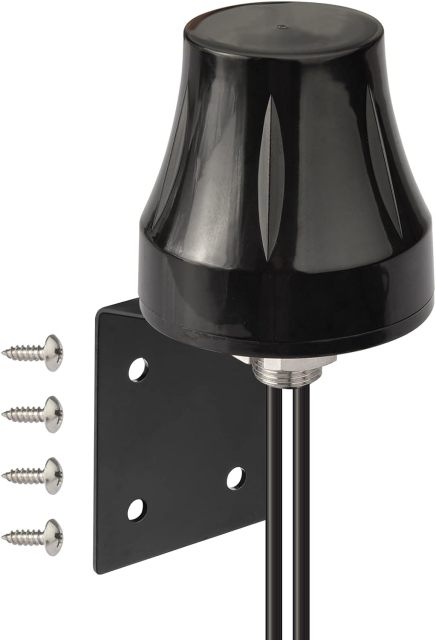

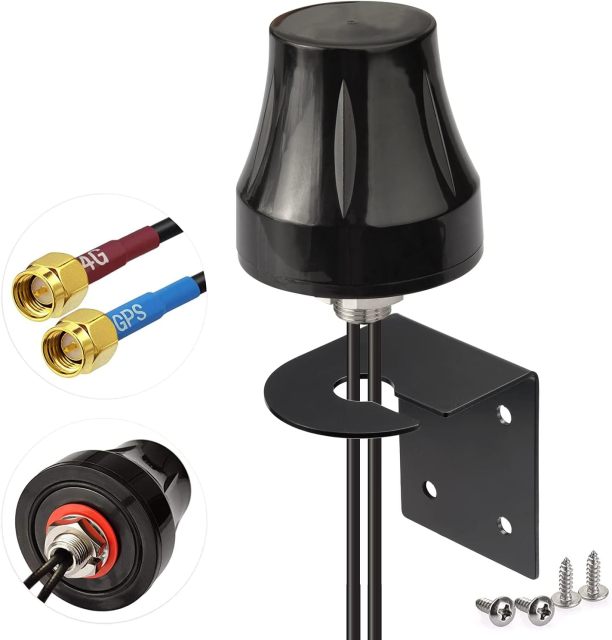

Package List: 1 x Antenna, 1 x Wall Mount Fixed Bracket, 4 x Self-tapping Screws (As the Picture Shown)
