Specification:
- Temperature Range: -55~+155°C (PE Cable -40~+85°C)
- Impedance: 70Ω
- VSWR: <1.2 Frequency Range: DC-3GHz
- Insertion Loss: ≤ 0.2dB/3GHz
- Withstanding Voltage: 2500V r.m.s at sea level
- Working Voltage : 1000Vr.m.s at sea level
- Insulation Resistance: ≥ 5000 MΩ
- Coupling nut retention force: 450N
- Durability: ≥ 500(cycles)
- Contact resistance:
- Center Contact: ≤1.5mΩ
- Outer Contact: ≤1mΩ
- Maximum power: 50W
- Discharge current capacity (kA@8/ 20μS): 10
- Materials and Plating: Body Brass, Nickel Plated, Teflon (PTFE) Insulators for sending Reliable Signal Every Time

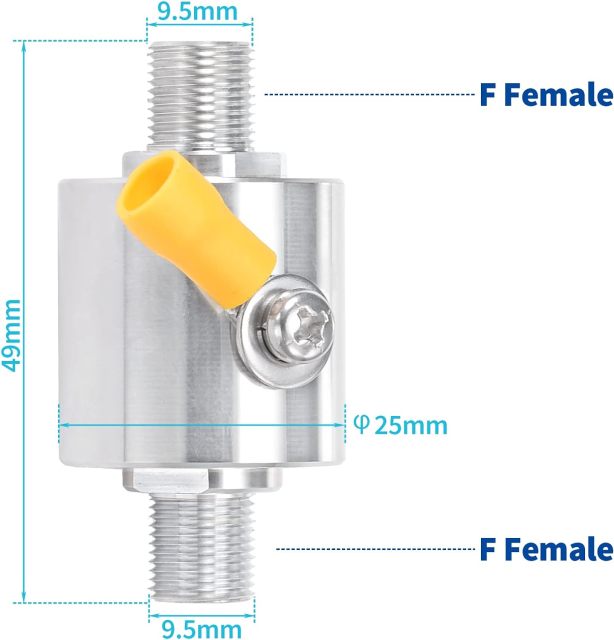

- Connector: F-Female to F-Female 75 Ohm
Packing List:

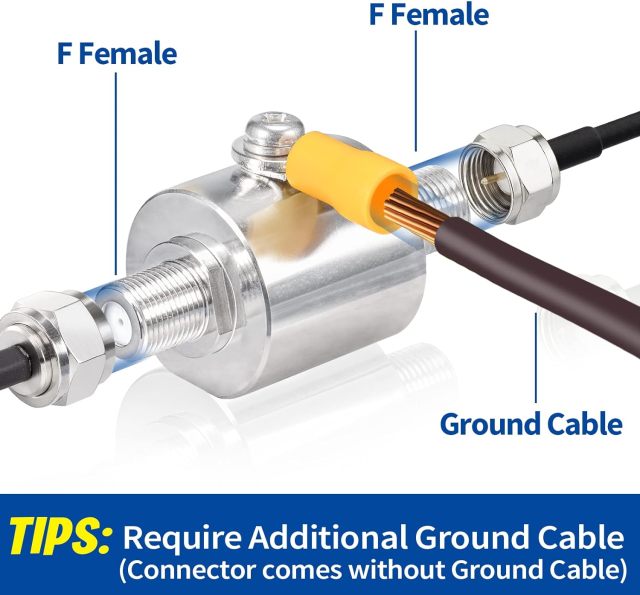

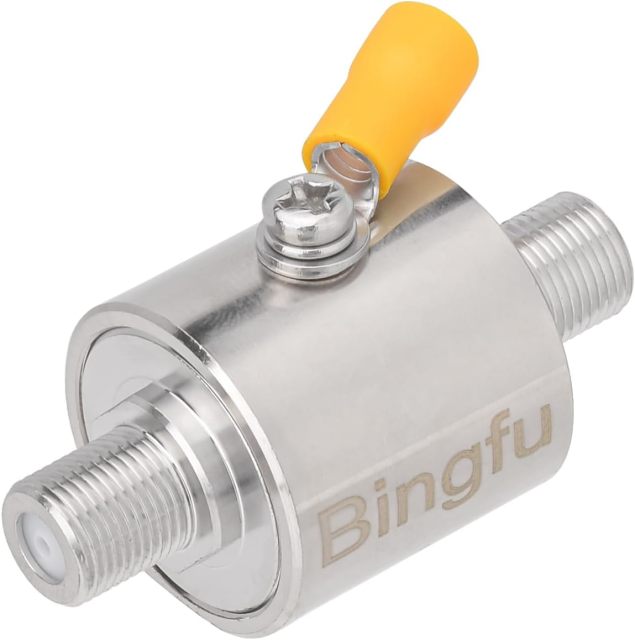

1 x Lightning Arrestor (Grounding power wire is NOT included)
