Specifications:
Gain: 7dBi
Frequency Range: VHF 136-174MHz, UHF 400-470MHz

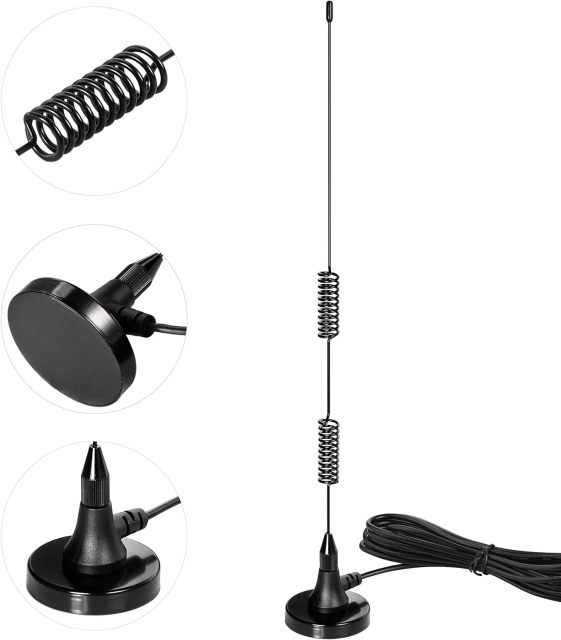

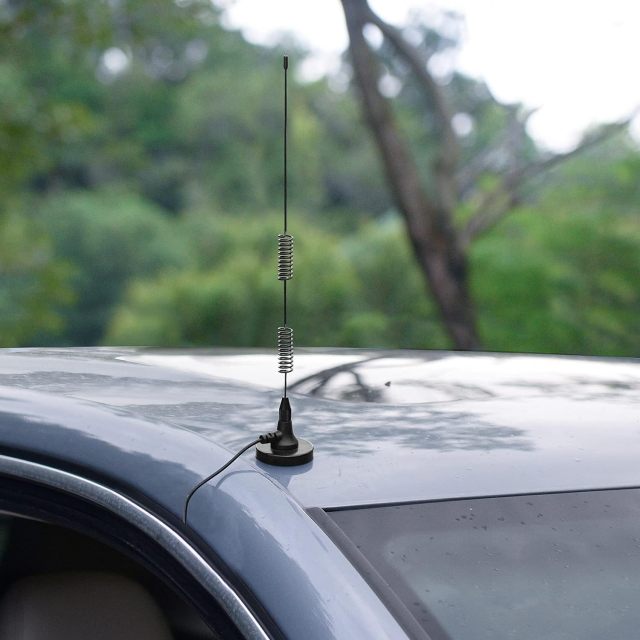

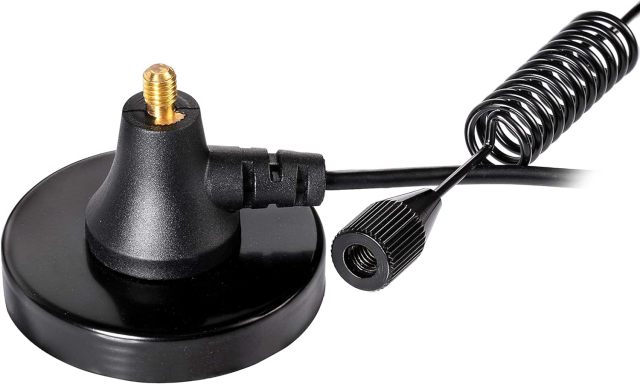

Feature: with Strong Magnetic Base Mount
VSWR: <2.0;
Impedance: 50 ohm;
Direction: Omni-directional;
Antenna Cable: 3 Meter RG174 Coaxial Cable

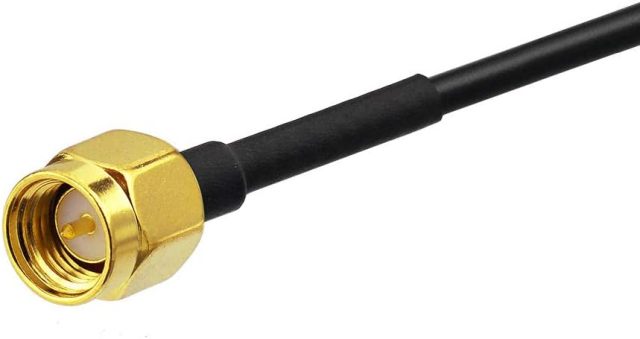

Cable Connector: SMA Male Connector

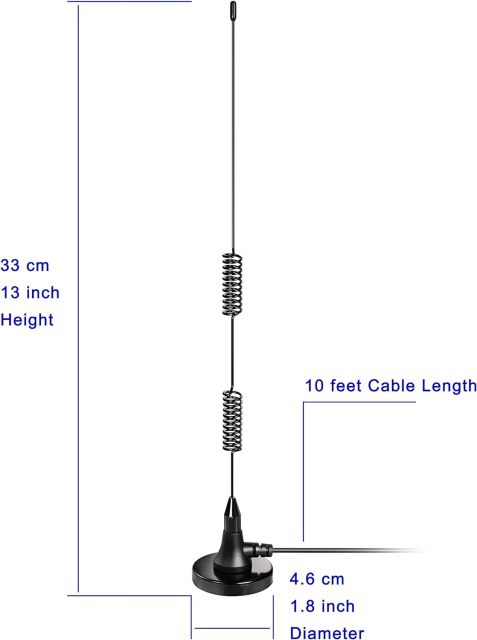

Mounting Base Diameter: 45mm;
Net Weight: 78g;
Operating Temperature: -20°С ~ +80°С
Storage Temperature: -30°С ~ +85°С

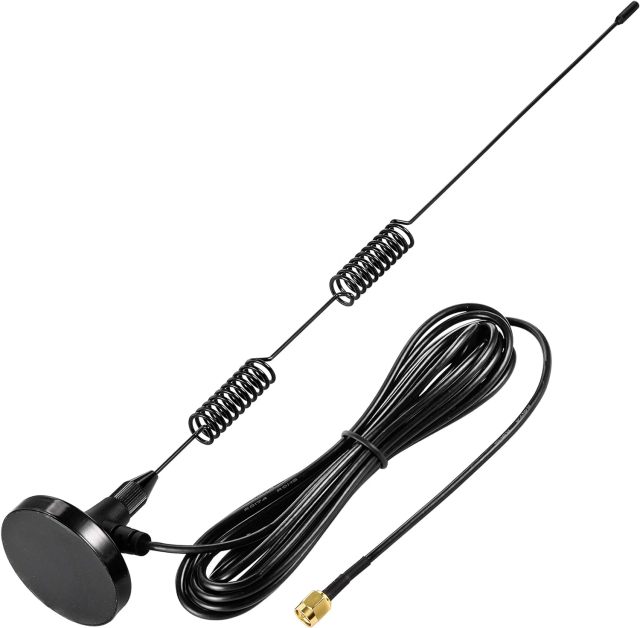

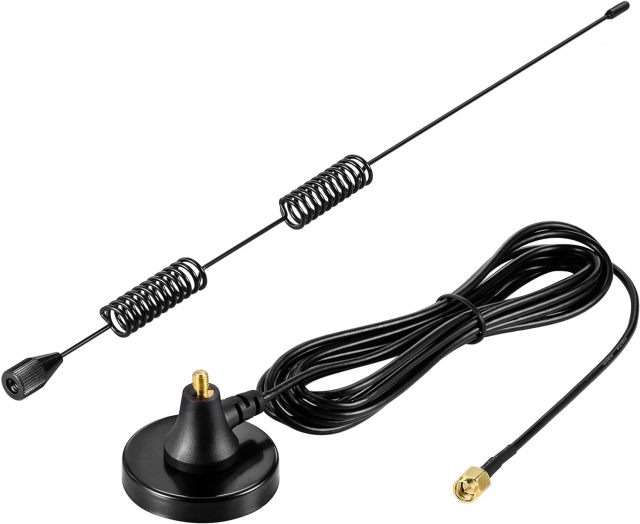

Package List: 1 x Antenna (As the Picture Shown)
Compatible with:
YAESU/Vertex Standard: VX-3R, VX-6R, VX-7R, VX-8R, VX-150, FT-60R, VX-160, VX-180, VX-400, VX-300, VX-800, FT- 270R, FT-250R,VX-230,VX-8d,VX-2R;
PUXING: PX-325, PX-333, PX-2R, PX-V6 PX-A6 PX-359 PX-358 PX-325;
BaoFeng: UV-3R UV-100 UV-200. For TYT: TH-F5 TH-UVF9 TH-UV3R TH-UVF8D TH-UVF9D;
