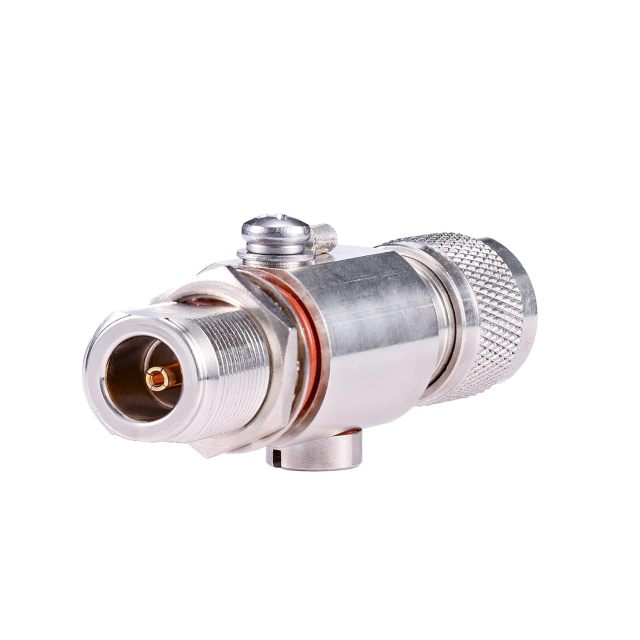

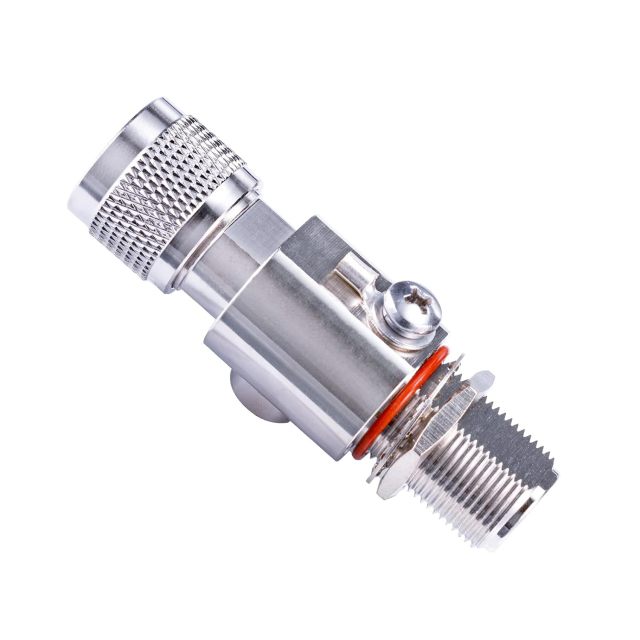

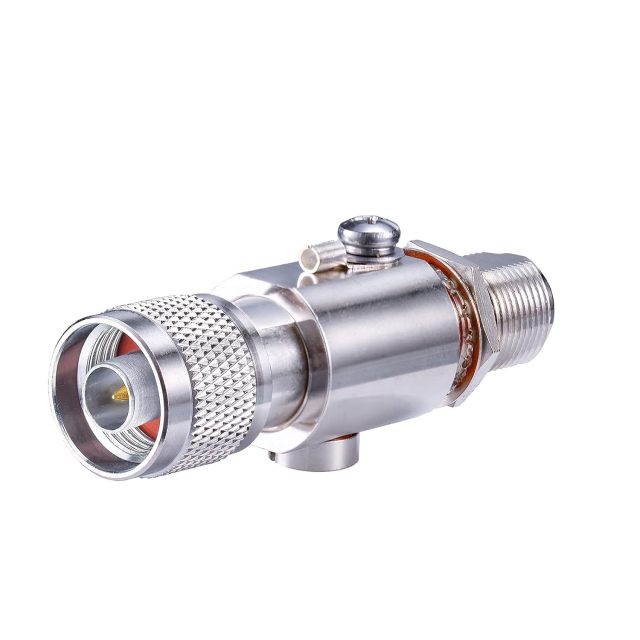

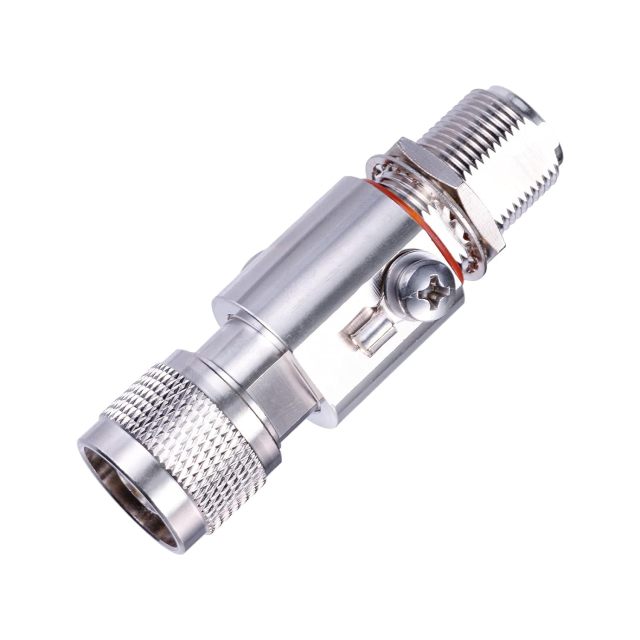

Bingfu N Type Lightning Arrestor 0-6GHz N Male to N Female Low Loss Coaxial Surge Protector

No.B09GGC1V5H
$16.99
CONTACT US
  • Bingfu N Type Lightning Arrestor 0-6GHz N Male to N Female Low Loss Coaxial Surge Protector
  • Bingfu N Type Lightning Arrestor 0-6GHz N Male to N Female Low Loss Coaxial Surge Protector
  • Bingfu N Type Lightning Arrestor 0-6GHz N Male to N Female Low Loss Coaxial Surge Protector
  • Bingfu N Type Lightning Arrestor 0-6GHz N Male to N Female Low Loss Coaxial Surge Protector
  • Bingfu N Type Lightning Arrestor 0-6GHz N Male to N Female Low Loss Coaxial Surge Protector
  • Bingfu N Type Lightning Arrestor 0-6GHz N Male to N Female Low Loss Coaxial Surge Protector
  • Bingfu N Type Lightning Arrestor 0-6GHz N Male to N Female Low Loss Coaxial Surge Protector
  • Bingfu N Type Lightning Arrestor 0-6GHz N Male to N Female Low Loss Coaxial Surge Protector
Description

Description:

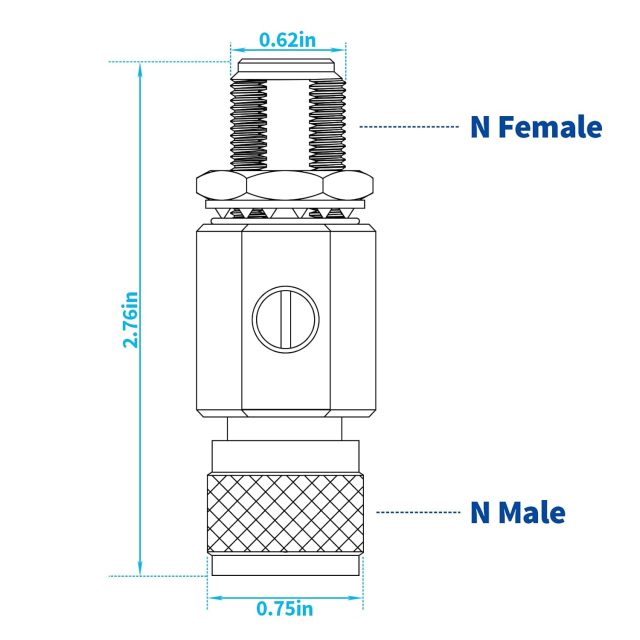

Connectors: N-Male to N-Female
Impedance: 50 ohms
Package list: 1 piece surge protector

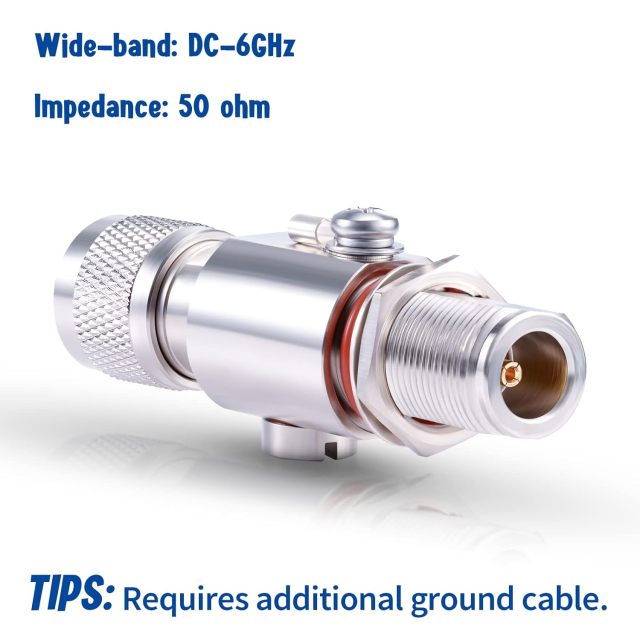

Frequency range: DC-6GHz;
VSWR: ≤1.5;
Insertion loss: <0.8dB;
100V insulation resistance: >10000K ohm
Standard discharge current: 5KA
Maximum discharge current: 10KA
Response time: ≤100ns (s)
Temperature range: -40~+70℃
Packing List:

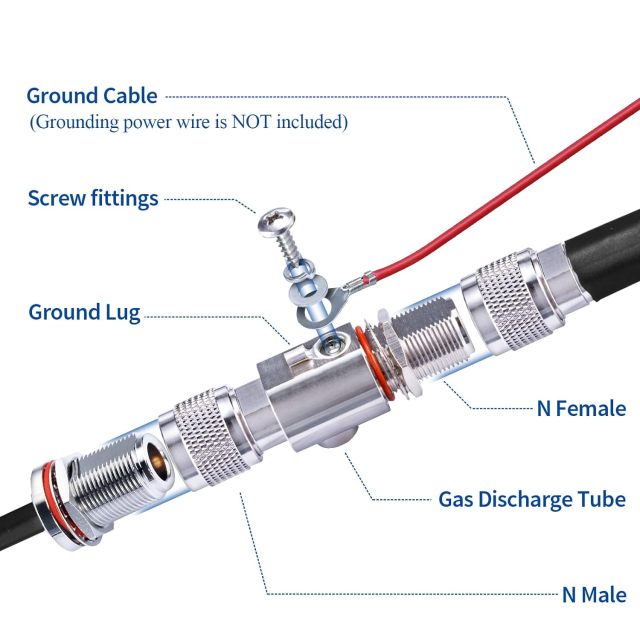

1 x Lightning Arrester (Grounding power wire is NOT included)
