Frequency :824-960/1710-2690MHz
Gain:4.2 Max
Impedance: 50Ω
Polarization type: linear

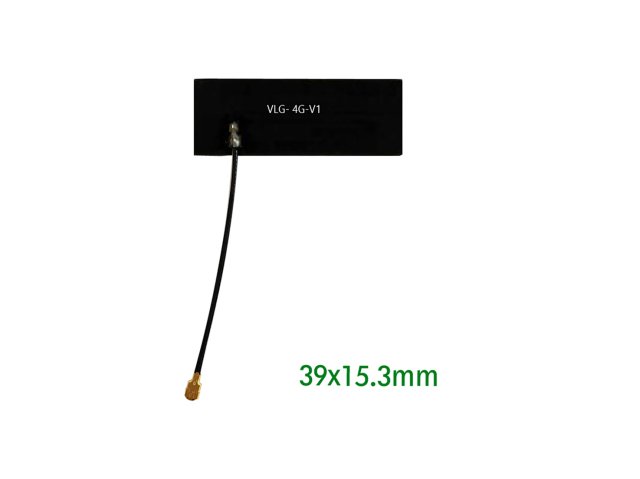

Dimension : 39mm(L)×15.3mm(W)
Cable length and spec: 80mm (IPEX+φ1.13，Customizable)
This built-in 4G antenna has the characteristics of small size, excellent performance, and high integration, making it an ideal choice for wireless connectivity solutions VLG can customize the size, shape, and position of antennas according to different device requirements to achieve optimal signal reception and meet diverse product design requirements
Suitable for: mobile phones, computers, security monitoring, drones, unmanned vending, shared devices, wearable devices, smart healthcare, agricultural technology, mobile POS machines and payment terminals, etc
• High efficiency and low loss characteristics, high flexibility and customization, can meet the compatibility of all networks
• Small size, easy to install: 39×15.3mm, 3M double-sided adhesive installation
| Electrical/mechanical parameters: | |
| Frequency Range: | 824-960/1710-2690MHz |
| VSWR: | 7.6-3.58/2.67-4.51 |
| Input Impendence: | 50Ω |
| Gain: | 4.2 Max |
| Polarization: | linear polarization |
| Working Temperature: | -20 °C to +80°C |
| Antenna Size: | 39×15.3mm |
| Cable Type & Length: | 80mm (φ1.13，Customizable) |
| Connect Type: | IPEX(Customizable) |
| Environmental protection: | ROHS |
