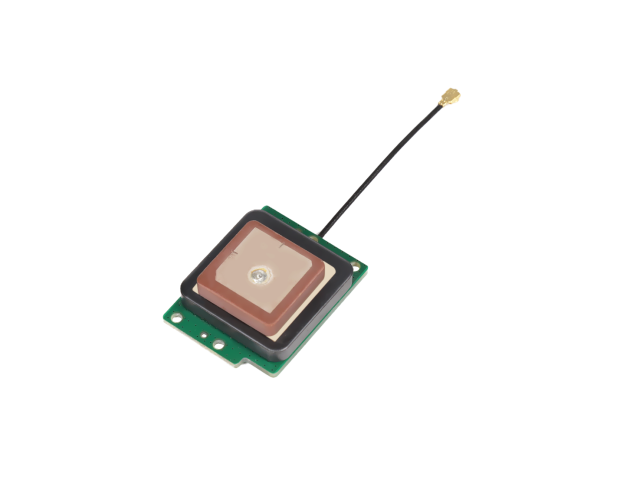

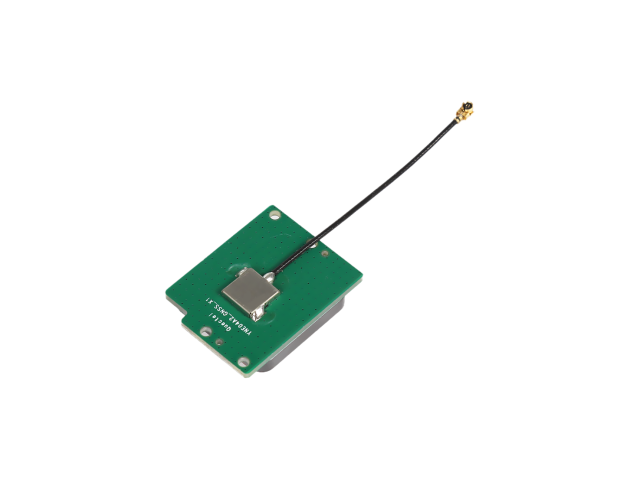

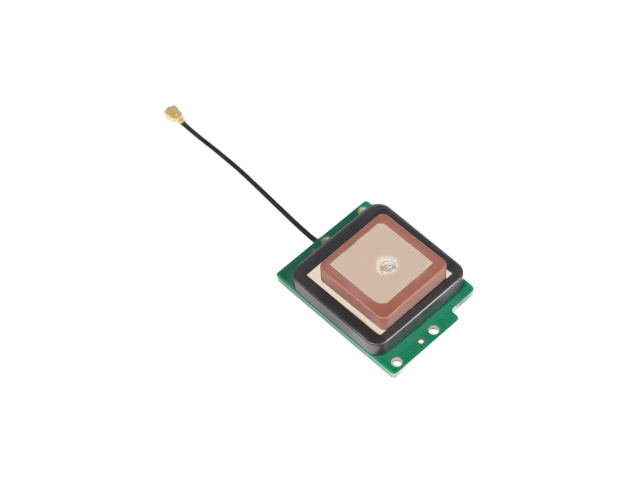

This product is a high-performance L1/L5 dual-band passive ceramic antenna that integrates advanced multilayer ceramic technology and precision PCB (printed circuit board) design, and is designed to meet the needs of high-precision navigation and positioning. The antenna adopts a unique 25*25*4mm stacked 18*18*4mm structure, combined with an efficient shielding cover and IPEX generation 1 terminal (with 1.13mm wire), ensuring signal stability and anti-interference capabilities. Its center frequency covers the L1 (1575MHz) and L5 (1176MHz) bands of the GPS system, providing strong support for a variety of GNSS applications.
• Dual-frequency design:
Supports both L1 and L5 frequency bands, suitable for application scenarios that require high-precision positioning and multi-frequency signal enhancement.
• Compact structure:
Through the multilayer ceramic design, the antenna is miniaturized and lightweight, which is easy to integrate into various terminal devices.
• Efficient shielding:
The built-in shielding cover effectively reduces external electromagnetic interference and improves the purity and stability of signal reception.
• High-quality terminal wire:
Adopts IPEX generation terminal and 1.13mm wire, reliable connection, high transmission efficiency, suitable for a variety of connection needs.
• Wide temperature operation:
The operating temperature range is from -40℃ to +85℃, adapting to various harsh environmental conditions, ensuring stable operation around the clock.
• Environmentally friendly materials:
Fully compliant with ROHS standards, using environmentally friendly materials, and environmentally friendly.
| Passive Electrical Specifications | |
| Frequency | GPS L5: 1176.45MHz / GPS L1: 1575.42MHz |
| VSWR |
≤2 |
| Gain |
≤3 dBi |
| Polarization | RHCP |
| Impedance | 50Ω |
| Mechanical Specifications | |
| Working Temperature | -45 °C to +85 °C |
| Antenna Size | 33 × 25 × 11.95mm |
| Connectors and cables | Customizable |
| Environmental protection | ROHS |
