Output VSWR ≤2.0
Output Impedance 50ohm
Dimensions 41mm(L)×43mm(W)×8.8mm(H) typ
Peak Gain ≥1 dB
Efficiency ≥55%
Polarization R.H.C.P
Customizable
Applications: Car navigation systems, drones and robots, IoT trackers, high-end smart devices, emergency communication systems.
1. Broadband coverage: The central operating frequency range is wide, covering 1561.098MHz to 1575.42MHz, suitable for a variety of wireless communication protocols.
2. Low standing wave ratio: The output voltage standing wave ratio (VSWR) is ≤2.0, which ensures efficient energy conversion during signal transmission and reduces signal reflection and energy loss.
3. Standard impedance: The output impedance is 50 ohms, which is compatible with most wireless communication devices on the market and is easy to integrate and connect.
4. Efficient gain: The peak gain is ≥1dB, which effectively enhances the radiation intensity and coverage of the signal.
High conversion efficiency: The antenna efficiency is ≥55%, indicating that most of the input electrical energy is effectively converted into radiation energy, which improves energy utilization efficiency.
5. Right-hand circular polarization: The R.H.C.P (right-hand circular polarization) method is adopted to enhance the anti-interference ability of the signal, especially in complex multipath propagation environments.
6. Wide temperature operation: It can work stably in a wide temperature range of -40℃ to +80℃, and adapt to various extreme climatic conditions.

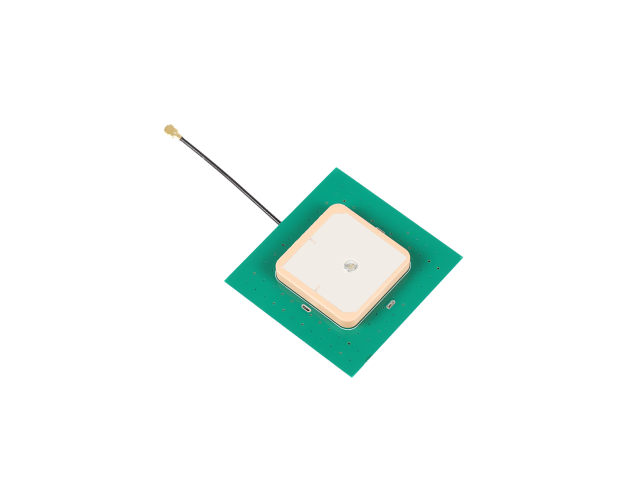

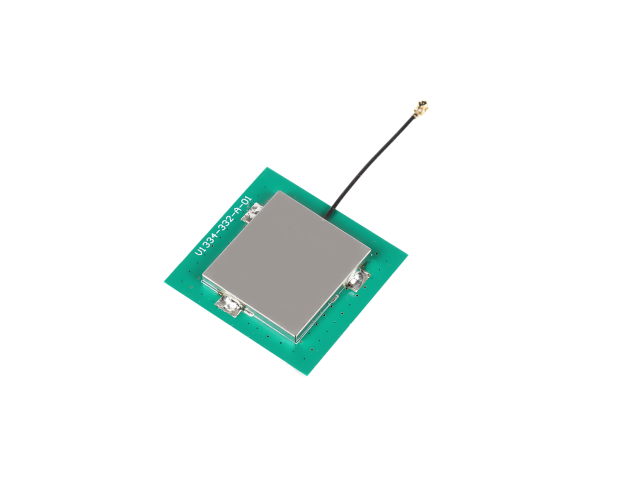

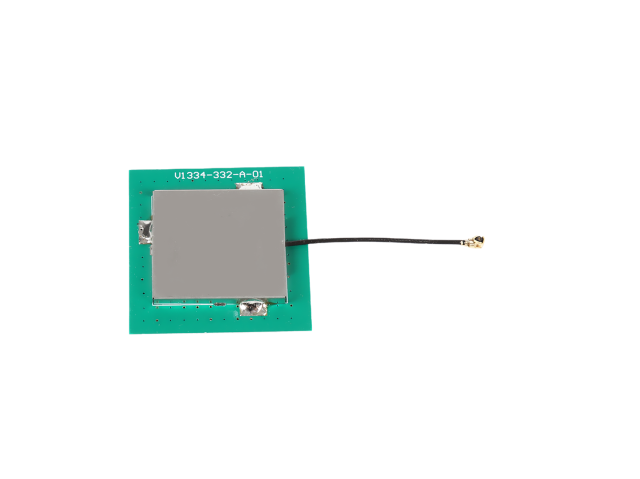

7. Compact design: The overall size is 41mm (L) × 43mm (W) × 8.8mm (H). Combined with the small internal ceramic components, the antenna is small in size, light in weight, and easy to install and integrate.
| Frequency | 1561.098MHz~1575.42MHz |
| Output VSWR | ≤2.0 |
| Output Impedance | 50ohm |
| Peak Gain | ≥1 dB |
| Dimensions | 41mm(L)×43mm(W)×8.8mm(H) |
| Polarization | R.H.C.P |
| Efficiency | ≥55% |
| Temperature | -40℃ to +80℃ |
