Main specifications/performance:
Frequency :1561.098MHz~1575.42MHz
Impedance: 50Ω
Polarization type: RHCP
Dimension : 25mm(L)×25mm(W)
Connectors and cables: IPEX+φ1.13(Customizable)

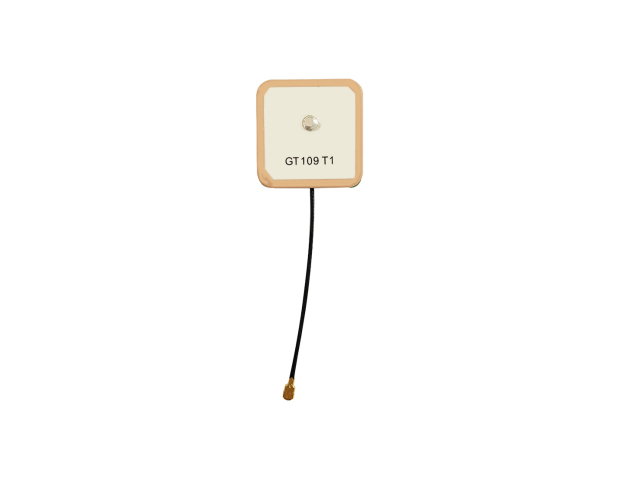

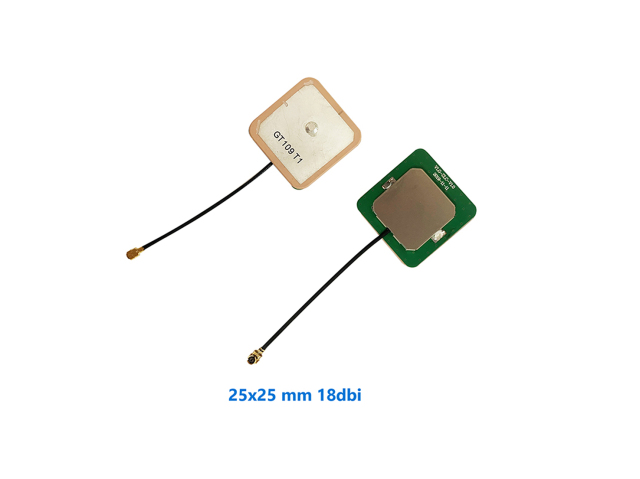

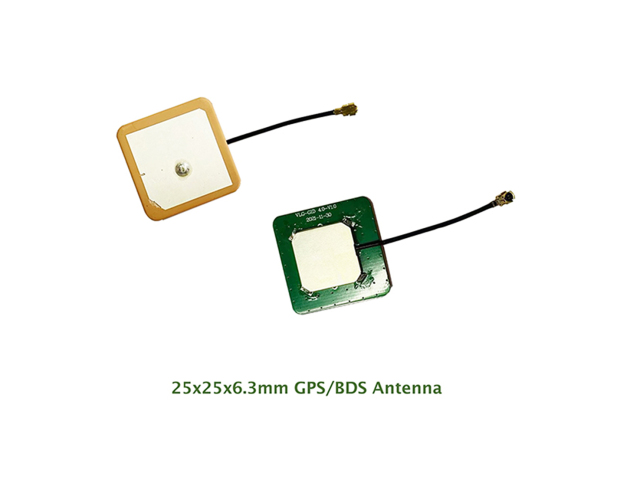

This is a ceramic antenna with small size, high gain, and support for GPS+BDS dual frequency (1561.098MHz~1575.42MHz), which can achieve joint positioning and navigation of multiple systems. It has the advantages of high stability and strong anti-interference ability.
Suitable for: trackers, cars, electric vehicles, navigation equipment, instruments, etc.
• Dual band support
Passive and active design, suitable for different application needs.
• Excellent anti-interference performance design
Able to significantly reduce electromagnetic interference generated by the surrounding environment and electronic devices.
| Antenna Element,LNA&Cable | |
| Center Frequency |
1561.098MHz~1575.42MHz |
| Voltage | DC 3.0±0.3V |
| Current | 5mA max |
| LNA Gain | 18±2dBi typ |
| Noise Figure | ≤2.0dB max |
| Bandwidth | 20MHz min |
| Output VSWR | ≤2.0 max |
| Output Impedance | 50Ω |

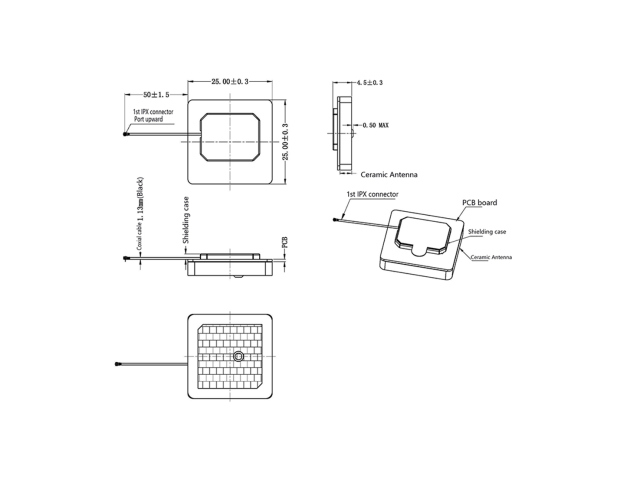

| Dimensions | 25mm(L)×25mm(W)×4.5mm(H) \Φ1.13 Coaxial cable (customizable) |
| Connector | IPEX(Customizable) |
| Passive Antenna | |
| Dimensions | 25mm(L)×25mm(W)×2.0mm(H) typ |
| Center Frequency | 1561.098MHz-1575.42MHz |
| Bandwidth | 20MHz min |
| Peak Gain | ≥1.0 dBi typ |
| Efficiency | ≥40% |
| Output VSWR | ≤2.0dB max |
| Output Impedance |
50Ω |
| Polarization | RHCP |
