Feature:
1)Combine GPS, DAB and FM/AM Antenna Application.

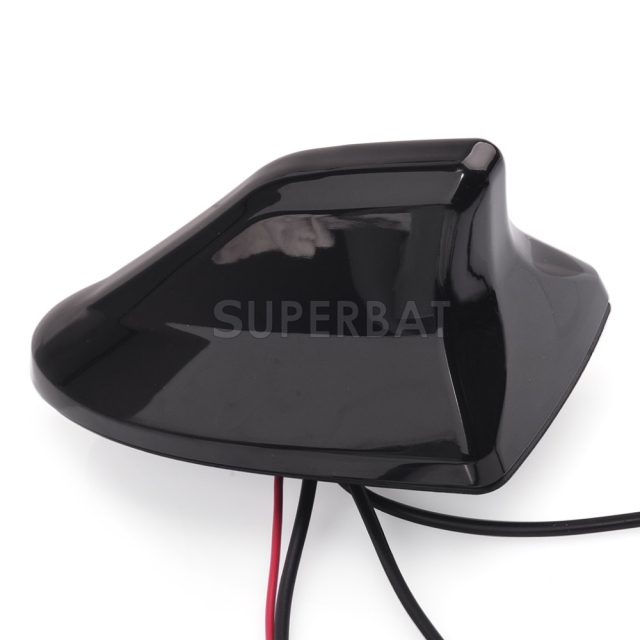

2)Car Top Roof Thru Hole Mount.

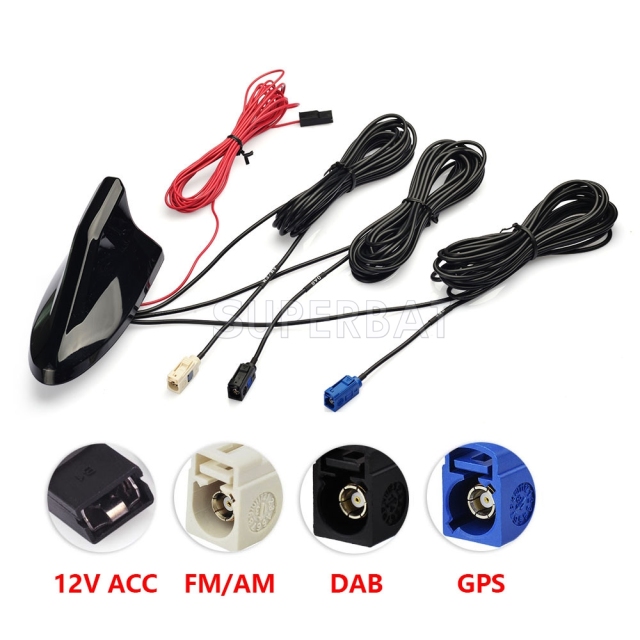

3)5 Meters of Antenna Adapter Cable and Signal Amplifier Power Supply Cable.
4)Apply to BMW, Audi and Volkswagen Genuine DAB Module and Navigation System.
FM/AM/DAB Radio Antenna Specification:
Working Voltage: DC 9V-16V
Working current: ≤60mA
DAB Frequency: 170MHz～240MHz (Band III), 1452MHz～1492MHz (L-Band)
FM/AM Frequency: 522～1710KHz(AM), 87.5～108MHz(FM)
Output Gain: 18dB±3dB (Band III), 8dB ±3dB (L-Band) , 13±3dB(AM), 16±3dB(FM)
Output impedance: 50Ω
V.S.W.R: ≤2.5:1 (FM/DAB)
Noise: ≤3dB(FM/DAB)
Cable length: 5 meters

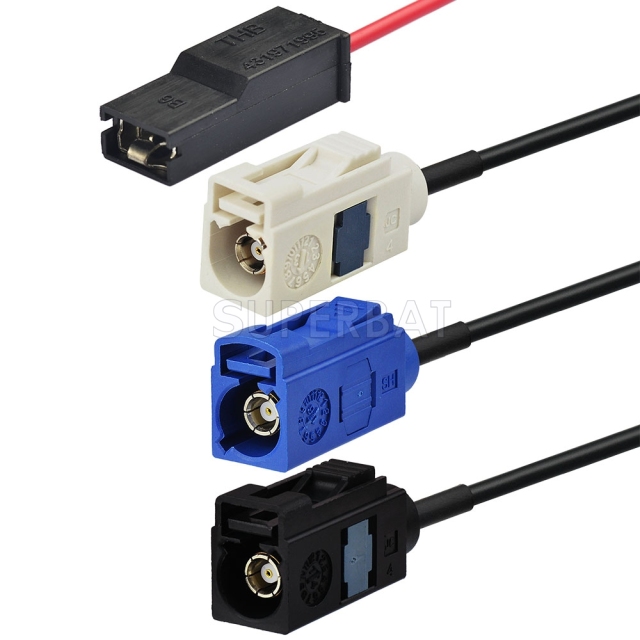

Cable Connector: Fakra B White Female(FM/AM Radio)
Fakra A Black Female(DAB Digital Radio)
GPS Navigation Antenna Specification:
Working Voltage: DC 3V-5V
Working current: 10mA≤I≤30mA
Frequency：1575.42 ±1.023MHz
Output Gain: 28dB±3dB
Output impedance: 50Ω
V.S.W.R: ≤2.0:1
Noise: ≤1.5dB
Cable length: 5 meters
Cable Connector: Fakra C Blue Female(GPS)

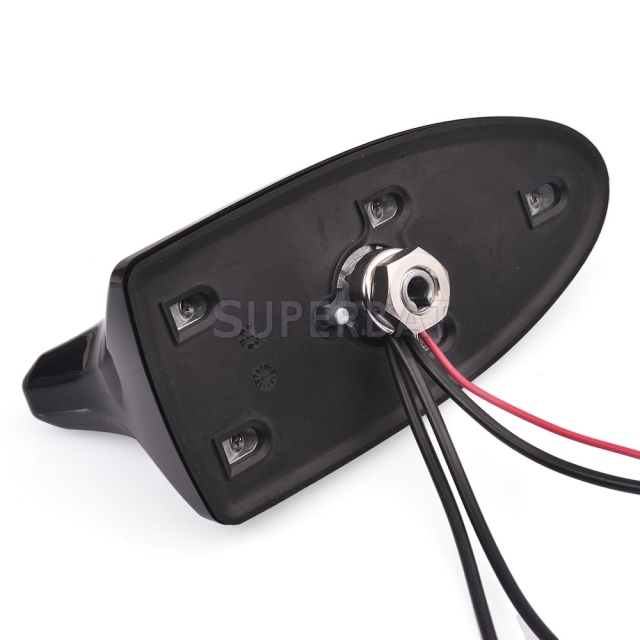

Roof Mounting: Drilling Hole Diameter 10.5mm

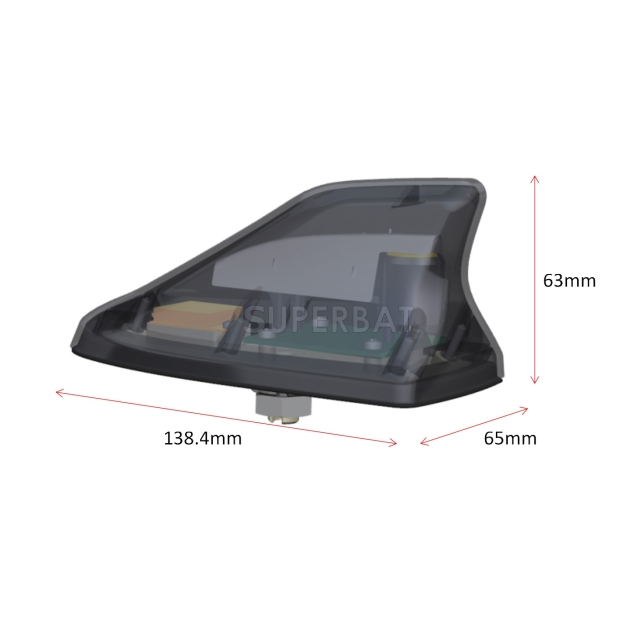

Dimensions (Length*Width*Height) :138.4mm * 65mm * 63mm
Net Weight: 505g
Packaging list:
1 x Antenna (Including Mounting Nut)
