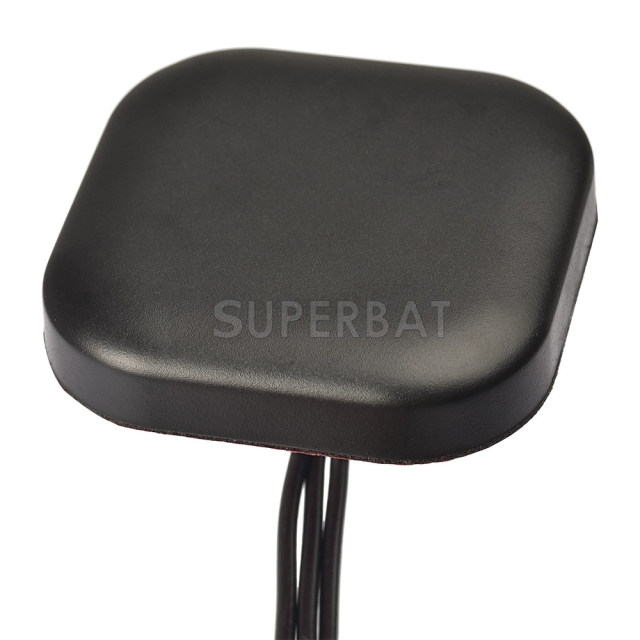

Car Top Roof Multi-Band Antenna GPS+GSM+WiFi Combined Antenna SMA Plug Male Connector with 3M Extension Cable
Description
GPS,GSM,WIFI funtions 3 in 1.
(i)Dieletric Antenna
Center Frequency 1575.42MHz±3 MHz
V.S.W.R 1.5:1
Band Width ±5 MHz
Impendence 50 ohm
Peak Gain >3dBic Based on 7×7cm ground plane
Gain Coverage >-4dBic at –90°<0<+90°(over 75% Volume)
Polarization RHCP
(ii)GSM Antenna
Frequency 824MHz~894MHz;880MHz~960MHz;1710MHz~1990MHz
V.S.W.R 2.0:1
Impendence 50 ohm
Typical Gain 2dBi+/-1dB@850MHZ;
2dBi+/-1dB@900MHZ;
1dBi+/-1dB@1800MHZ; 1dBi+/-1dB@1900MHZ
(iii)WiFi Antenna
Frequency Range 2400-2500 MHz
VSWR ≤1.5
Gain 2.15dBi
Impedance 50 ohm
Polarization Type Vertical
(iv)LNA/Filter
LNA Gain(Without cable) 28dB Typical
Noise Figure 1.5dB
Filter Out Band Attenuation (f0=1575.42 MHZ)
7dB Min f0+/-20MHZ ;
20dB Min f0+/-50MHZ;
30dB Min f0+/-100MHZ
V.S.W.R <2.0
DC Voltage 2.7V/3.0V/3.3V/5.0V/3.0V to 5.0V/other
DC Current 11mA Max
(v)Mechanical
Weight <240gram
Size 70mmx70mmx14mm

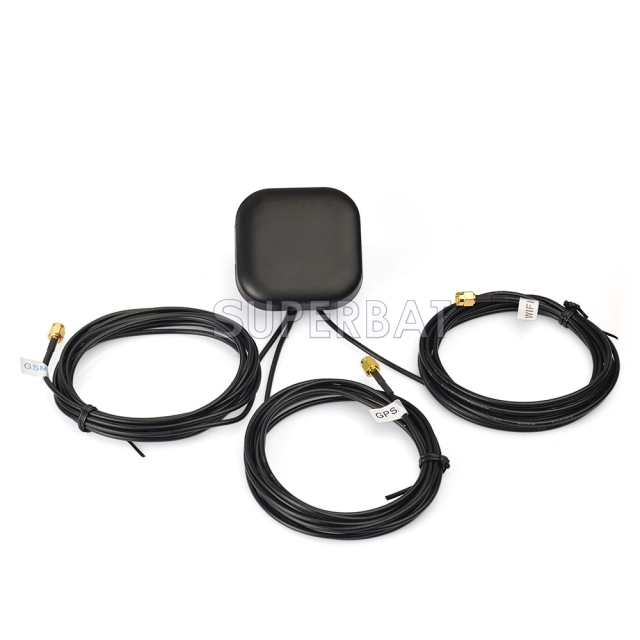

Cable
GPS-----RG174 300CM
GSM-----RG174 300CM
WiFi-----RG174 300CM

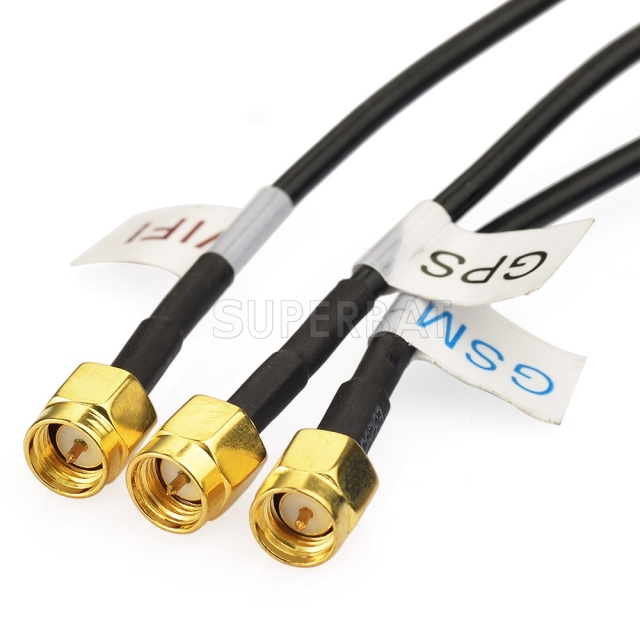

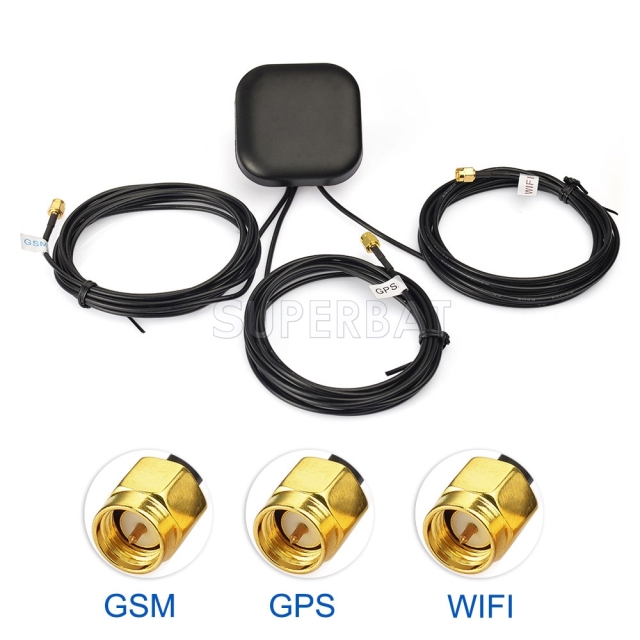

Connector
GPS-----SMA Male default/SMA/SMB/SMC/BNC/FME/TNC/MCX /MMCX /Fakra/AVIC/WICLIC in straight or right angle, can be customized
GSM-----SMA Male default/SMA/SMB/SMC/BNC/FME/TNC/MCX /MMCX /Fakra/AVIC/WICLIC in straight or right angle, can be customized
WiFi-----SMA Male default/SMA/SMB/SMC/BNC/FME/TNC/MCX /MMCX /Fakra/AVIC/WICLIC in straight or right angle, can be customized

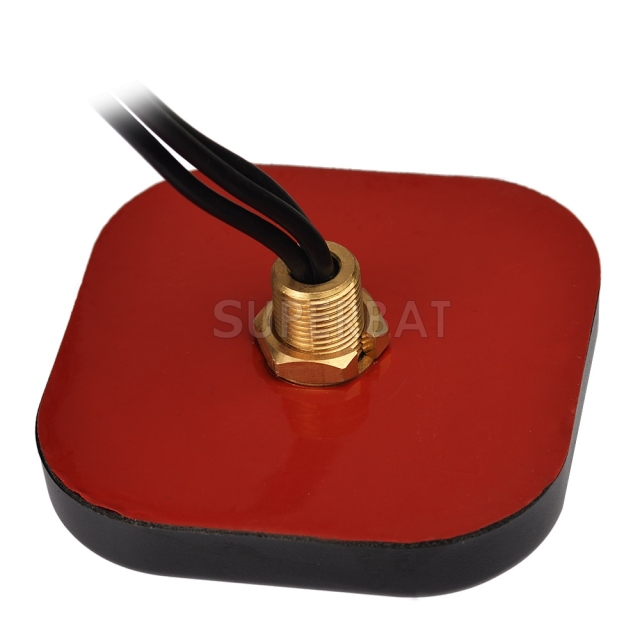

Mounting Screw Mounting
Housing Black
(vi) Environmental
Working Temp. -40℃~+85℃
Storage Temp. -45℃~+100℃
Vibration Sine sweep 1g(0-p)10~50~10Hz each axis
Humidity Humidity95%~100%RH
Weatherproof 100%Waterproof
