Specifications:
Input connector: DIN (F)
Outputs: FM/AM: DIN (M),DAB: SMB(F)

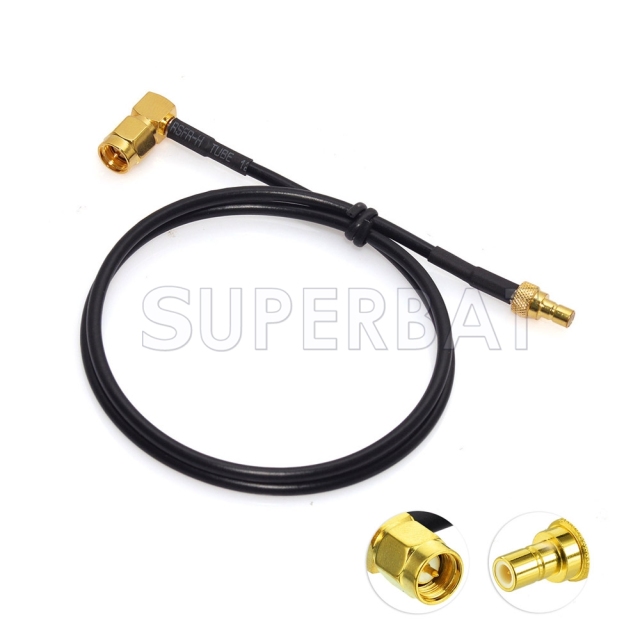

Aerial adaptor cable connector :SMB(F) to SMA(M)
Aerial adaptor cable:RG174, 50CM
Requires +12 volt supply

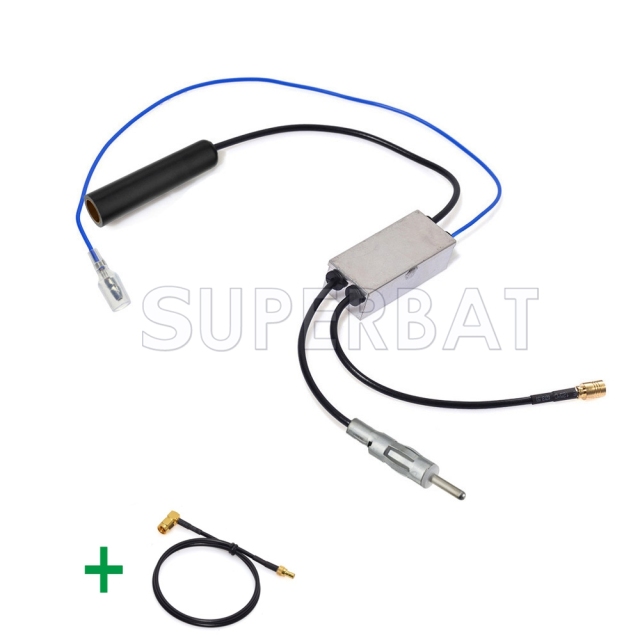

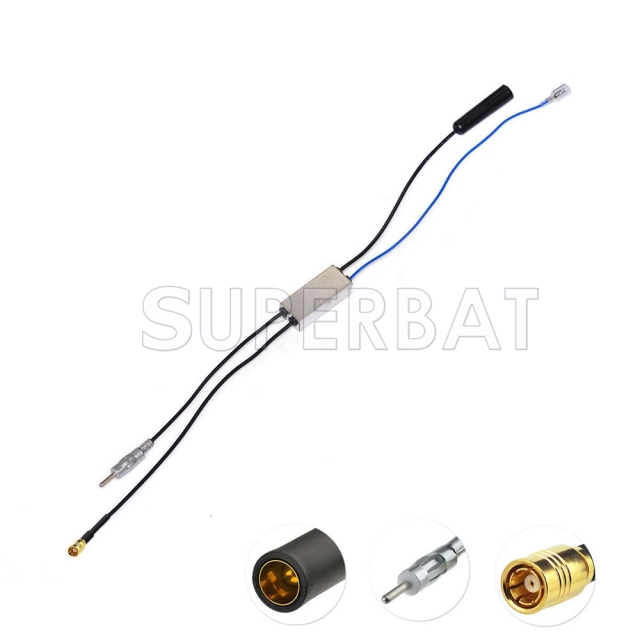

Package included:1pcs DAB radio aerial converter
1pcs SMA to SMB Aerial adaptor cable 50CM
Advantages:
Converts existing FM/AM aerials so that they can be used with DAB radios.
DAB/DAB+/DMB-A compatible
Uses existing FM/AM aerial.
Retains original appearance of vehicle
Small, neat and hidden.
as required in many recent European cars
Listing Suitable for the following DAB radios：
AutoDAB All models
Beat DAB
Beat 400 485
Blaupunkt DAB
Connects 2 CTDAB-2
Dual DAB CAR1
Goodmans GFMTDBA10
Caliber Caliber DAB except PMT-700D
C-KO DAB
Clarion Clarion DAB
Clarion DAB302E
Clarity CCE203-DAB
Grundig DAB
JVC DAB
Kenwood DAB
Kinetic All in-Car DAB
pioneer All in-car DAB except GEX-P900DAB
philips CEM.....series
pure Highway H240Di H260D
Sonichi SB50-DAB
Sony DAB
In-Phase All in- car DAB except ProDAB
Cautions:
Will NOT work with amplified aerials such as Beesting, built in the Glass etc.
Performance somewhat unpredictable.
Works best when the cables between the converter and FM/AM aerial are kept as short as possible.
No need to install an additional DAB Antenna when installing an aftermarket DAB Tuner.
