Specifications:
Size approx: 70 x 25 x 10 mm
Signal cable lengths: 30 cm
Power cable length: 20cm
Input connector: DIN (F)
Outputs: FM/AM: DIN (M),DAB:SMB (M)

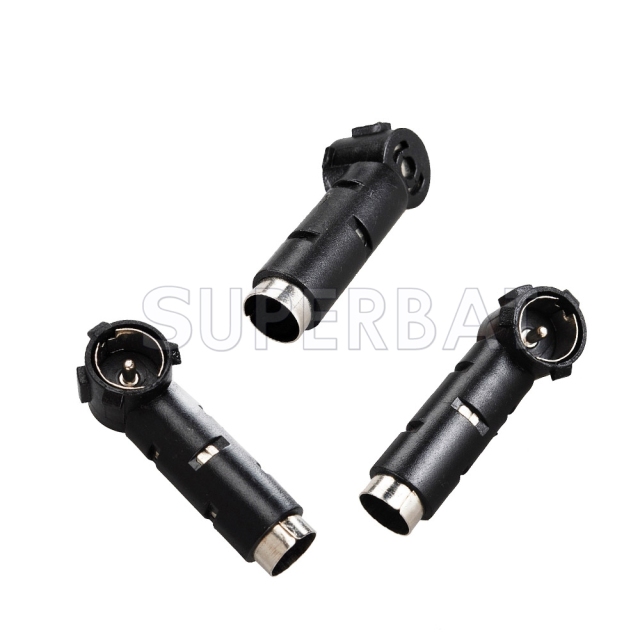

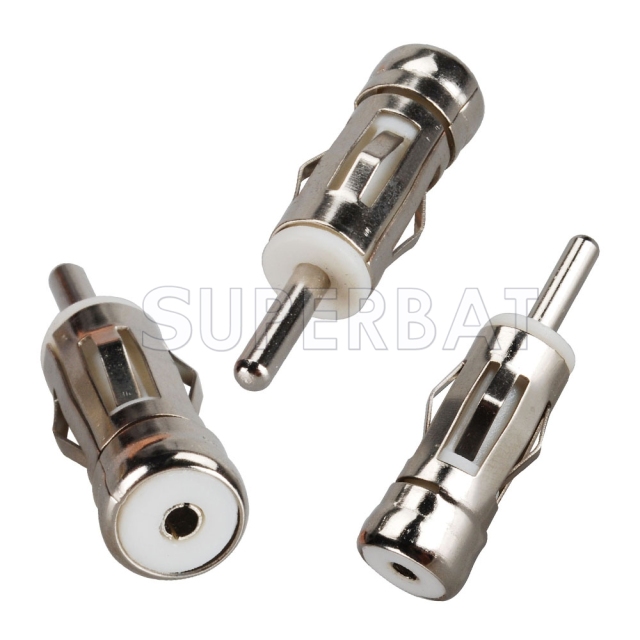

Adapters:DIN(M) to ISO(F) and ISO(M) Adapter to DIN(F) FM/AM Adapter
Working Frequency:Band III 174MHz～230MHz
Requires +12 volt supply

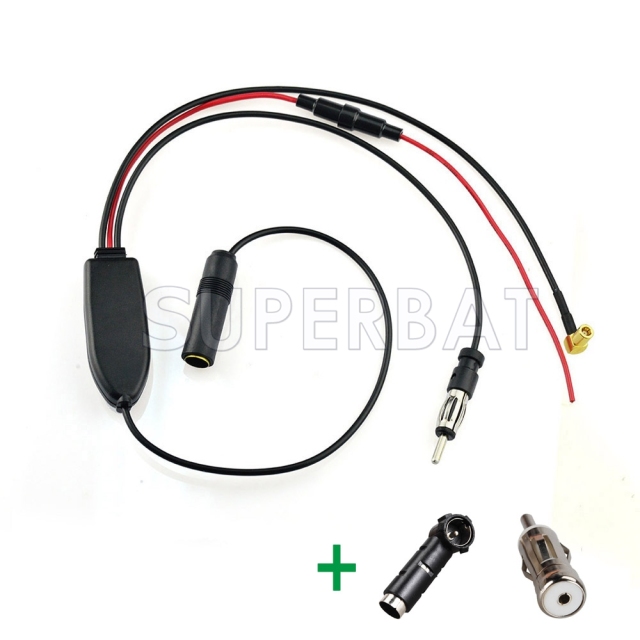

Package included:1pcs DAB radio aerial converter
1pc DIN(M) to ISO(F) connectors
1pc ISO(M) to DIN(F) connectors
Advantages:
Converts existing FM/AM aerials so that they can be used with DAB radios.
DAB/DAB+/DMB-A compatible
Uses existing FM/AM aerial.
Retains original appearance of vehicle
Small, neat and hidden.
as required in many recent European cars
Listing Suitable for the following DAB radios：
Alpine DAB except Ezi-DAB
Beat DAB except 400 & 485
Blaupunkt DAB
Caliber Caliber DAB except PMT-700D
C-KO DAB
Clarion Clarion DAB except DAB302E
Clarity CCE203-DAB
Grundig DAB
JVC DAB
Kenwood DAB
Kinetic All in-Car DAB
pioneer All in-car DAB except GEX-P900DAB
philips CEM.....series
pure Highway H240Di H260D
Sonichi SB50-DAB
Sony DAB
Cautions:
Will NOT work with amplified aerials such as Beesting, built in the Glass etc.
Performance somewhat unpredictable.
Works best when the cables between the converter and FM/AM aerial are kept as short as possible.
DAB Band III only.
Will not receive L-Band (To the best of our knowledge the only countries broadcasting or considering DAB on L-Band are:Canada/Czech Republic/Germany/Malaysia/Mexico/Monaco)
