Specifications:
DAB
Frequency:174MHz～240MHz (Band III)
Impedence :50 Ω
VSWR:≤2.0:1

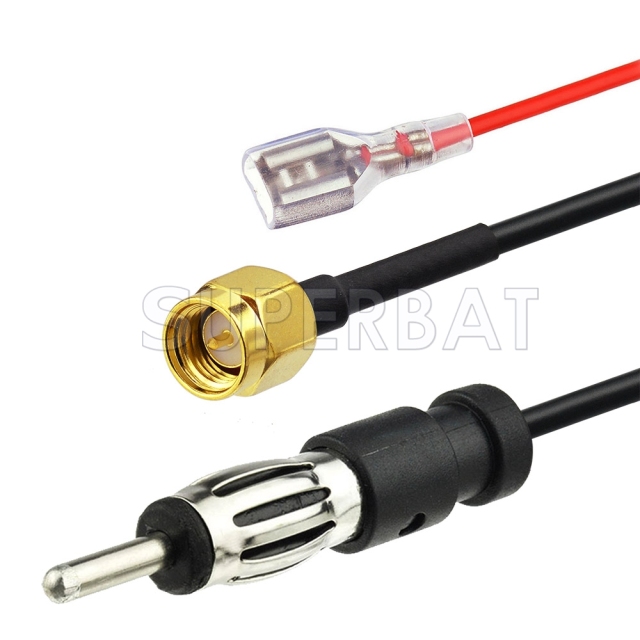

Connector :SMA Male
Cable:5m RG174
FM
Frequency: 87.5-108 MHz
Impedence : 50 Ω
VSWR:≤2.5:1
Connector:DIN Male
Cable: 5m RG174
Voltage : 12v direct feed for both DAB an AM/FM
Current Consumption : 50mA

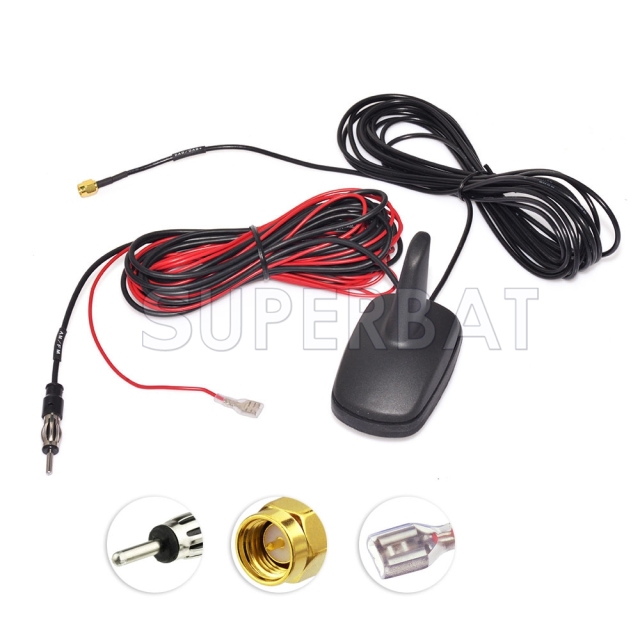

Package included:5m DAB/FM Car Aerial
Advantages:
Very neat and stylish.

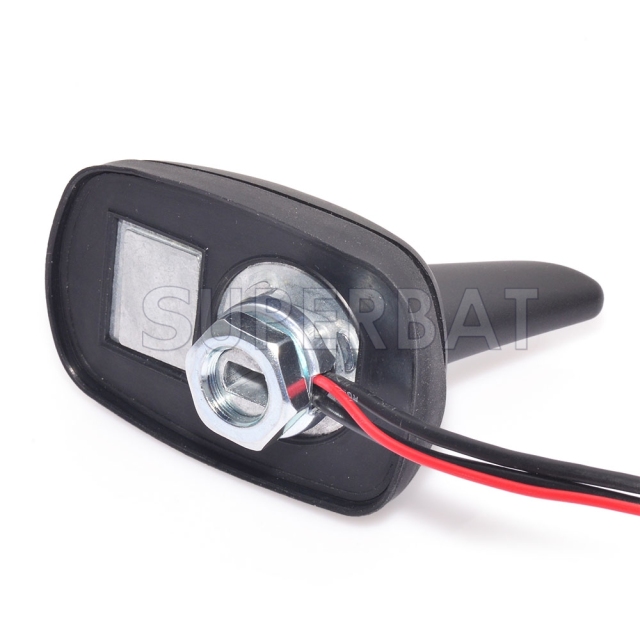

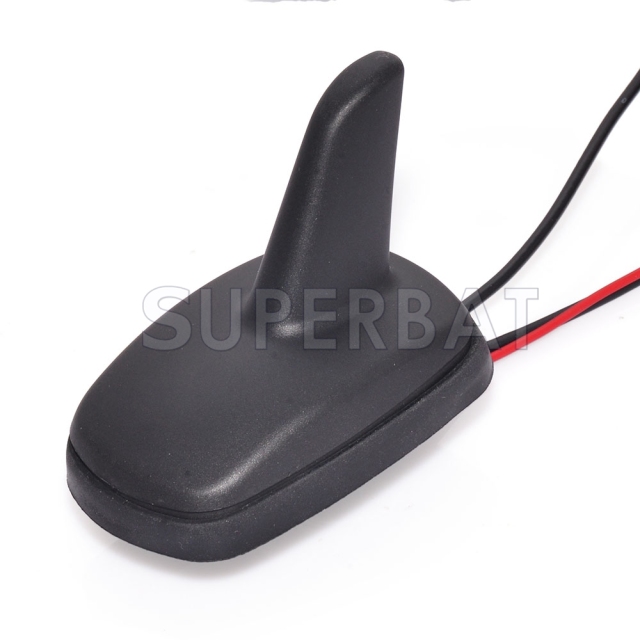

Roof mount DAB car radio aerial.
No need to unscrew mast for carwash, etc.
Can also be fitted to wing, boot lid etc. (at slight expense of performance)
Vandal resistant.
Amplified.
Listing Suitable for the following DAB radios：
AutoDAB All models
Beat 400 485
Clarion DAB302E
Connects 2 CTDAB-2
Dual DAB CAR1
Goodmans GFMTDBA10
In-Phase All in- car DAB except ProDAB
Cautions:
DAB / FM only.
FM reception good, but not up to a top quality, full rod aerial.
Not designed for AM reception; will nevertheless receive strong MW signals.
Mounting surface must be flat to within 1.5mm.
Must not be mounted on a panel whose underside is exposed to the elements.
Max panel thickness: 2.5mm
