Specifications:
DAB
Frequency:174MHz～240MHz (Band III) 1452MHz～1492MHz (L-Band)
Impedence :50 Ω
VSWR:≤2.0:1
Connector :FARKA“G” Male
power supply extema:+12v
Cable:30cm RG174
Aerial Replacement Cable :Fakra-SMA RG174 5m
FM
Frequency: 87.5-108 MHz
Impedence : 50 Ω
VSWR:≤2.5:1
Connector:FAKRA“B” Male
power supply extemal:+12v
Cable: 30cm RG174
Aerial Replacement Cable :Fakra-DIN RG174 5m

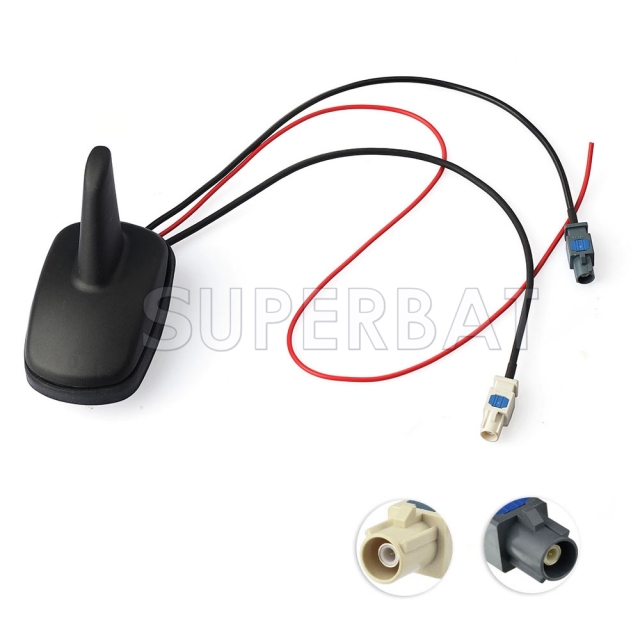

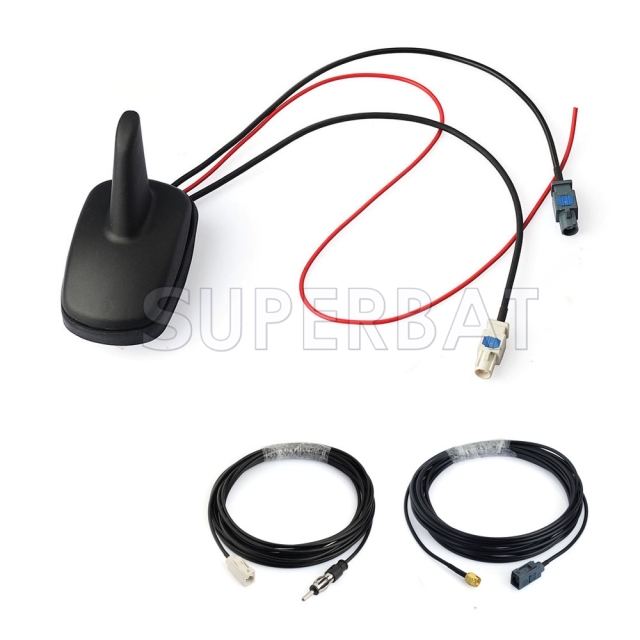

Package included:1pcs DAB/FM Car Aerial

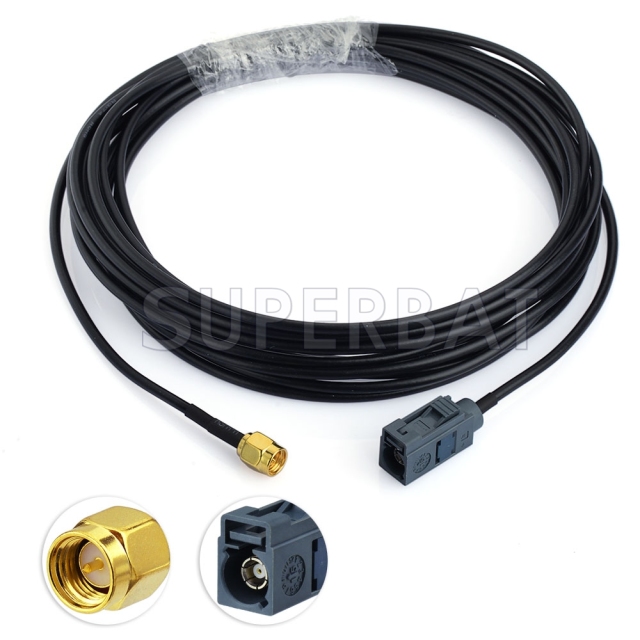

1pcs Fakra to SMA 5m Aerial Replacement Cable

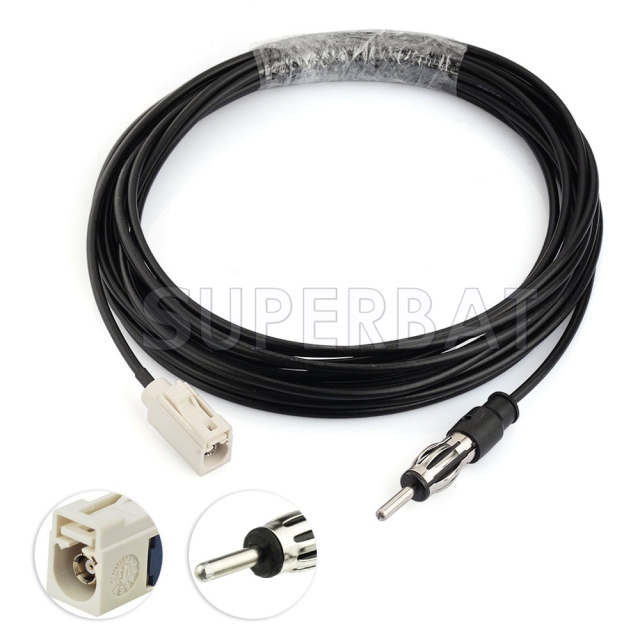

1pcs Fakra to DIN 5m Aerial Replacement Cable
Advantages:
Very neat and stylish.
Roof mount DAB car radio aerial.
No need to unscrew mast for carwash, etc.
Can also be fitted to wing, boot lid etc. (at slight expense of performance)
Vandal resistant.
Amplified.
Listing Suitable for the following DAB radios：
Alpine Ezi-DAB
pure Highway 300Di
AutoDAB All models
Beat 400 485
Clarion DAB302E
Connects 2 CTDAB-2
Dual DAB CAR1
Goodmans GFMTDBA10
In-Phase All in- car DAB except ProDAB
Cautions:
DAB / FM only.
FM reception good, but not up to a top quality, full rod aerial.
Not designed for AM reception; will nevertheless receive strong MW signals.
Mounting surface must be flat to within 1.5mm.
Must not be mounted on a panel whose underside is exposed to the elements.
Max panel thickness: 2.5mm
