Specifications:
DAB
Frequency:174MHz～240MHz (Band III) 1452MHz～1492MHz (L-Band)
Impedence :50 Ω
Amplification：20dB
VSWR:≤2.0:1

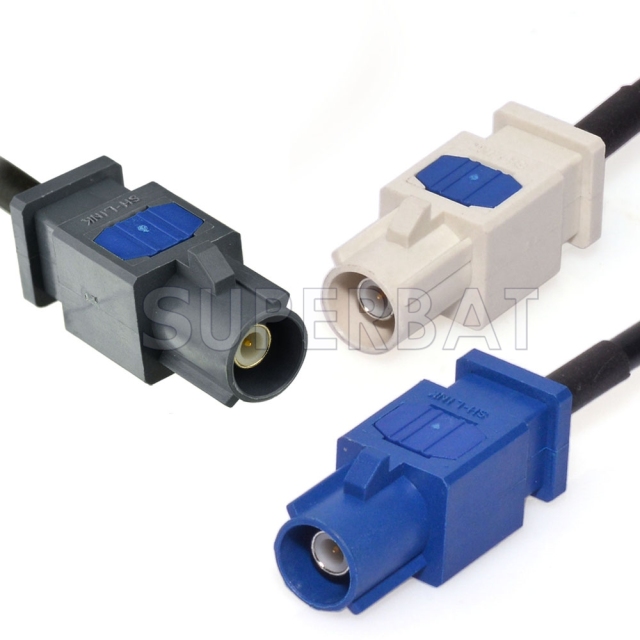

Connector :Fakra“G” Male
Cable:5m RG174
GPS
Frequency:1575.42MHz
Impedence :50 Ω
Amplification:28±3db
VSWR:≤1.5:1
Gain:32dbi
Connector: FAKRA“C” Male
Cable: 5m RG174
FM
Frequency: 87.5-108 MHz
Impedence : 50 Ω
Amplification:20dB
VSWR:≤2.5:1
Connector:FAKRA“B” Male
Cable: 5m RG174
Voltage : 12v direct feed for both DAB an FM
Current Consumption : 50mA

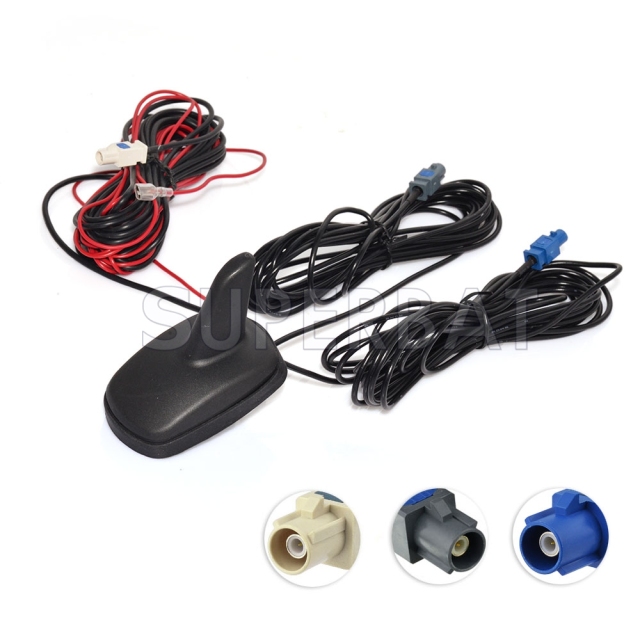

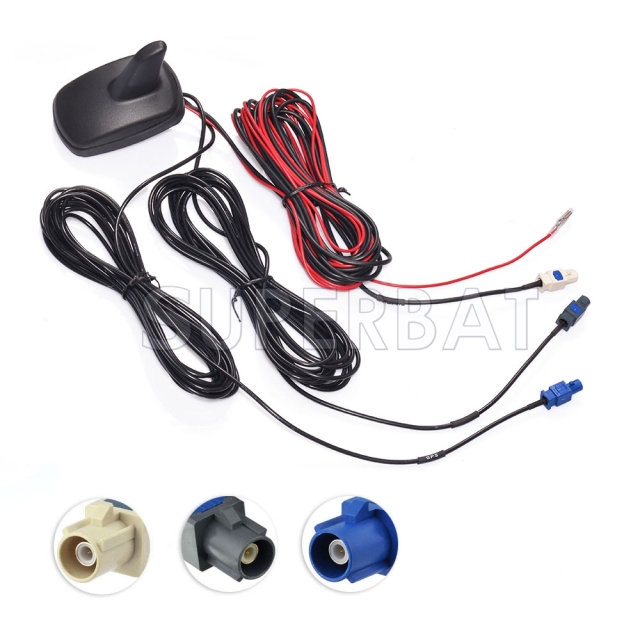

Package included:5m DAB/FM Car Aerial GPS
Advantages:
Very neat and stylish.

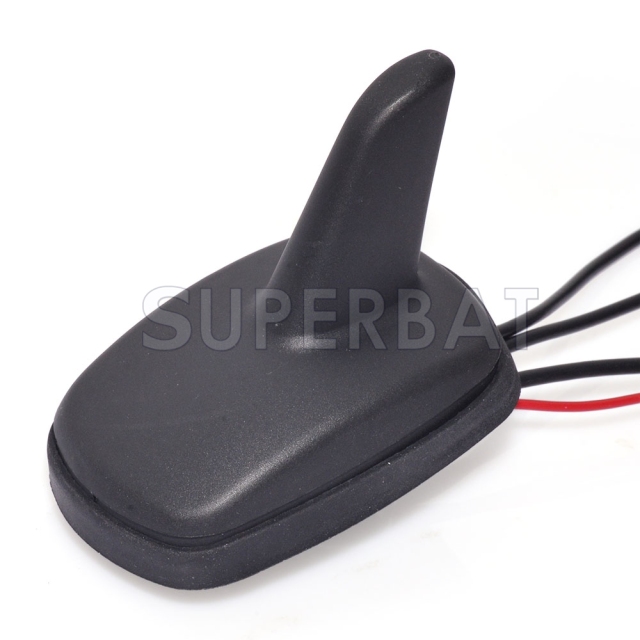

Roof mount DAB car radio aerial.
No need to unscrew mast for carwash, etc.
Can also be fitted to wing, boot lid etc. (at slight expense of performance)
Vandal resistant.
Amplified
Listing Suitable for the following DAB radios：
Alpine Ezi-DAB
pure Highway 300Di
Cautions:
DAB / FM / GPS only.
FM reception good, but not up to a top quality, full rod aerial.
Not designed for AM reception; will nevertheless receive strong MW signals.

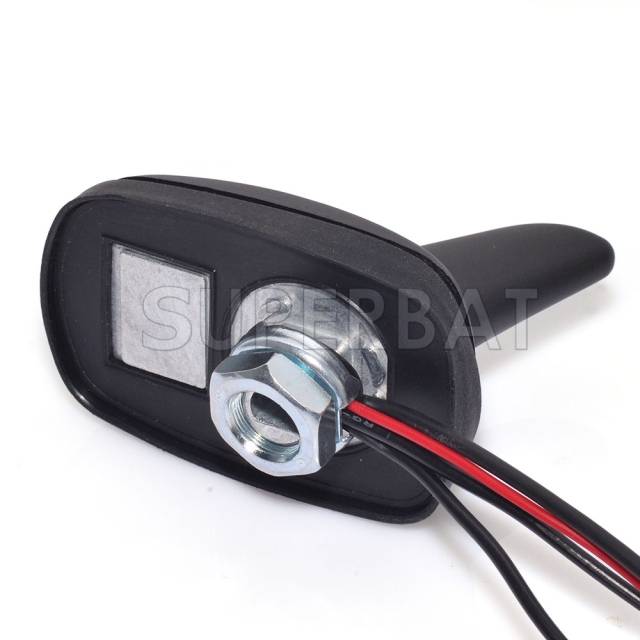

Mounting surface must be flat to within 1.5mm.
Must not be mounted on a panel whose underside is exposed to the elements.
Max panel thickness: 2.5mm
