Specifications:
DAB
Frequency:174MHz～240MHz (Band III) 1452MHz～1492MHz (L-Band)
Impedence :50 Ω
Amplification：20dB
VSWR:≤2.0:1
Connector :Fakra“G” Male
power supply:+12v
Cable:30cm RG174
Aerial Replacement Cable :Fakra-SMA RG174 5m
GPS
Frequency:1575.42MHz
Impedence :50 Ω
Amplification:28±3db
VSWR:≤1.5:1
Gain:32dbi
Connector: FAKRA“C” Male
Cable:30cm RG174
Aerial Extension Cable :Fakra-Fakra RG174 5m
FM
Frequency: 87.5-108 MHz
Impedence : 50 Ω
Amplification:20dB
VSWR:≤2.5:1
Connector:FAKRA“B” Male
power supply:+12v
Cable:30cm RG174
Aerial Replacement Cable :FARKA-DIN RG174 5m
Voltage : 12v direct feed for both DAB an FM
Current Consumption : 50mA

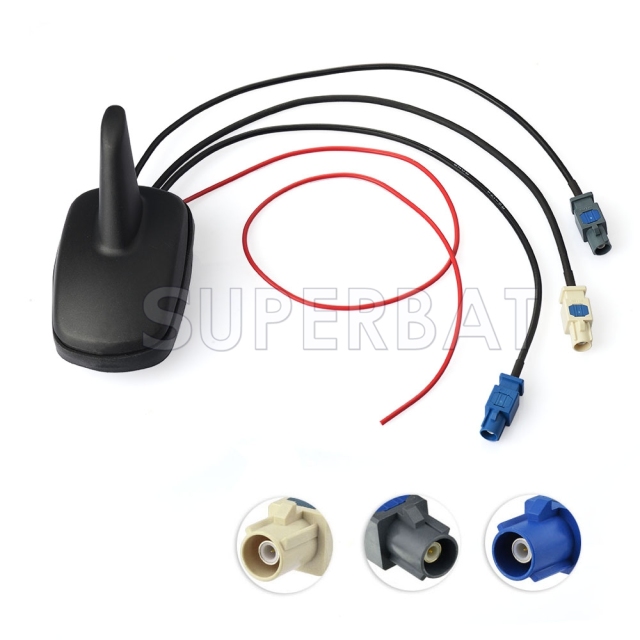

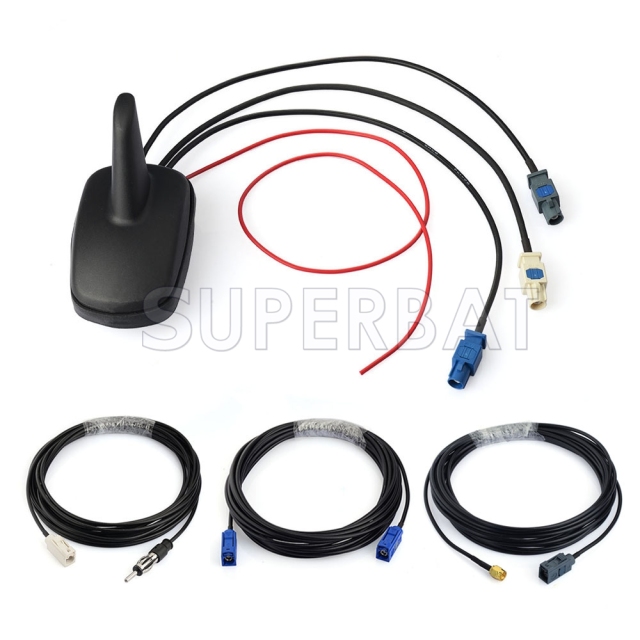

Package included:1pca DAB/FM/GPS Amplified aerial

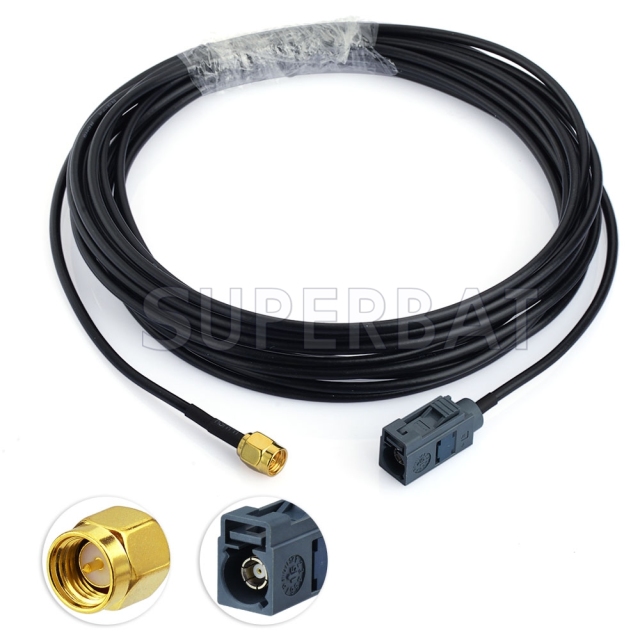

1pcs Fakra to SMA 5m Aerial Replacement Cable

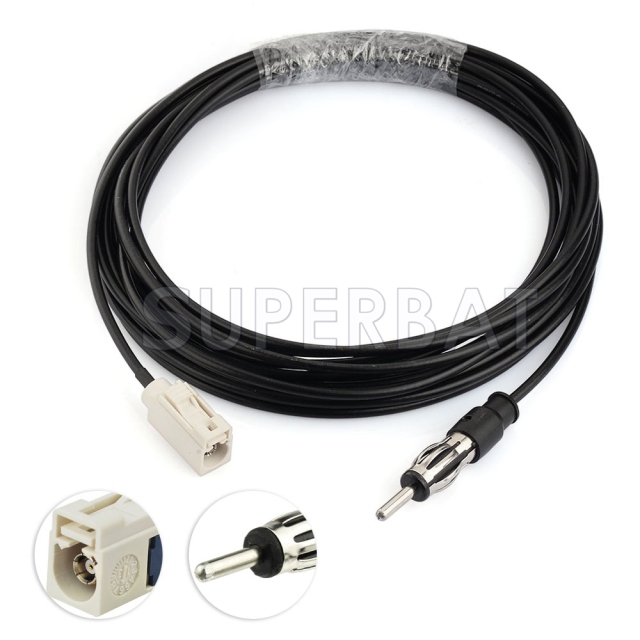

1pcs Fakra to DIN 5m Aerial Replacement Cable

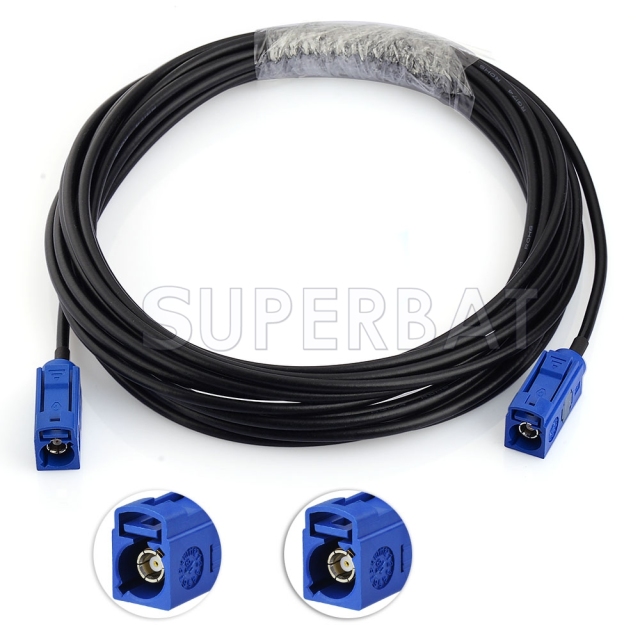

1pcs Fakra to Fakra 5m Aerial Extension Cable
Advantages:
Very neat and stylish.
Roof mount DAB car radio aerial.
No need to unscrew mast for carwash, etc.
Can also be fitted to wing, boot lid etc. (at slight expense of performance)
Vandal resistant.
Amplified
Listing Suitable for the following DAB radios：
AutoDAB All models
Beat 400 485
Clarion DAB302E
Connects 2 CTDAB-2
Dual DAB CAR1
Goodmans GFMTDBA10
In-Phase All in- car DAB except ProDAB
Alpine Ezi-DAB
pure Highway 300Di
Cautions:
DAB / FM / GPS only.
FM reception good, but not up to a top quality, full rod aerial.
Not designed for AM reception; will nevertheless receive strong MW signals.
Mounting surface must be flat to within 1.5mm.
Must not be mounted on a panel whose underside is exposed to the elements.
Max panel thickness: 2.5mm
