Frequency :
5G:700~2690/3300~5000MHz
5G2:1710~2690/3300~5000MHz
Gain:
5G：-6.48~2.91 & -2.03~4.40 dBi
5G2：-3.70~3.74 & -1.38~3.73 dBi
Impedance: 50Ω
Polarization type: linear

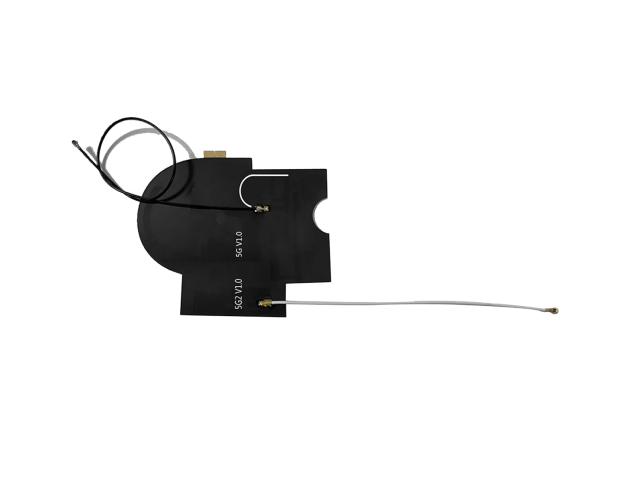

The 5G built-in antenna is widely used in the monitoring field and is a specially designed antenna product for high-performance ball machine monitoring equipment. With its powerful communication ability, highly integrated design, and built-in characteristics, the antenna has become an important component of modern intelligent monitoring systems.
Suitable for: smart cities, industrial automation, robots, emergency communication, traffic management, etc., especially in the field of security monitoring with excellent performance
• Wide coverage
Dual 5G support, wider frequency bands and stronger signal penetration ability, ensuring stable connections even in complex environments.
• Low latency communication
5G significantly reduces network latency and can quickly transmit information and respond in the fields of traffic management and public safety monitoring.
• High speed data transmission
Utilizing the high-speed characteristics of 5G networks, it is possible to achieve ultra high speed data transmission
| Electrical/mechanical parameters: | |
| Frequency Range: | 5G:700~2690,3300~5000MHz/5G2:1710~2690,3300~5000MHz |
| VSWR: | <5 |
| Input Impendence: | 50Ω |
| Gain: | 5G：-6.48~2.91 & -2.03~4.40 dBi/5G2：-3.70~3.74 & -1.38~3.73 dBi |
| Polarization: | linear polarization |
| Working Temperature: | -20 °C to +70°C |
| Efficiency: | 5G：8.58~51.48 & 13.96~51.89 %/5G2：9.16~28.27 & 19.97~45.97% |
| Power Capacity: | 33 dBm |

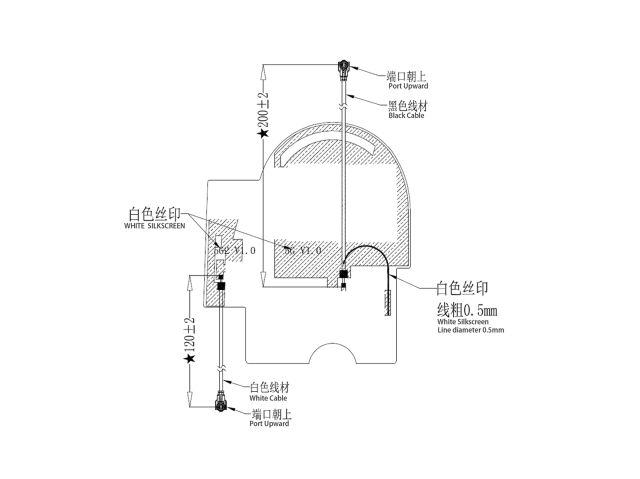

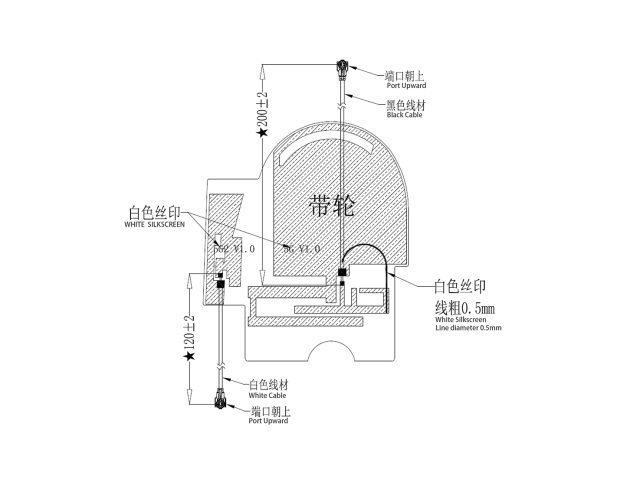

| Connectors and cables: | IPEX, coaxial cable with a diameter of 1.13mm(Customizable) |
| Radiation direction: | omnidirectional |
| Environmental protection: | ROHS |
