Product Description:

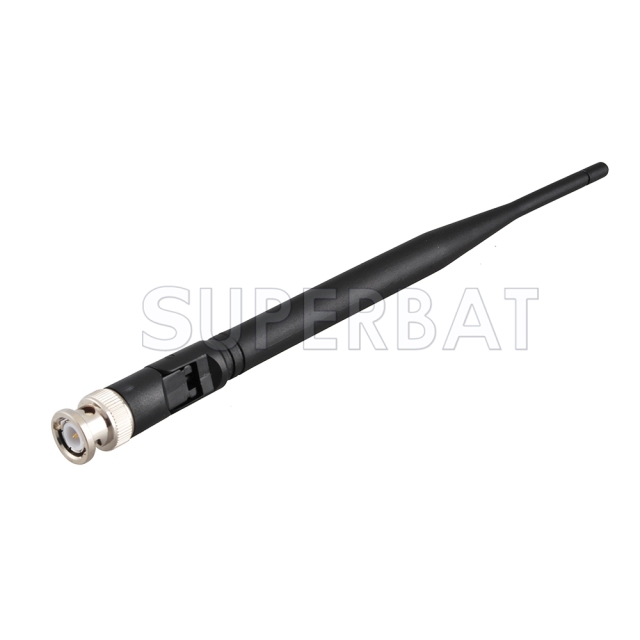

This compact 433Mhz omni-directional "rubber-duck" GSM antenna provides broad coverage and 3dBi gain.
It is a coaxial sleeve design with an omni-directional pattern.

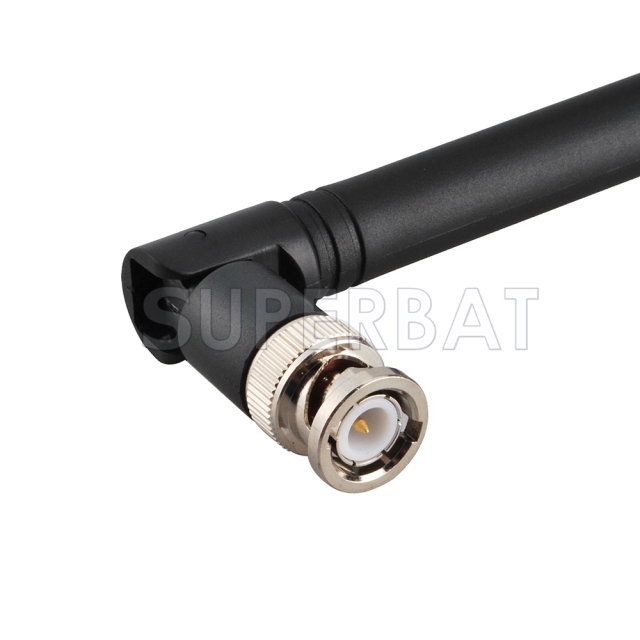

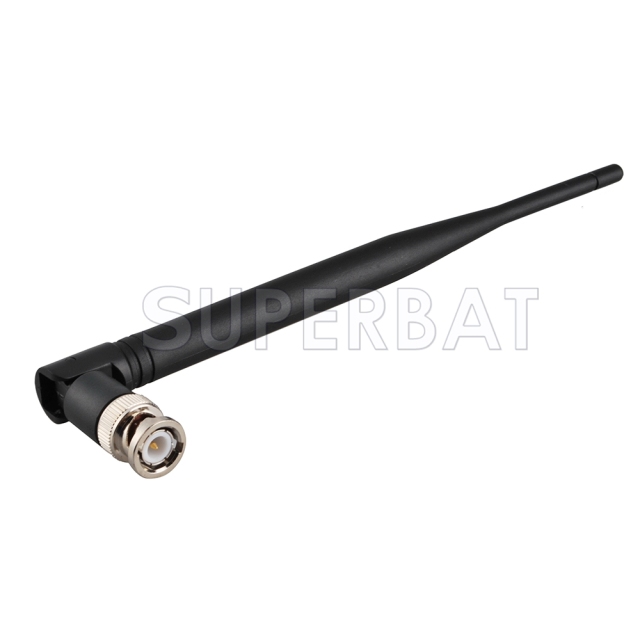

This flexible antenna features a tilt-and-swivel BNC male connector, allowing them to be used vertically,at a right angle, or any angle in-between. It is suitable as a replacement RF antenna for many access points and radios that are equipped with BNC male connectors including mobile, GSM wireless pay phone, fixed commercial phone, PCMCIA card, navigation device, vehicle wireless device, etc.
Product feature:
1. 3DBi 433Mhz UHF Antenna BNC Plug
2. Easy Installation and Configuration.
3. Connector: BNC Male
4. Used for EzUHF receivers and any other compatible device with BNC connector
Specification ：
Frequency:433MHz
VSWR :≤2
Gain:3dBi
Connector: BNC Plug Tilt and swivel design
Housing : Black
Polarization: Vertical
Directionality: omnidirectional
Nominal Impedance : 50 Ω
Diameter: 12mm
Length: 215mm
weight:30g
Compatible Radio Models:
Scanner Receiver, Handheld Receiver with BNC Female Antenna Mount and use with BNC Male Antenna
Alinco DJ-X10T, DJ-X2000T
Icom IC-R10, IC-R20
Uniden BC72XLT, BC75XLT, BC92XLT, BC95XLT, BC125AT, BC246T, BC296D, SC230
